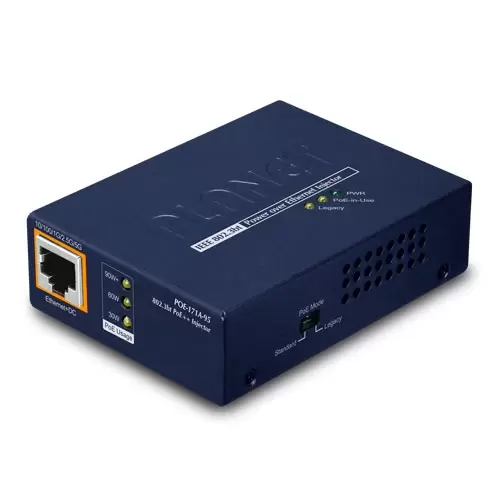

Planet - POE-171A-95 - Single-Port Multi-Gigabit 802.3bt PoE++ Injector
Product Overview
The Planet POE-171A-95 is a single-port multi-gigabit 802.3bt PoE++ injector delivering up to 95W power output with 10M/100M/1G/2.5G/5G data rates, supporting 802.3bt Type-4, UPoE, and Legacy/Force modes. Features 4-pair power delivery (End-span + Mid-span) with up to 89.5W at 1m cable and 75W at 100m, PoE usage LEDs, external AC-to-DC adapter included, and compact metal case.
Key Configuration

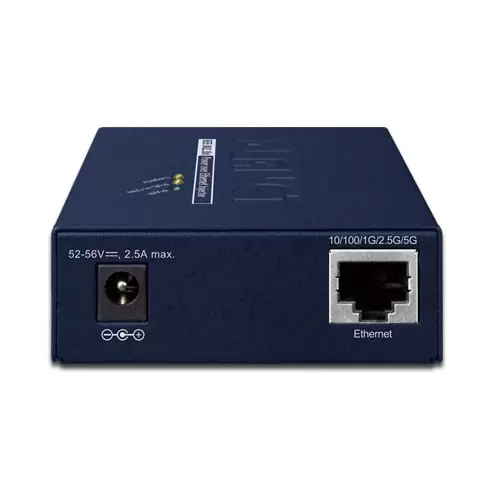

• Interfaces: 1 × RJ45 Data In, 1 × RJ45 PoE Out (Data+Power), 1 × DC input socket (52-56V DC)
• PoE standard: 802.3bt Type-4, UPoE, Legacy/Force modes
• Power output: 52-56V DC, up to 95W via 4-pair; 89.5W at 1m, 75W at 100m
• Data rate: 10M/100M/1G/2.5G/5Gbps
• Power input: 52-56V DC, 2.5A max; consumption: 130W max
• Dimensions: 94 × 70.3 × 26.2 mm; weight: 250g
Key Features
This TAA-compliant injector handles a 5Gbps multi-gigabit data pass-through over 4-pair UTP cabling (End-span pins 1/2-, 3/6+; Mid-span pins 4/5+, 7/8-) driven by dual PSE controllers. It delivers up to 95W within the 52–56V DC 802.3bt Type 4 window, which drops from 89.5W at 1m to 75W at 100m due to line resistance. Specialized hardware features include a "Legacy" mode for non-standard devices and an automatic "Force" backup mode supplying up to 60W.
Technical Context
Weighing 250g (0.55 lb) and measuring 94 × 70.3 × 26.2 mm, the unit has 6KV DC ESD protection and uses an included 100–240V AC to 52–56V DC (2.5A) external adapter with a 130W maximum draw to power a single device. It supports 1G/2.5G rates up to 100m on Cat5e/6/6A, but requires Cat6 or better for 5Gbps operation. Visual diagnostics rely on a 6-LED cluster (1 Green Power, 1 Amber PoE-in-Use, 1 Amber Legacy, 3 Amber PoE Usage indicators).
Installation Notes
The FCC Class A/CE certified hardware operates from 0–50°C (5–90% non-condensing humidity) and stores at -10–70°C. For unpowered downstream hardware requiring 12V, 19V, or 24V DC, it can be combined with a separate Planet POE-172S splitter.
| Hardware Specifications | |
|---|---|
| Interface | Input Port
Output Port DC Socket |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A 5G: 4-pair UTP Cat. 6, 6A |

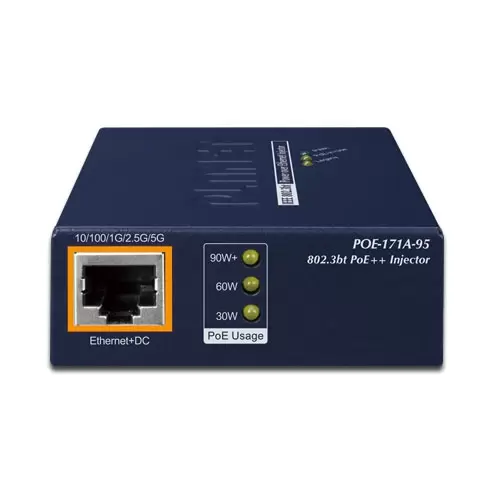

| LED Indicators | System: Power x 1 (Green) PoE Port: PoE-in-Use x 1 (Amber) Legacy mode: Legacy x 1 (Amber) PoE Usage: PoE Usage x 3 (Amber) |
| Data Rate | 10M/100M/1G/2.5G/5Gbps |
| ESD Protection | 6KV DC |
| Enclosure | Metal case |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 250g |
| Power Requirements | DC 52~56V, 2.5A max. |
| Power Consumption | 130 watts max. |
| No. of devices that can be powered | 1 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at/bt PSE |
| PoE Power Output Budget | DC 52~56V / 95-watt PoE via 4-pair |
| PoE Power Output | Max. 89.5W@1m cable Max. 75W@100m cable |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| PoE Mode | Standard mode Legacy and Force modes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3bt 4-pair Power over Ethernet Type 4 IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Standard Accessories | |
| Package Contents |
|
