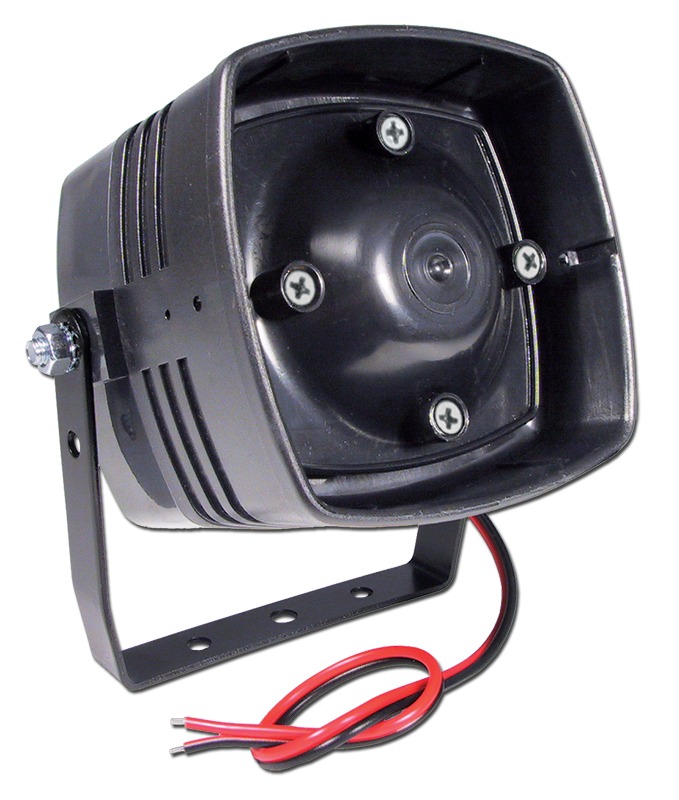

ELK - 45 - Siren, Self-Contained, Heavy Duty

Part number:
45
Price:

The ELK-45 is a loud self-contained electronic siren in a compact and attractive housing. This siren draws less current than many competitive units and features the ability to produce two distinct sounds from a single input trigger. The ComboTrigger option allows controls which have a single alarm output and pulsing option to activate both the burglar and fire alarm sounds.



Features:

  • Installer Friendly - Easy To Mount - Exterior / Interior use
  • Compact - Less Noticeable
  • ComboTrigger For Single Outputs
  • Pre-Wired For Easy Installation
  • Removable "U" Shaped Mounting Bracket
  • Lifetime Limited Warranty



Additional Details:

The ELK-45's removable "U" shaped mounting bracket makes installation quick and simple. It's small and compact size allows it to be placed in vents, attic eaves and soffits, and other unique locations where large and bulky units will not fit.



Whats Included:

  • ELK-445 Siren
  • "U" Bracket with mounting hardware
  • Instructions
Specifications
Operating Voltage6 to 14 Volts DC
Current Draw1.2 Amps
Sound Level118 db @ 1 meter, 14 vdc
Size4.4" x 3"x 1.15
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Instructions
0.1mb
