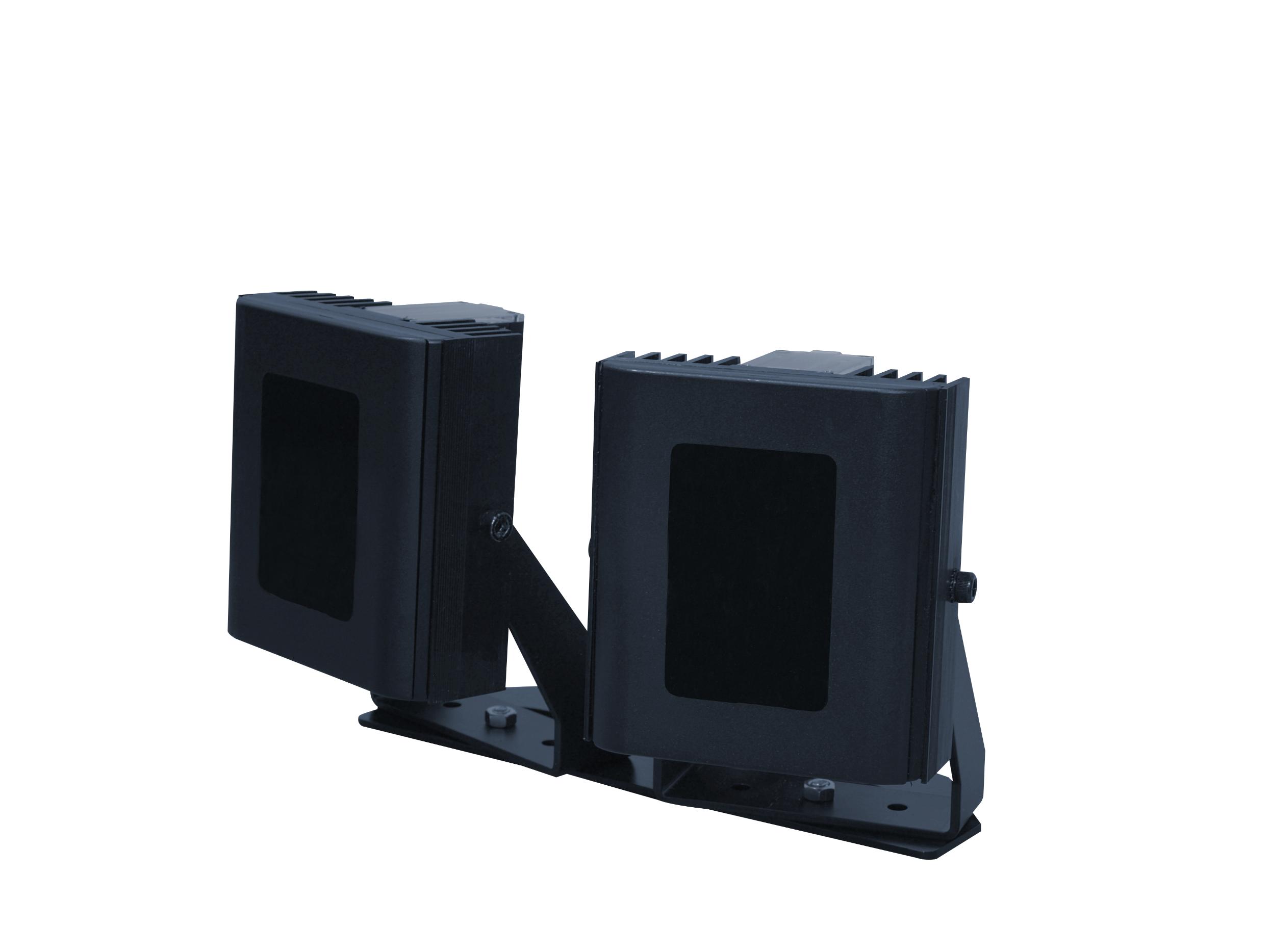

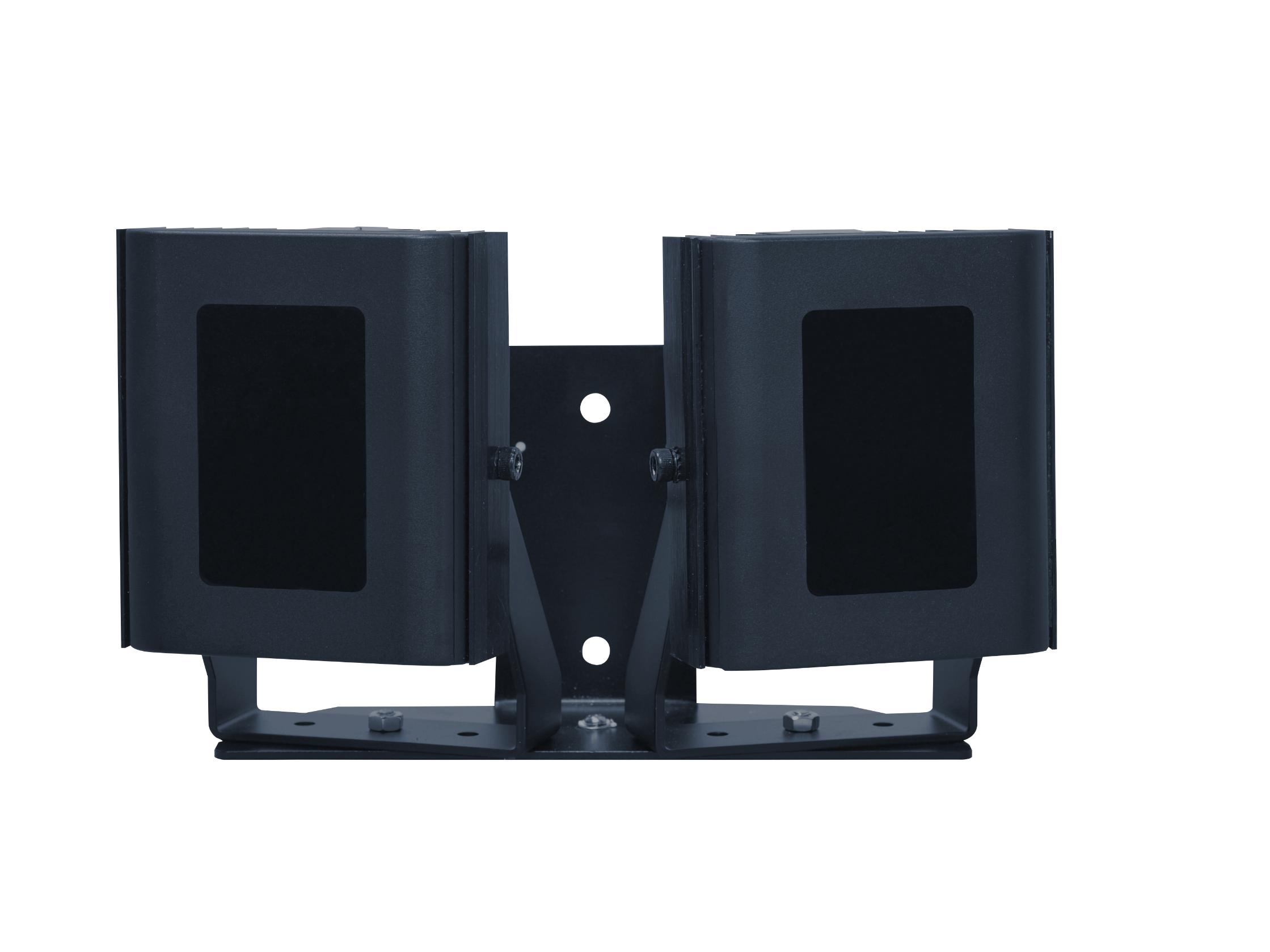

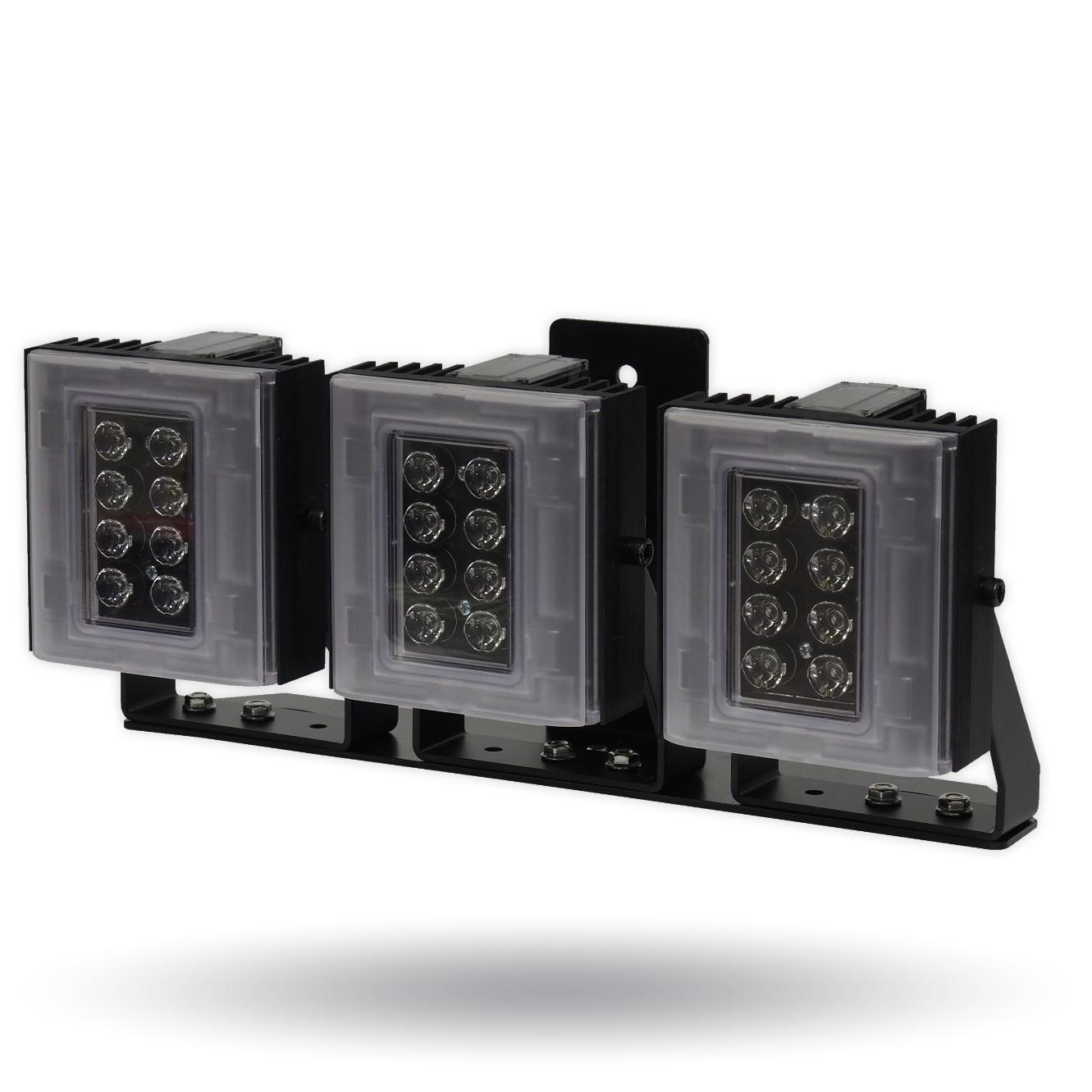

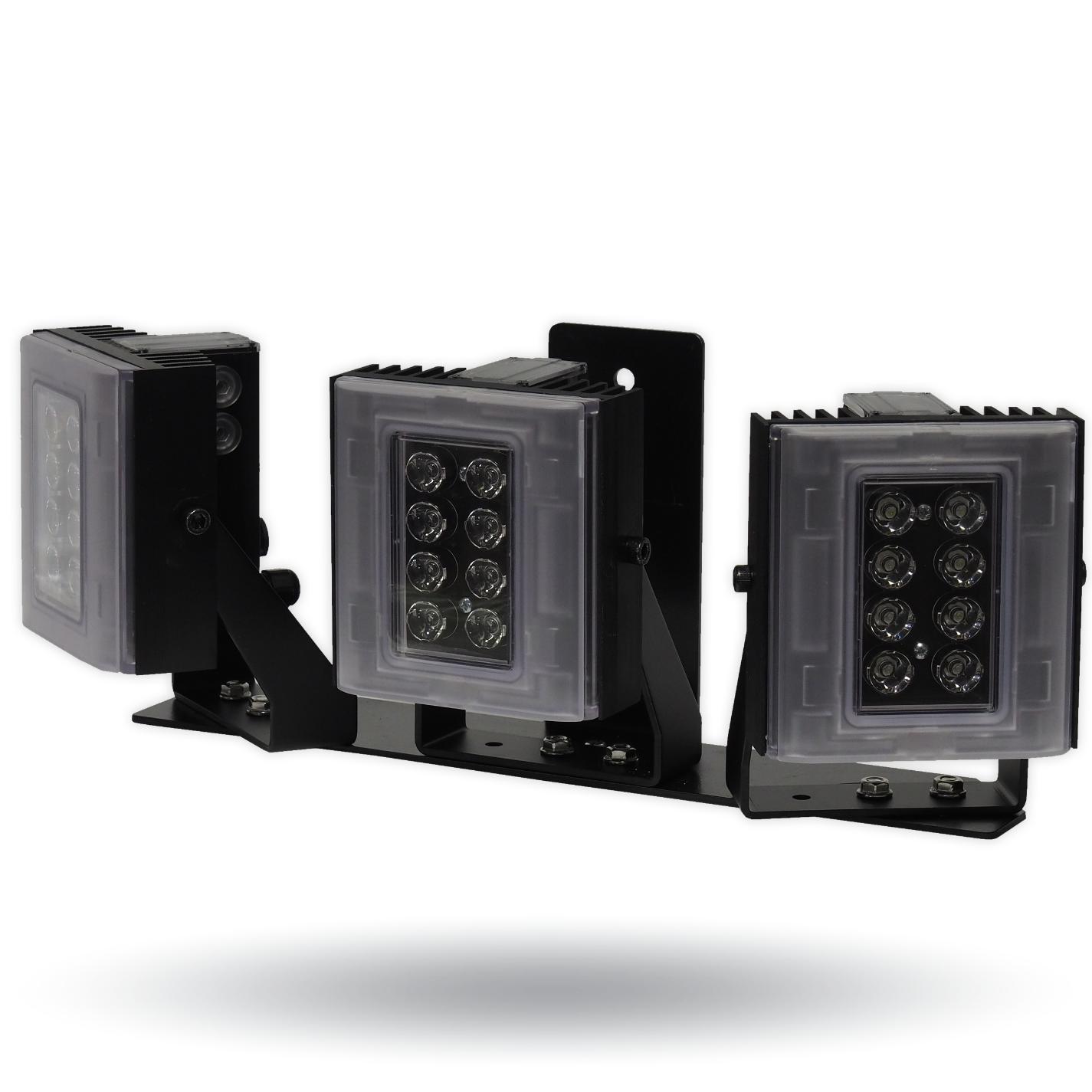

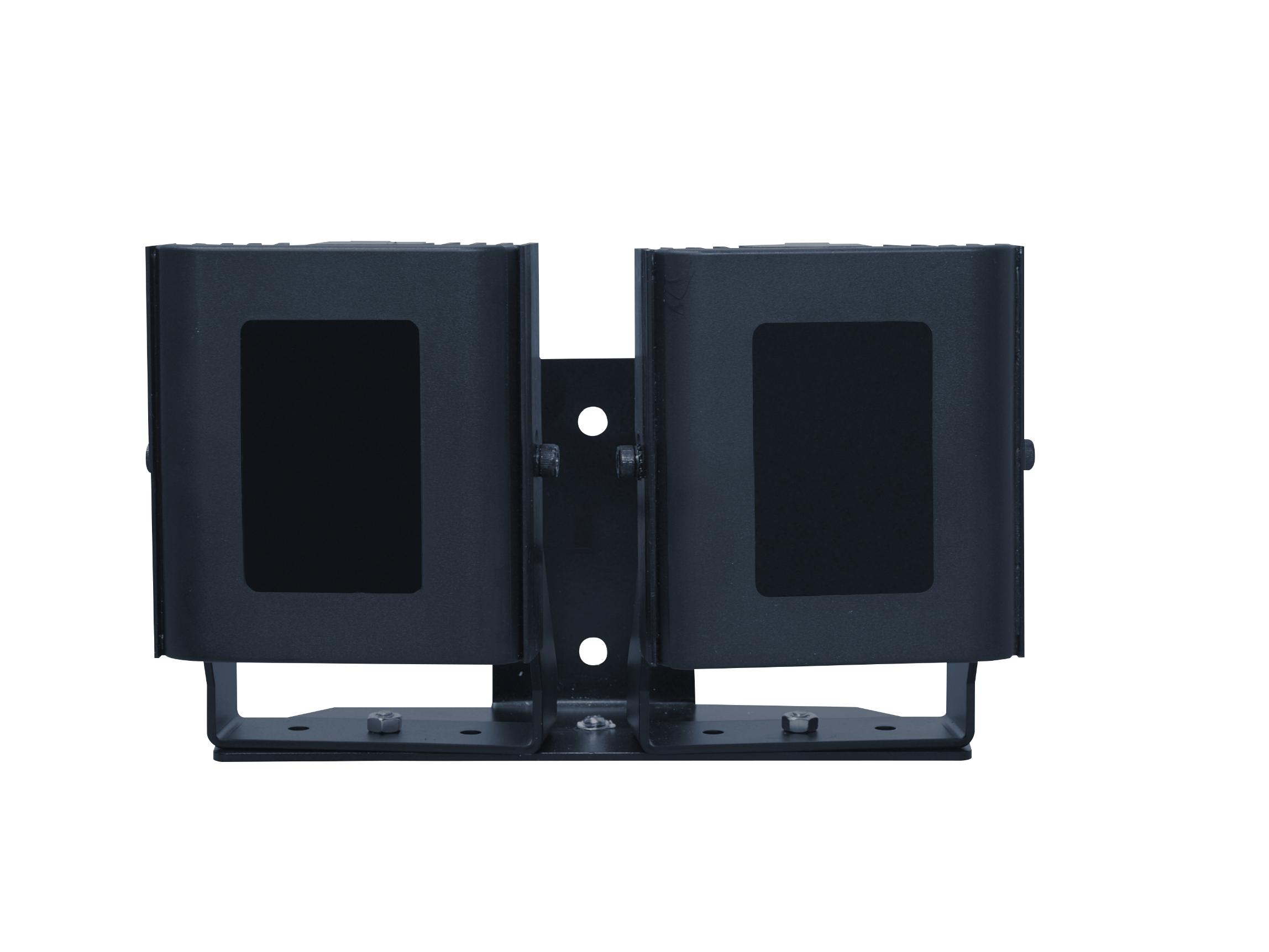

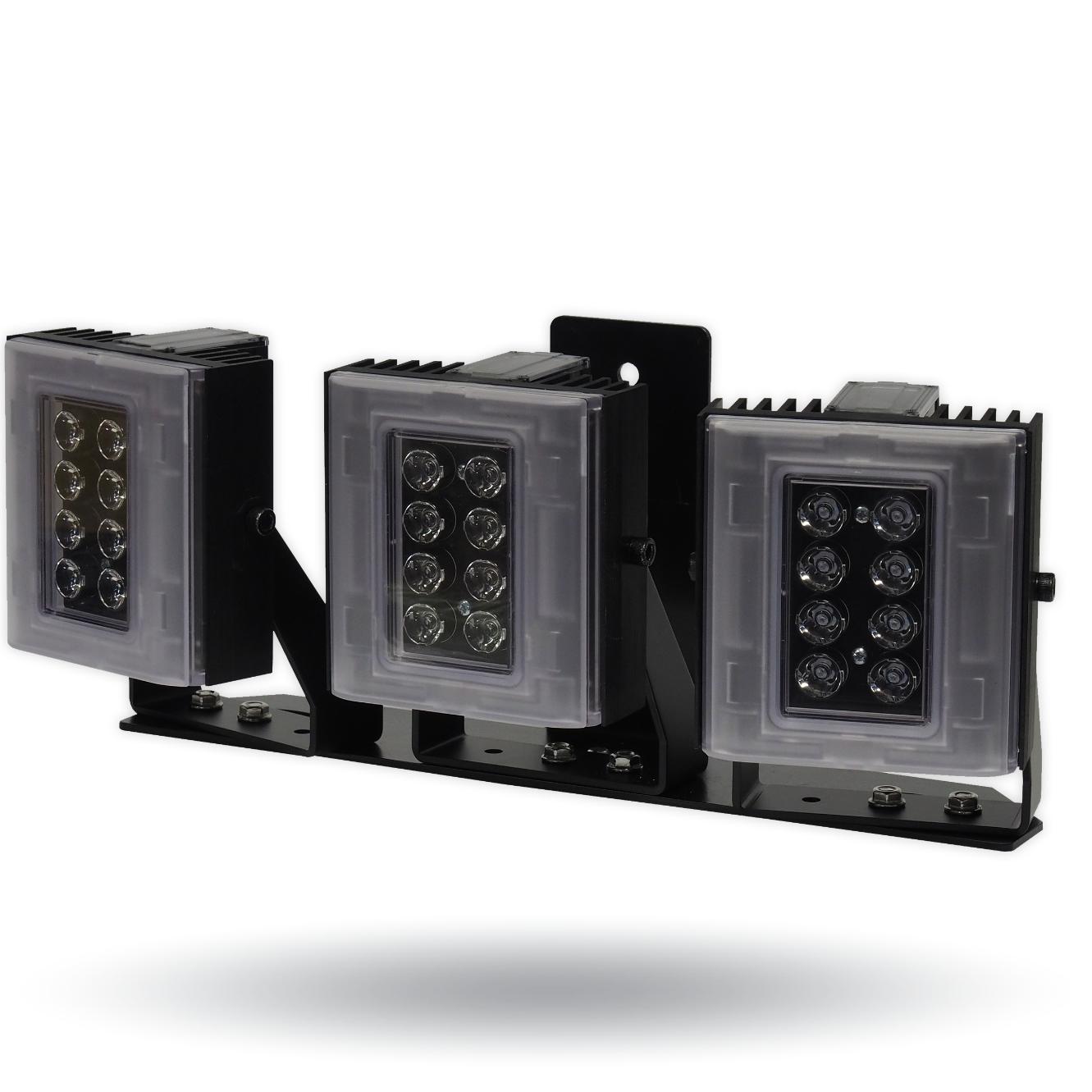

High Performance White light Illuminator, High Power Dual Core LEDs, with 374' coverage distance. Interchangeable lens packs to deliver a variety of angles out of the box. Built in web browser interface for easy setup, adjustable photocell and illumination levels with direct Integration with DW Spectrum IPVMS, IP66, IK09, 2 Year Warranty.
SiteWatch perimeter protection
Combine the motion detectors, illuminators and horn speaker to react to events in real-time and enhance the camera’s recordings, all controlled via DW Spectrum IPVMS.
Amplify panoramic surveillance
Combine detectors and illuminators with MEGApix Pano multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.
Interchangeable lens diffuser kit
Each SiteWatch illuminator is supplied with an interchangeable lens diffuser kit, allowing installers to easily change the angle of illumination and align perfectly with the camera’s field of view.
Features:
- White light LED illuminator
- Interchangeable lens pack to deliver a variety of angles out of the box
- Create different elliptical beam profiles
- Coverage distance up to 374’ (115m).
- Configure lights to switch on when motion is detected (detector required)
- Activate white light to deter intruders
- Adjustable photocell and illumination levels
- Visible spectrum wavelength (400- 750nm)
- Web interface built-in
- High-power Dual-Core LEDs, with advanced, current limited, integral control circuitry
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 09-rated impact-resistant
| Specification | |
|---|---|
| VMS features | |
| Color rendering index (CRI) | Typically 80 |
| Color temperature | 5700K (6000K and 6500K options available to order) |
| Electronics | High efficiency surface mount high power Dual-Core™ LEDs with advanced, current limited, integral control circuity. |
| Illumination | Adjustable 10% - 100% |
| Lumen output | 2400 lm |
| Performance Remote software | DW Spectrum® |
| Performance Web viewer | Internet Explorer® browser No software or installation needed Web browser user interface Windows OS |
| Photocell | Adjustable 20 - 70 lux |
| Electrical | |
| Power Consumption | 26W |
| Power Requirements | PoE |
| General | |
| Housing | Robust high-quality aluminum extrusion |
| IK rating | IK09 impact-resistant in accordance with IEC/EN 62262 |
| IP rating | IP66-rated in accordance with IEC/EN 60529 |
| Mount | Powder coated stainless steel wall mount |
| Operating temperature | -58°F to 122°F (-50°C to 50°C) |
| Recommended PSU | Any IEEE 802.3at injector (not included) |
| Recorder Dimensions (H X W X D) | 4.33" x 4.48" x 3.07" (110 x 114 x 78mm) |
