Product Overview

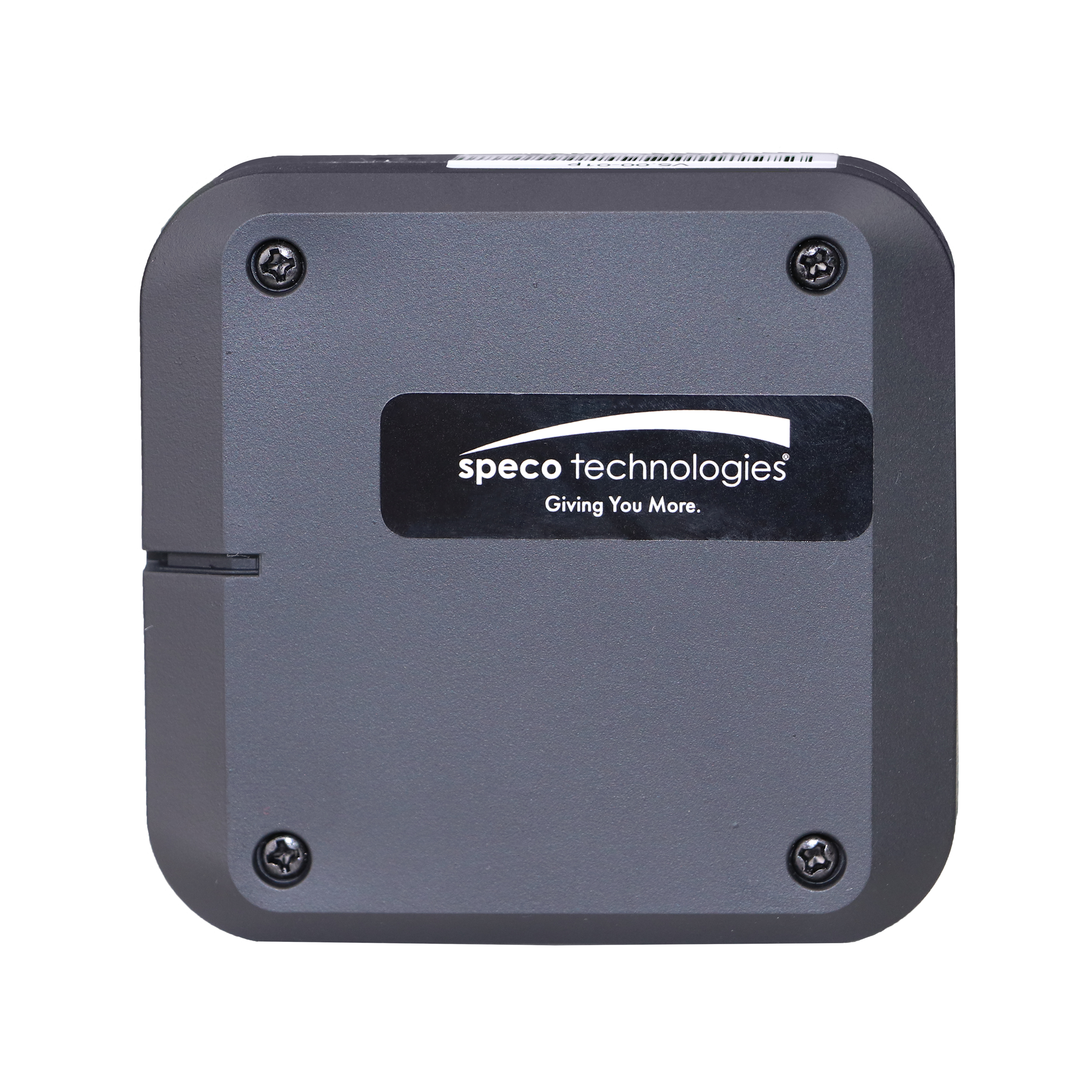

The Speco A1 is a single-door access controller from the Speco Access range. It is managed from a browser with no client software to install, runs an embedded Linux operating system, and is ETL-listed in accordance with the UL-294 standard for Access Control System Units. It carries a 5-year warranty.
Key Configuration
Model: A1 | Capacity: 1 door | Management: Browser-based, works in all browsers | Operating System: Embedded Linux | Protection: ETL-listed to UL-294; NDAA Section 889 Part B compliant
Key Features
- · Out of the box ready, browser managed
- · Available on all browsers
- · Embedded Linux operating system
- · ETL-listed (in accordance with UL-294 standard for Access Control System Units)
- · 5 year warranty
Technical Context
Browser-based management removes the client-software step from commissioning: the controller serves its own configuration interface, so a laptop with any browser is enough to set up a door. The ETL listing against UL-294 matters where the installation must satisfy an authority having jurisdiction, since UL-294 is the standard access control equipment is judged against in North America.
Installation Notes
A separate power supply is required; Speco lists the PSDC24 against this controller. An installation manual, quick start guide and wiring diagram are published, along with the Speco Access user programming guide.
| System | |
| Doors | 1 |
| Management | Browser-based; no client software required |
| Operating System | Embedded Linux |
| General | |
| Warranty | 5 years |
| Certifications | |
| Listing | ETL-listed, in accordance with UL-294 for Access Control System Units |
| Compliance | NDAA Section 889 Part B compliant |
| Physical | |
| Dimensions | 3.2 x 3.0 x 1.3 in (81 x 78 x 32 mm) |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Physical measurements are published in the A1 Specification Sheet, not on the product page. | |
