Speco - AIIS07 - ndoor Monitor Station, Surface Mount, 2-Wire Intercom
Product Overview

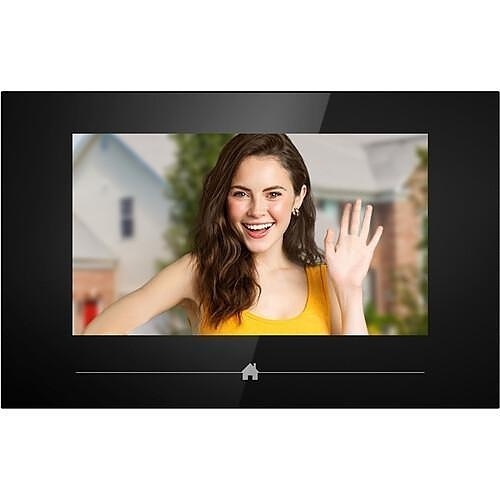

The Speco AIIS07 is a surface-mount indoor monitor station for 2-wire video intercom systems. It provides a 7-inch color touch display, two-way video and audio communication, outdoor-station monitoring, door-release control, and local photo or video recording.
Key Configuration
Model: AIIS07 | Product type: Indoor 2-wire intercom monitor | Display: 7-inch TFT LCD | Resolution: 800 × 480 | Power: 24-30V DC | Mounting: Surface mount | Storage: TF card, 2-32GB | Dimensions: 220 × 140 × 24 mm | Environment: Indoor
Key Features
- · Surface-mount indoor monitor for 2-wire intercom systems
- · 7-inch color TFT LCD touch display
- · 800 × 480 display resolution
- · Two-way video and audio intercom communication
- · Real-time monitoring from connected outdoor stations
- · Door release and unlocking control
- · Intercom between indoor monitors in one apartment
- · Supports up to four indoor monitors in one apartment
- · TF card expansion from 2GB to 32GB
- · Captures photos and records video locally
Technical Context
The AIIS07 serves as the resident-side endpoint in a 2-wire intercom system. It receives calls from connected outdoor stations, displays visitor video, enables two-way conversation, and provides local capture and recording functions when a TF card is installed.
Installation Notes
Install the monitor indoors using its surface-mount design and connect it to the 2-wire bus and a 24-30V DC supply. Add a compatible TF card for local photo and video storage, and configure the station with connected outdoor stations or additional indoor monitors.
| General | |
| Product Model | AIPK1 |
| Product Type | Single Door 2-Wire Video Intercom Kit |
| Kit Components | Indoor station, outdoor station, and power supply |
| Maximum Indoor Monitors | Up to 4 indoor monitors in one apartment |
| Communication | Two-way audio/video intercom |
| Features | |
| Weather Resistance | IP54 |
| Memory Card Slot | Supports SD cards up to 32GB |
| Local Storage | Stores up to 50 photos |
| Ringtones | 5 optional ringtones |
| Language Selection | Supported |
| Door Release | Supported |
| Inter-Monitor Intercom | Supported |
| Indoor Station | |
| Model | AIIS07 |
| Working Voltage | 24-30VDC |
| Current | 200mA at 30V |
| Resolution | 800 × 400 |
| Display | 7" color touch panel |
| Working Temperature | 14°F to 131°F |
| Functions | Touchscreen control, two-way communication, door release, and inter-monitor intercom |
| Outdoor Station | |
| Model | AIOS06 |
| Construction | Aluminum design |
| Protection Rating | IK07, IP54 |
| Camera Type | CMOS |
| Camera Resolution | 600 TVL |
| Viewing Angle | 90° horizontal |
| Minimum Illumination | 0.1 lux |
| White Balance | Automatic |
| Fill-In Light | Light-sensitive diode |
| Controls | Call button, adjustable speaker volume, adjustable unlock time, and electric strike connection |
| Power Supply | |
| Model | AIPS03 |
| Input Voltage | 110-240VAC |
| Input Current | 0.3A maximum |
| Input Frequency | 50/60Hz |
| No-Load Power Consumption | <0.5W |
| Working Efficiency | 85% typical |
| Output Voltage | 30VDC |
| Output Current | 0.6A maximum |
| Over-Current Protection | 0.8A-1.2A |
| Over-Heat Protection | Shutdown at 212°F ± 50°F |
| Short-Circuit Protection | Auto-recovery |
| Lightning Protection | L-N: 1kV |
| Working Parameters | |
| Working Voltage | 24-32VDC |
| Static Current | 20mA at DC 30V |
| Working Current | <100mA |
| Working Temperature | 14°F to 131°F |
| Storage Temperature | -13°F to 158°F |
| Working and Storage Humidity | 45%-90% |
| Physical | |
| Indoor Station Dimensions | 5.56" (L) × 8.69" (W) × 1" (D) |
| Outdoor Station Dimensions | 6.6" (L) × 3.4" (W) × 1.02" (D) |
| Power Supply Dimensions | 0.32" (L) × 3.54" (W) × 1.95" (D) |
| Certifications | |
| Certifications | FCC, RoHS |
