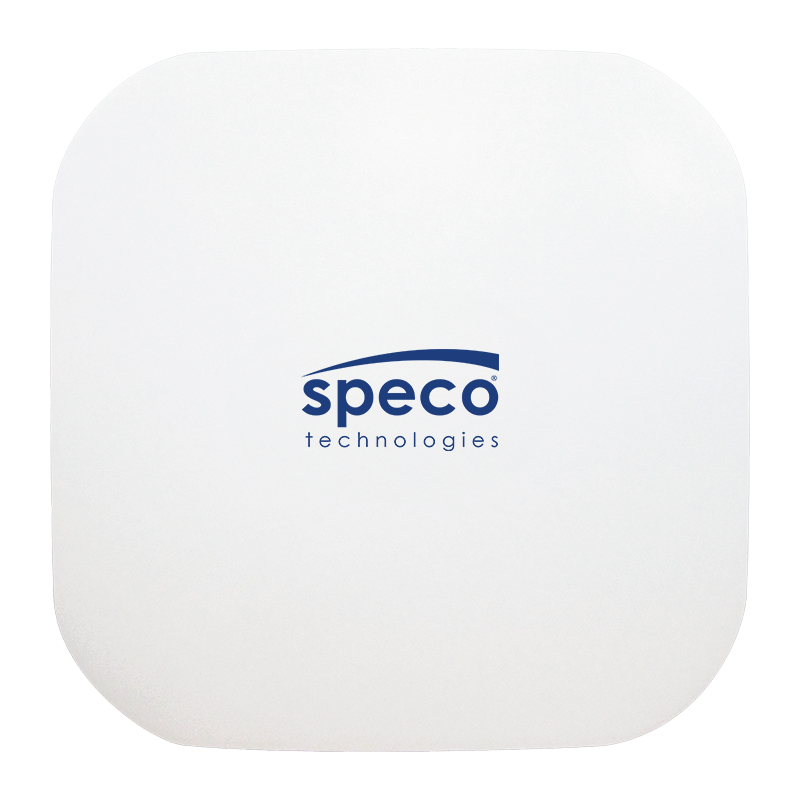

Speco - AP2PLR - 5.8 GHz Wireless Point to Point with DIP Configuration
Part number:
Price:
Product Overview
Wireless Link with DIP Configuration
Key Configuration
Model: AP2PLR
Key Features
- • Support DIP physical setting for simple configuration.
- • Easy installation, supports wall-mount and pole-mount.
- • Support PoE 24V power supply.
- • Support IEEE 802.11 a/n/ac protocol.
- • Wireless speed up to 867Mbps.
Installation Notes
Size: 8.07in x 8.07in x 5.21in
| Full Specifications | |
| Housing Color | White |
| Wired Port | 10/100/1000Mbps LAN*2 |
| Wireless Bridge | IEEE802.11a,IEEE802.11n,IEEE802.11ac, ,IEEE802.3u |
| Power | POE 24V 1A |
| 802.11a | Up to 54 Mbps |
| 802.11n | Up to 300 Mbps |
| Management | WEP Management |
| Encryption | WEP 64/128bits,WPA,WPA2,802.1x |
| Operating Temperature | -22F - 140F |
| Storage Temperature | -58F - 170F |
| Humidity | ≤95% (non-condensed) |
| Dimensions | Size: 8.07in x 8.07in x 5.21in |
Name
Description
Size
Downloads
File
User Manual
1.8mb
File
Quick Start Guide
0.7mb
File
Specification Sheet
0.3mb
