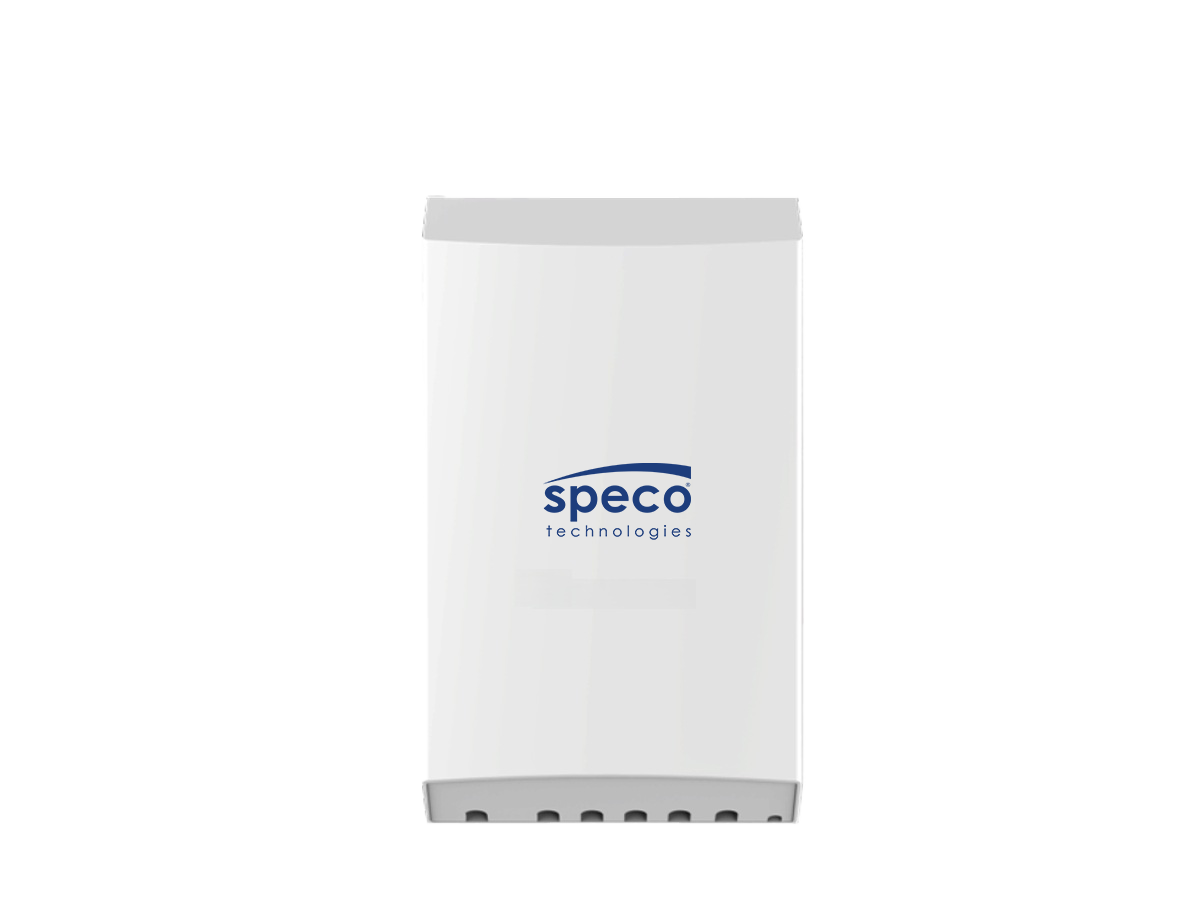

Speco - AP2PMD - 5.8 GHz Wireless Point to Point with Built-in PoE
Part number:
Price:
Product Overview
2-in-1 Wireless bridge and PoE switch, Wireless speed up to 300Mbps, 5.8G wireless bridge transmission distance can reach 1.5 miles in ideal conditions.
Key Configuration
Model: AP2PMD | 5*10/100Mbps RJ45 port | Supports DC 12-52V or POE 48-56V input | Supports RS-485 signal control | Supports IEEE 802.11 a/n protocol | Professional outdoor shell design, IP55 dustproof and water resistant protection level | Dual PoE Output
Key Features
- • 5*10/100Mbps RJ45 port.
- • Supports DC 12-52V or POE 48-56V input.
- • Supports RS-485 signal control.
- • Supports IEEE 802.11 a/n protocol.
- • Professional outdoor shell design, IP55 dustproof and water resistant protection level.
Installation Notes
Size: 8.98in x 5.31in x 1.69in
| Full Specifications | |
| Housing Color | White |
| Port | 5*10/100Mbps RJ45 Port (IEEE 802.3u) |
| Wireless Protocols | IEEE802.11n, IEEE802.11a |
| PoE Out | IEEE802.3af (15W), IEEE802.3at (30W) |
| Power | Power Input Voltage:DC 12-52V / POE 48-56V |
| 802.11a | Up to 54 Mbps |
| 802.11n | Up to 300 Mbps |
| Management | WEP Management |
| MAC Address Control | No, WEP Encryption 64/128bits, WPA,WPA2,802.1x |
| Operating Temperature | -22F - 140F |
| Storage Temperature | -58F - 170F |
| Humidity (non-condensed) | ≤ 95% (non-condensed) |
| Dimensions | Size: 8.98in x 5.31in x 1.69in |
