Speco - BRC6E - In-Ceiling Bracket for 6" Speaker (Pair)

Product Overview

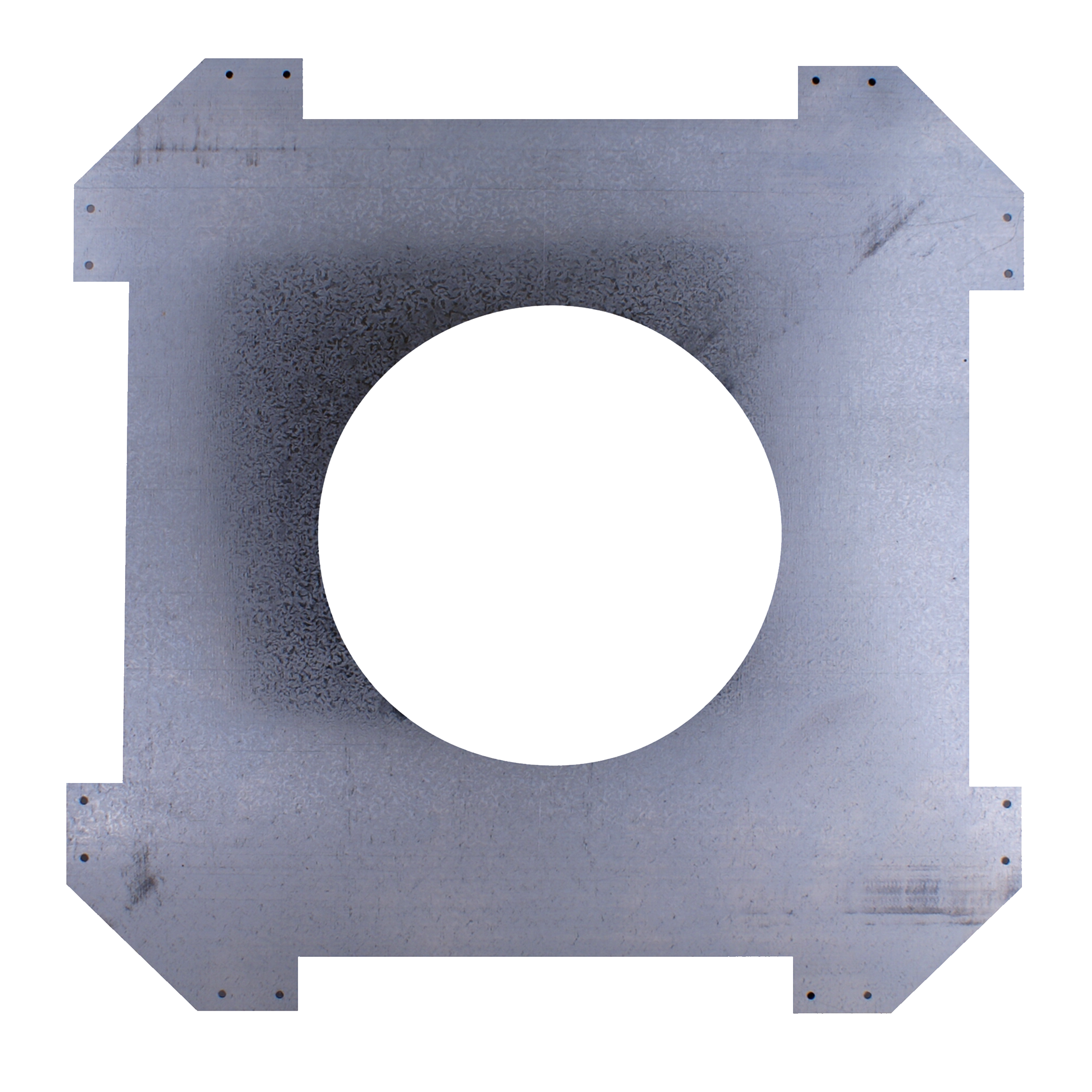

The Speco BRC6E is a pair of in-ceiling support brackets for 6" speakers, with a 10-5/8" cutout dimension. Each pair includes a 16-3/4" center support and two attachable 2 ft support rails. Speco lists it for use with the SPCE6T.

Key Configuration

Model: BRC6E | Configuration: In-ceiling support bracket, supplied as a pair | Cutout Dimension: 10-5/8" | Compatibility: SPCE6T | Protection: NDAA Section 889 Part B compliant

Key Features

• • Supplied as a pair.
• • Includes one 16-3/4" center support.
• • Includes two attachable 2 ft support rails.
• • For use with Speco SPCE6T.
• • NDAA-compliant.

Installation Notes

The brackets install into the ceiling void before the speaker, spanning joists via the two 2 ft rails and the 16-3/4" center support. Cut-out diameter is 10-5/8" — confirm it against the speaker being fitted, as the BRC series differs only in this dimension. A single tech manual covers the whole BRC bracket range.
