Speco - CBS4 - 10W 4" Deluxe Professional Communications Extension Speaker

Product Overview

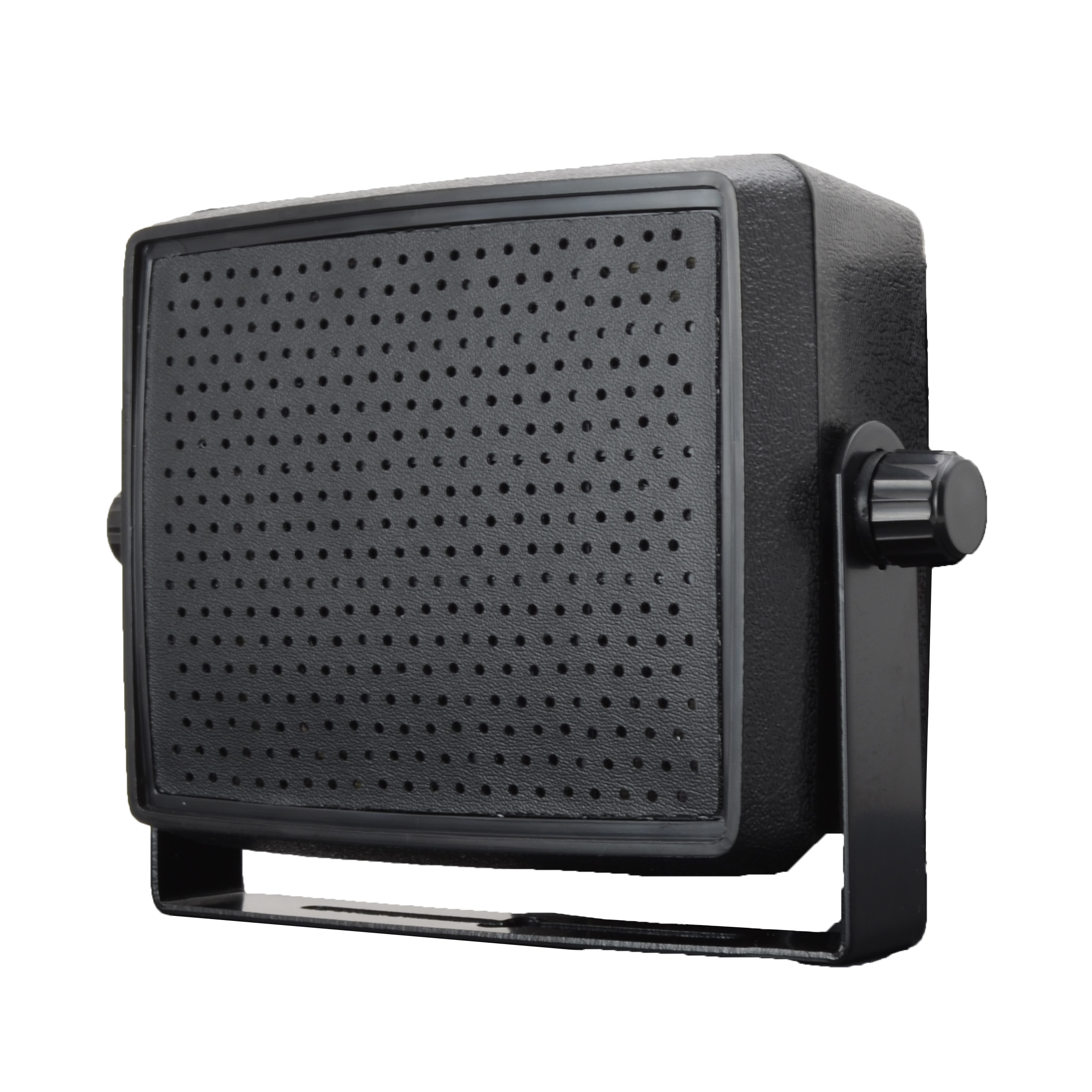

The Speco CBS4 is a 10 watt, 4" deluxe professional communications extension speaker in an ABS plastic enclosure with a soft padded grille and a swivel bracket that adjusts to all angles. Its controlled speech frequency response of 700 Hz to 2 kHz automatically limits background noise, making it suited to intercom and paging use rather than full-range music reproduction. It ships with a 10 ft cord terminated in a standard 3.5mm mini-plug, and is compliant with NDAA Section 889 Part B guidelines.

Key Configuration

Model: CBS4 | Capacity: 10 W at 4–8 ohms | Driver: 4" with soft padded grille | Connectivity: 10 ft cord with standard 3.5mm mini-plug | Protection: ABS plastic enclosure; NDAA Section 889 Part B compliant

Key Features

• • Swivel bracket for all angles.
• • ABS plastic enclosure.
• • Soft padded grille.
• • Complete with 10 ft cord with standard 3.5mm mini-plug.
• • Controlled speech frequency response (700 Hz – 2 kHz) automatically limits background noise.

Technical Context

The controlled 700 Hz to 2 kHz frequency response is a deliberate restriction to the speech band. By rolling off everything below and above intelligible voice, the speaker automatically suppresses low-frequency rumble and high-frequency hiss from the surrounding environment, which raises intelligibility in noisy locations. This is what separates a communications extension speaker from a general-purpose one — it is not a full-range specification and the unit is not intended for music.

Installation Notes

The enclosure measures 4.5" (H) x 5.5" (W) x 2.5" (D) and mounts on a swivel bracket that adjusts to all angles. A 10 ft cord terminated in a standard 3.5mm mini-plug is supplied, fixing the distance to the source unless extended. The soft padded grille protects the driver in accessible positions.
