Speco - CVC605CMT5 - Multi-format HD Analog Corner Mount Camera
Part number:
Price:
Product Overview

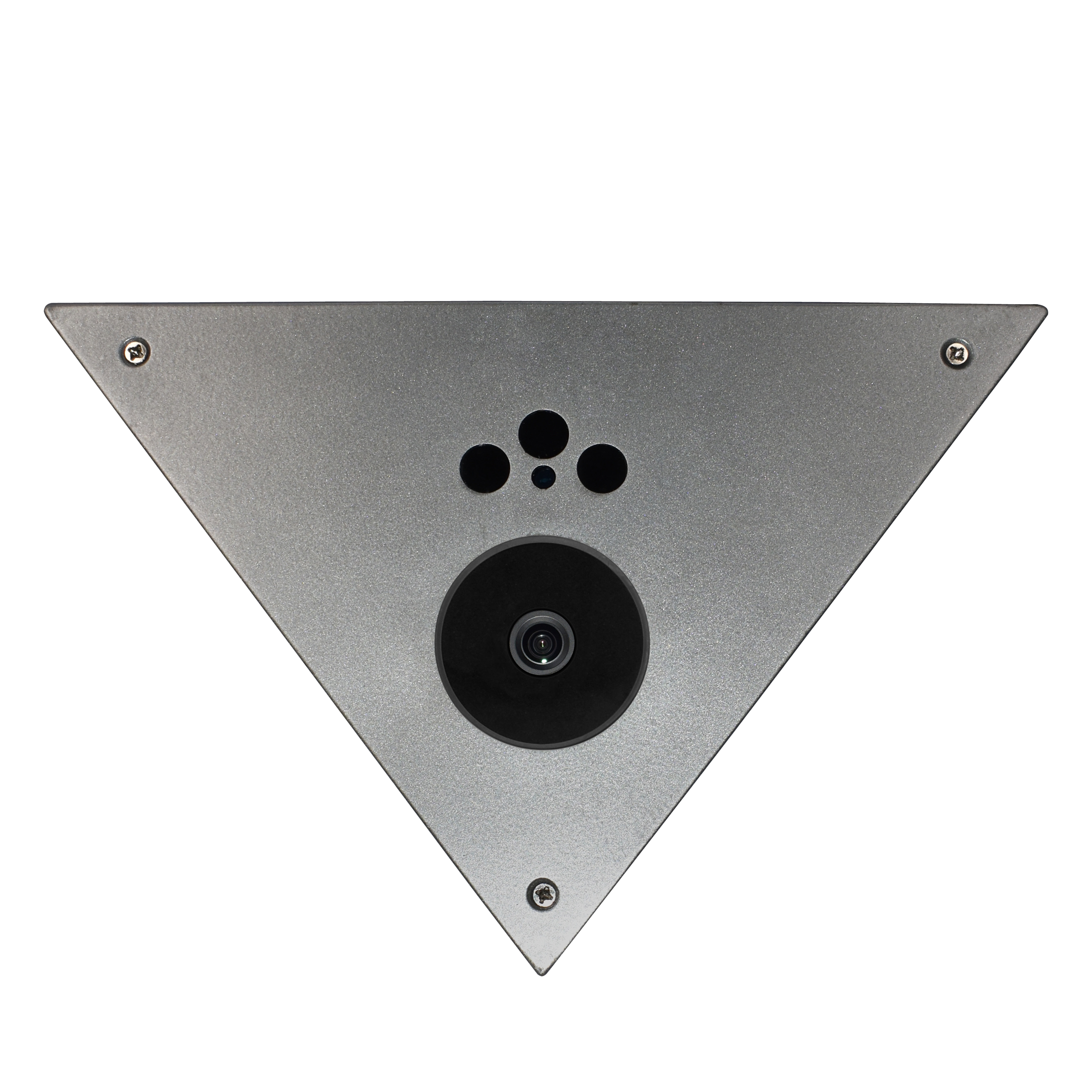

The CVC605CMT5 is a Multi-format HD Analog Corner Mount Camera with a 3.6mm fixed board lens and stainless steel housing.
Key Features
- • Full HD resolution over coax (HD-TVI).
- • Perfect for elevators, hallways, etc.
- • Full OSD operation via UTC (TVI).
- • Supports HD-TVI, CVI, AHD, 960H.
- • Signal distance up to 1600 ft. (depending on coax quality).
- • 12VDC operation (power supply not included).
- • 5 year warranty.
- • NDAA Section 889 Part B compliant.
| Image and Video | |
| Image Sensor | 1/2.8" 5MP CMOS |
| Resolution | 2688 × 1944 |
| Minimum Illumination | 0 lux with 3 IR LEDs on |
| Scanning System | Progressive |
| S/N Ratio | >54dB |
| Video Output | HD-TVI, CVI, AHD, 960H |
| Day/Night | Auto / Color / B&W / EXT |
| White Balance | Supported |
| Brightness | 0-20 |
| DWDR | On |
| Sens-Up | On |
| Backlight Compensation | On |
| Communication | UTC |
| IR Distance | Approximately 32ft |
| Electrical | |
| Power Supply | 12VDC Power supply not included |
| Power Consumption | 12VDC, 70mA |
| Environmental | |
| Operating Temperature | -22°F to 140°F |
| Operating Humidity | 20%-80% RH |
| Storage Temperature | -22°F to 140°F |
| Physical Characteristics | |
| Dimensions | 9.3" (W) × 6.7" (H) |
| Weight | 2.21lbs |
