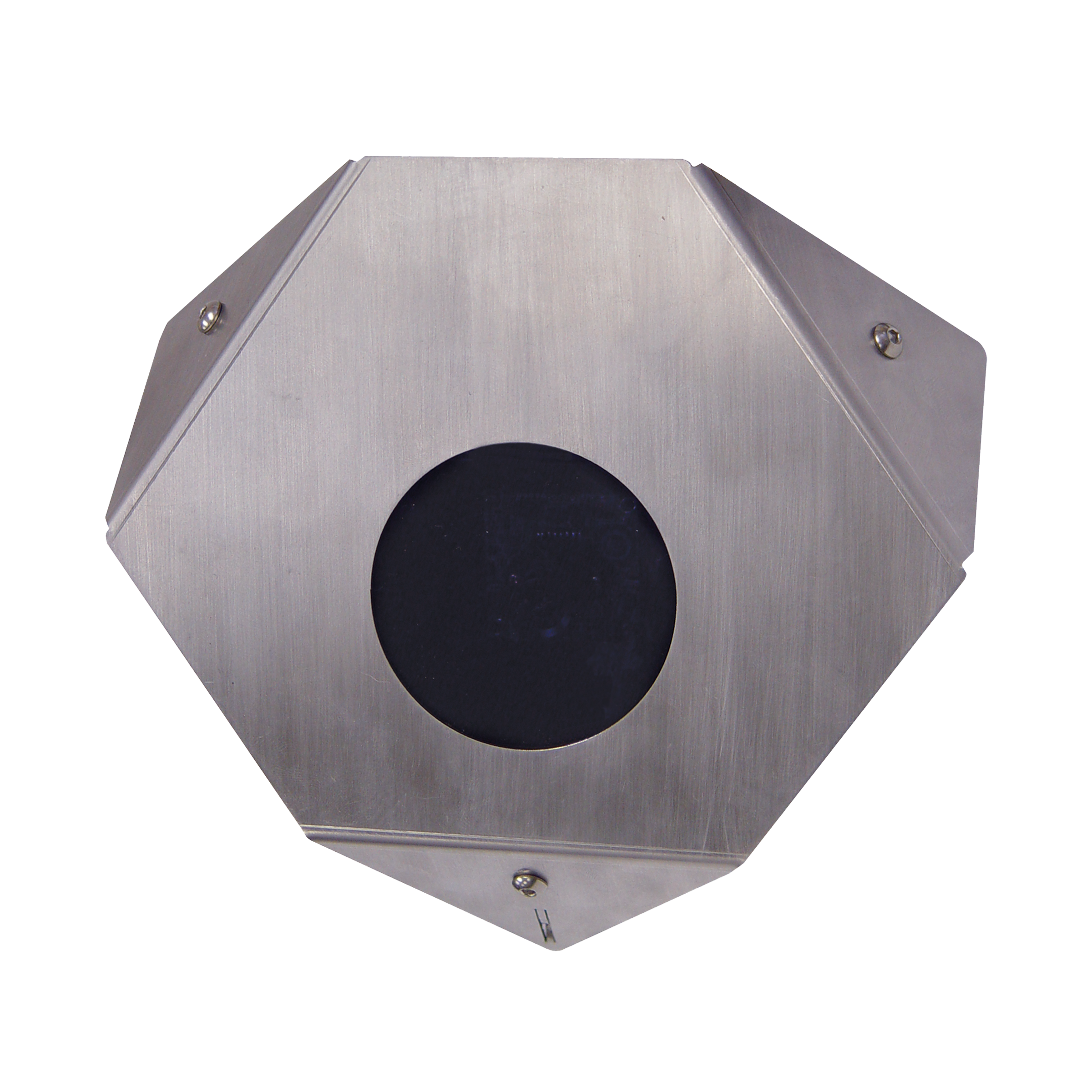

Speco - CVC607CMT - HD-TVI Heavy Duty Corner Mount Camera
Part number:
Price:
Product Overview
The HD-TVI Heavy Duty Corner Mount Camera features a 3.6mm lens and is vandal resistant, designed for corners to provide an optimal surveillance angle.
Key Features
- • Supports up to Full HD 1080p @ 30fps.
- • Full HD resolution over coax.
- • Vandal resistant 90° corner mount camera.
- • Heavy duty housing is built to withstand blows from a 10 lb. sledgehammer.
- • 12VDC operation.
- • Additional analog output for 960H.
- • 5 year warranty.
| Image and Video | |
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Resolution | 1920 × 1080 |
| Effective Pixels | 1984 (H) × 1105 (V) |
| Total Pixels | 2000 (H) × 1121 (V) |
| Electronic Shutter | 1/30 sec. to 1/30,000 sec. |
| S/N Ratio | More than 50dB |
| Video Output | 1.0Vp-p / 75 Ohms |
| Communication | UTC |
| Electrical | |
| Power Supply | 12VDC Power supply not included |
| Power Consumption | 200mA |
| Optics | |
| Optional Lens | CVC607CMT2.5, 2.5mm lens |
| Environmental | |
| Operating Temperature | 14°F to 122°F |
| Physical Characteristics | |
| Housing Material | 16-gauge steel |
| Dimensions | 5.1" (W) × 3.3" (H) |
| Weight | 1.5lbs |
Name
Description
Size
Downloads
File
Specification
0.5mb
File
Manual
0.5mb
