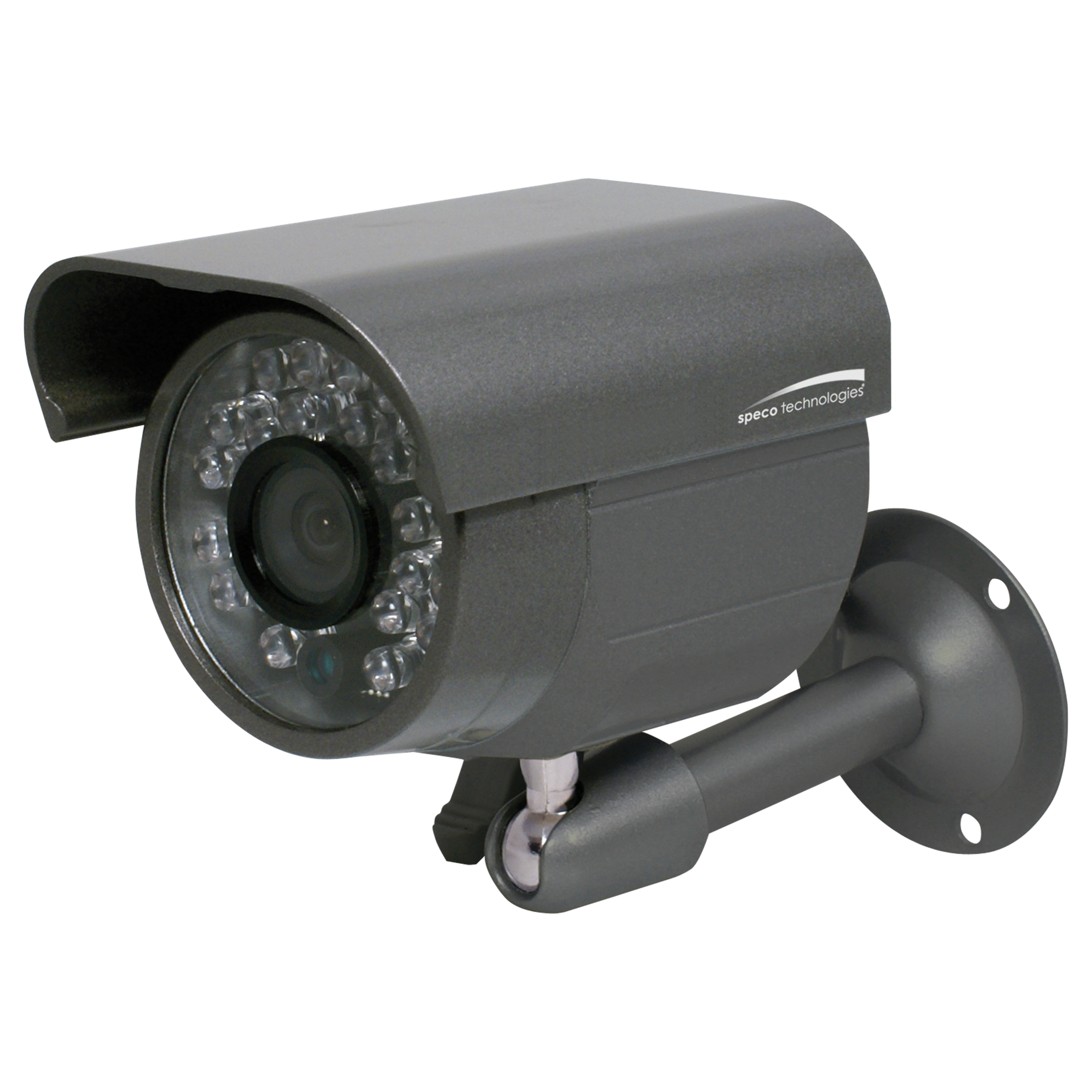

Speco - CVC617T - 2MP HD-TVI IR Bullet Camera
Part number:
Price:
Product Overview
The CVC617T is a 2MP HD-TVI IR Bullet Camera with a 3.6mm fixed lens, designed for high-definition video surveillance, featuring an IR range of 65 feet, and weather resilience with IP66 compliance.
Key Features
- • 3.6mm fixed lens.
- • Full HD resolution over coax (HD-TVI).
- • IP66 compliant.
- • Mounting bracket included.
- • Additional analog output for 960H.
- • Full OSD operation via UTC (TVI).
| Image and Video | |
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Resolution | 1920 × 1080 at 30fps |
| Minimum Illumination | 0.00 lux with IR LED on |
| Effective Pixels | 1984 (H) × 1105 (V) |
| Total Pixels | 2000 (H) × 1121 (V) |
| Number of IR LEDs | 24 |
| IR Range | 65ft, depending on scene reflection |
| Scanning System | 2:1 interlaced |
| Synchronization | Internal |
| S/N Ratio | 50dB |
| Video Output | CVBS: 1.0Vp-p, 75 Ohms |
| Electronic Shutter Speed | 1/60 sec. to 1/100,000 sec. |
| Backlight Compensation | Automatic |
| AGC | Automatic |
| Electrical | |
| Power Supply | 12VDC Power supply not included |
| Power Consumption | 120mA with IR LEDs off 350mA with IR LEDs on |
| Environmental | |
| Operating Temperature | 14°F to 120°F |
| Physical Characteristics | |
| Dimensions | 2.36" diameter × 3.36" length |
| Weight | 12.8oz |
| Included Accessories | Mounting bracket with screws |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
Manual
0.6mb
