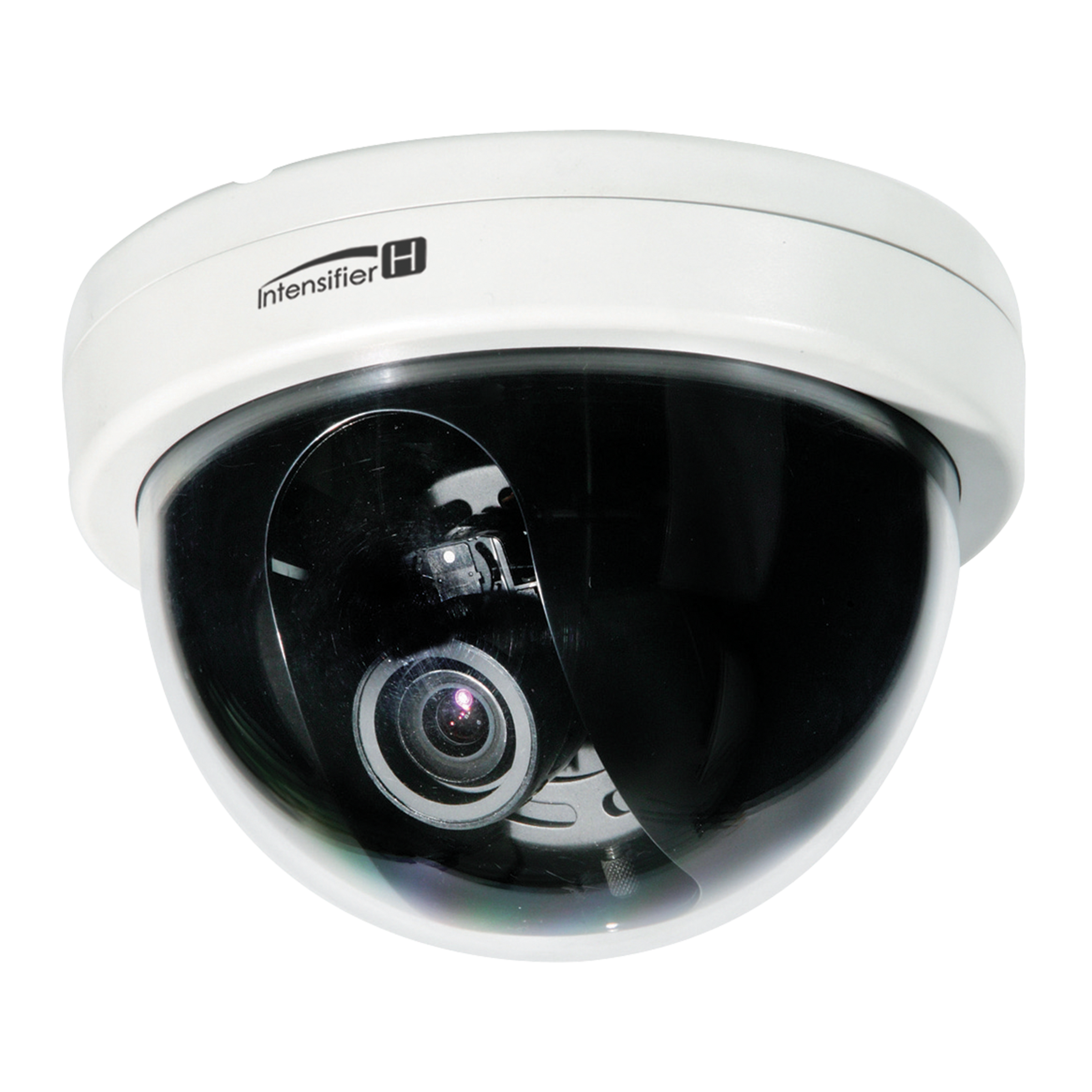

Speco - CVC6246TW - 2MP HD-TVI Intensifier® T Indoor Dome, 2.8-12mm, White Housing
Part number:
Price:
Product Overview
The CVC6246TW is a 2MP HD-TVI Intensifier® T Indoor Dome camera with a 2.8-12mm varifocal lens that is designed to provide full HD resolution over coax with advanced features for enhanced light sensitivity and performance in a variety of conditions.
Key Features
- • 2.8-12mm auto iris varifocal lens.
- • 1/3” Sony Exmor CMOS, 2MP.
- • Full HD resolution over coax (HD-TVI).
- • Amplify existing light with no distance limitations.
- • No problems caused by objects that reflect or absorb IR light sources.
- • With presets for different scenarios.
- • 12VDC / 24VAC dual voltage operation.
- • Full OSD operation via UTC.
- • 3 axis lens mount.
- • Signal distance up to 1600 feet.
- • Additional analog output for 960H.
- • 5 year warranty.
| Image and Video | |
| Image Sensor | 1/3" Sony Exmor CMOS, 2MP |
| Resolution | 1980 × 1080p at 30fps |
| Minimum Illumination | 0.001 lux |
| Effective Pixels | 1984 (H) × 1105 (V) |
| Total Pixels | 2000 (H) × 1121 (V) |
| TV System | NTSC |
| Scanning System | Progressive |
| S/N Ratio | 50dB |
| Video Output | 1.0Vp-p / 75 Ohms |
| Electronic Shutter Speed | Auto / Manual |
| OSD | Available |
| Backlight Compensation | BLC / HLC / Off |
| Day/Night | Color / B&W / Auto / EXT |
| AGC | Level adjustable, 0-10 |
| White Balance | ATW / Push / Manual |
| Sense-Up | 2x-32x, adjustable |
| Test Monitor Output | CVBS |
| Image Processing and Analytics | |
| Intensify | Auto / Off, selectable from x2 to x512 |
| Motion Detection | On / Off, 4 programmable zones |
| Privacy Masking | On / Off, 16 programmable zones |
| Speco DNR | Off / Low / Medium / High |
| Sharpness | On / Off, level adjustable |
| Mirror | On / Off |
| Electrical | |
| Power Supply | 12VDC / 24VAC dual-voltage operation Power supply not included |
| Power Consumption | 12VDC, 150mA 24VAC, 195mA |
| Environmental | |
| Operating Temperature | 14°F to 122°F |
| Storage Temperature | -4°F to 140°F |
| Physical Characteristics | |
| Dimensions | 3.82" (H) × 5.47" (diameter) |
| Weight | 1.54lbs |
