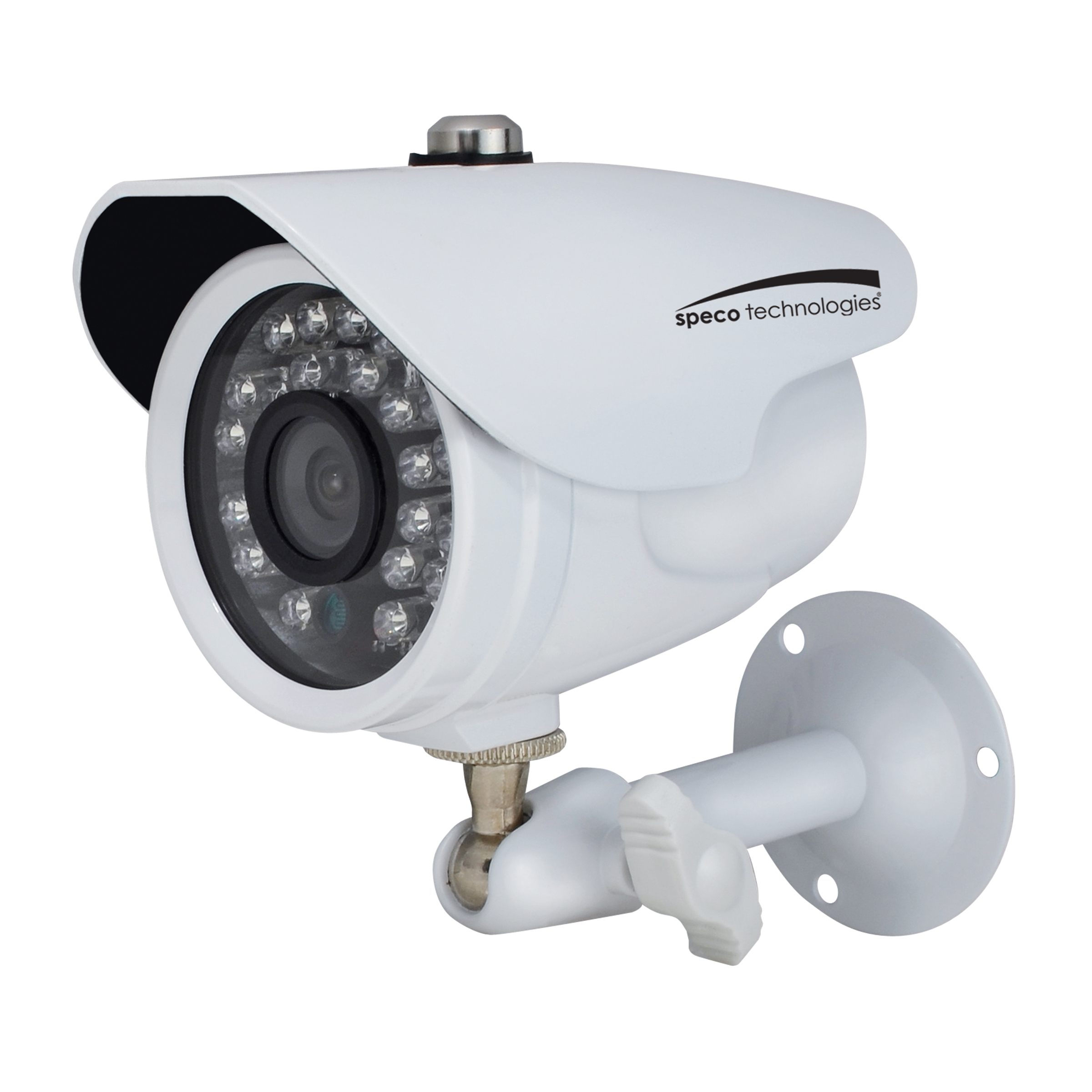

Speco - CVC627MT - 2MP Color Waterproof Marine Bullet Camera with Infrared
Part number:
Price:
Product Overview
2MP HD-TVI Color Waterproof Marine Bullet Camera w/IR, 10' Cable, 3.6mm Lens, White Housing.
Key Features
- • 2MP HD-TVI Color Waterproof Marine Bullet Camera.
- • 3.6mm fixed lens.
- • Full HD resolution over coax (HD-TVI).
- • Full HD 1080p @ 30fps.
- • Great for marine applications.
- • Additional analog output for 960H.
- • Full OSD operation via UTC (TVI only).
- • IP67 compliant, waterproof.
- • 12VDC / 24VAC dual voltage operation.
- • 5 year warranty.
| Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Cable Length | 10 ft |
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Resolution | 1920 x 1080 |
| Minimum Illumination | 0 lux (IR LEDs on) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Number of IR LEDs | 24 |
| IR Range | 65 ft. (depending on scene reflection) |
| Electronic Shutter | Auto / Manual (1/30 – 1/30,000 sec) |
| S/N Ratio | More than 50dB |
| Synchronization | Internal |
| Scanning System | 2:1 Interlaced |
| Video Output | 1Vp-p / 75 ohms |
| TV System | NTSC |
| Power Supply | 12VDC / 24VAC (power supply not included) |
| Power Consumption | 350mA (12VDC) / 300mA (24VAC) |
| Operating Temperature | 14° F – 120° F |
| Unit Dimensions | 2.47" (W) x 2.74" (H) x 4.01" (L) |
| Unit Weight | 12 oz. |
| Cable | 10' of power/video cable included |
| Included in Package | Main unit, mounting screws, mounting bracket |
| Signal Distance | Up to 1600 ft. (depending on coax quality) |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
Manual
0.7mb
