Speco - CVC675T - HD-TVI Discreet Color In-Wall Camera
Part number:
Price:
Product Overview

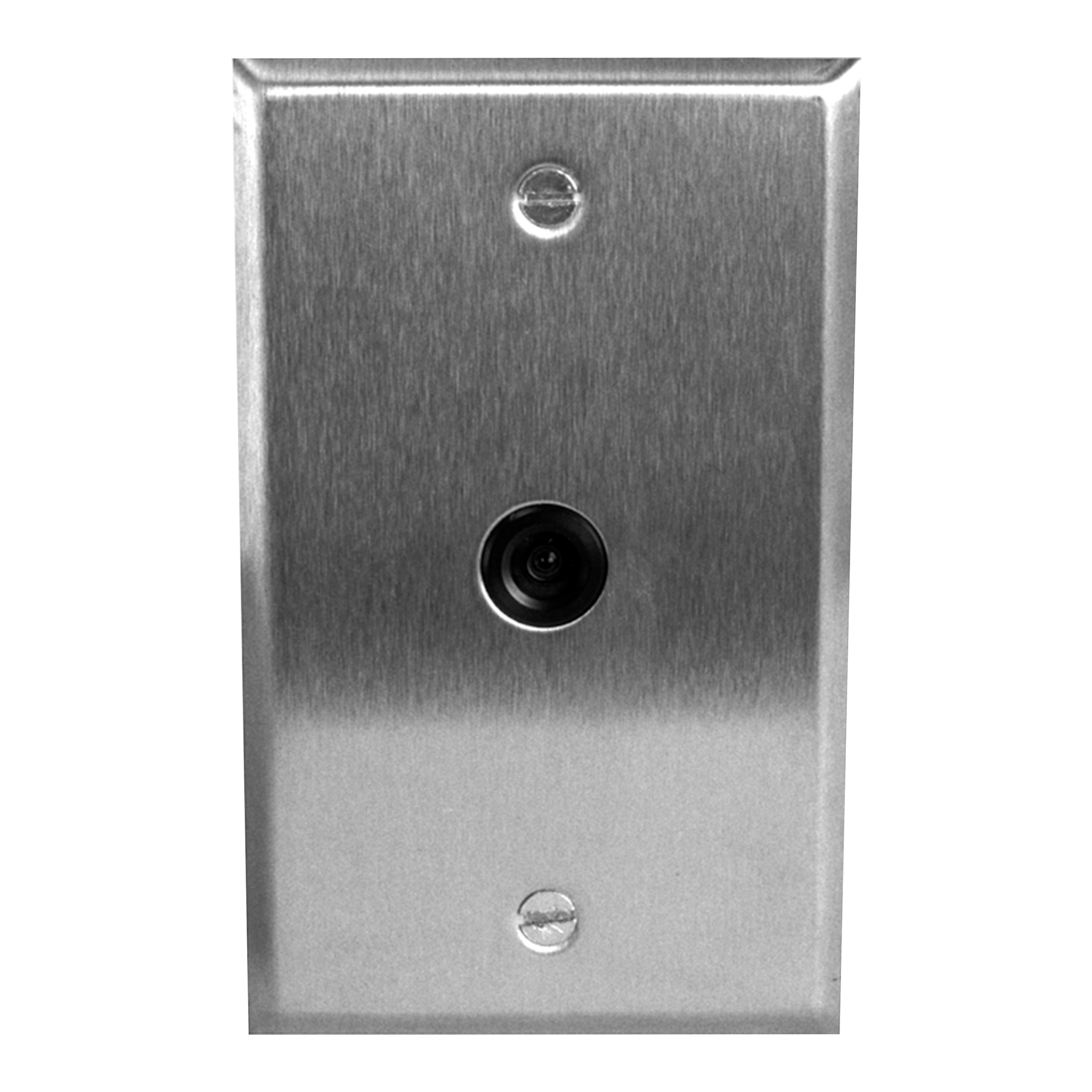

The CVC675T is an HD-TVI Discreet Color In-Wall Camera designed for highest quality video surveillance, offering a sleek design with full HD capabilities. Power supply not included.
Key Features
- • Fits into a single gang electrical box (included).
- • Brushed stainless steel faceplate.
- • Full HD 1080p @ 30fps.
- • Additional 960H analog output.
- • 12VDC operation.
- • 5 year warranty.
| Specifications | |
| Housing Color | Stainless Steel |
| Resolution | Full HD 1080p @ 30fps |
| Operation Voltage | 12VDC |
| Warranty | 5 years |
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Scanning System | Progressive |
| Angle of View Horizontal | 72° |
| Angle of View Vertical | 53° |
| Electronic Shutter Speed Auto | 1/30 sec. - 1/30,000 sec. |
| Video S/N Ratio | Greater than 50dB |
| Video Output Level | 1.0Vp-p / 75 ohms |
| Power Consumption | 200mA |
| Power Supply | 12VDC (power supply not included) |
| Operating Temperature | 14° F - 122° F / within 90% RH |
| Housing | Stainless steel |
| Dimensions | 2.75" (W) x 4.25" (H) x 2.75" (L) |
| Weight | 3.45 oz. |
| Communication | UTC |
Name
Description
Size
Downloads
File
Specification
0.4mb
