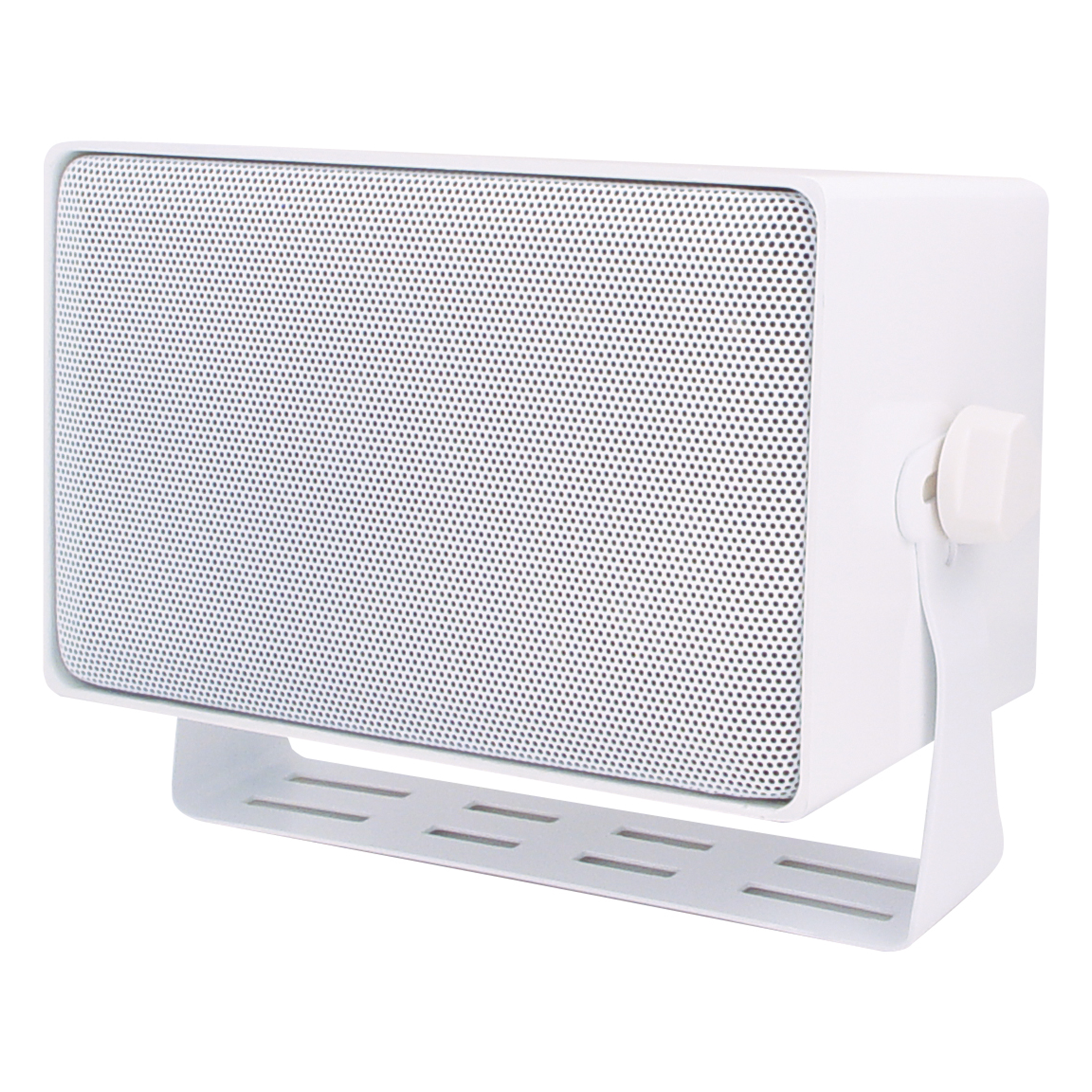

Speco - DMS3TSW - Weather Resistant 3 Way Speakers w/ Transformer White
Part number:
Price:
Product Overview
• 3-way mini weather resistant speaker system • Dual voltage transformer: 70V and 25V *Also available in black [DMS3TS](https://specotech.com/product/dms3ts/) **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: DMS3TSW | Woofer Size: 4 | Speaker Color: White
Key Features
- • Compact, full-range design.
- • Each speaker contains: 4" Polypropylene woofer, 2" Polypropylene midrange and 1" Polypropylene dome tweeter.
- • Die-cast enclosure, complete with mounting bracket, speaker wire and mounting hardware.
- • Weather-resistant design.
- • 5 year warranty.
Installation Notes
4.5 (W) x 7.25” (H) x 4.375” (D)
| Specifications | |
| RMS Power | 15W |
| Max Power | 25W |

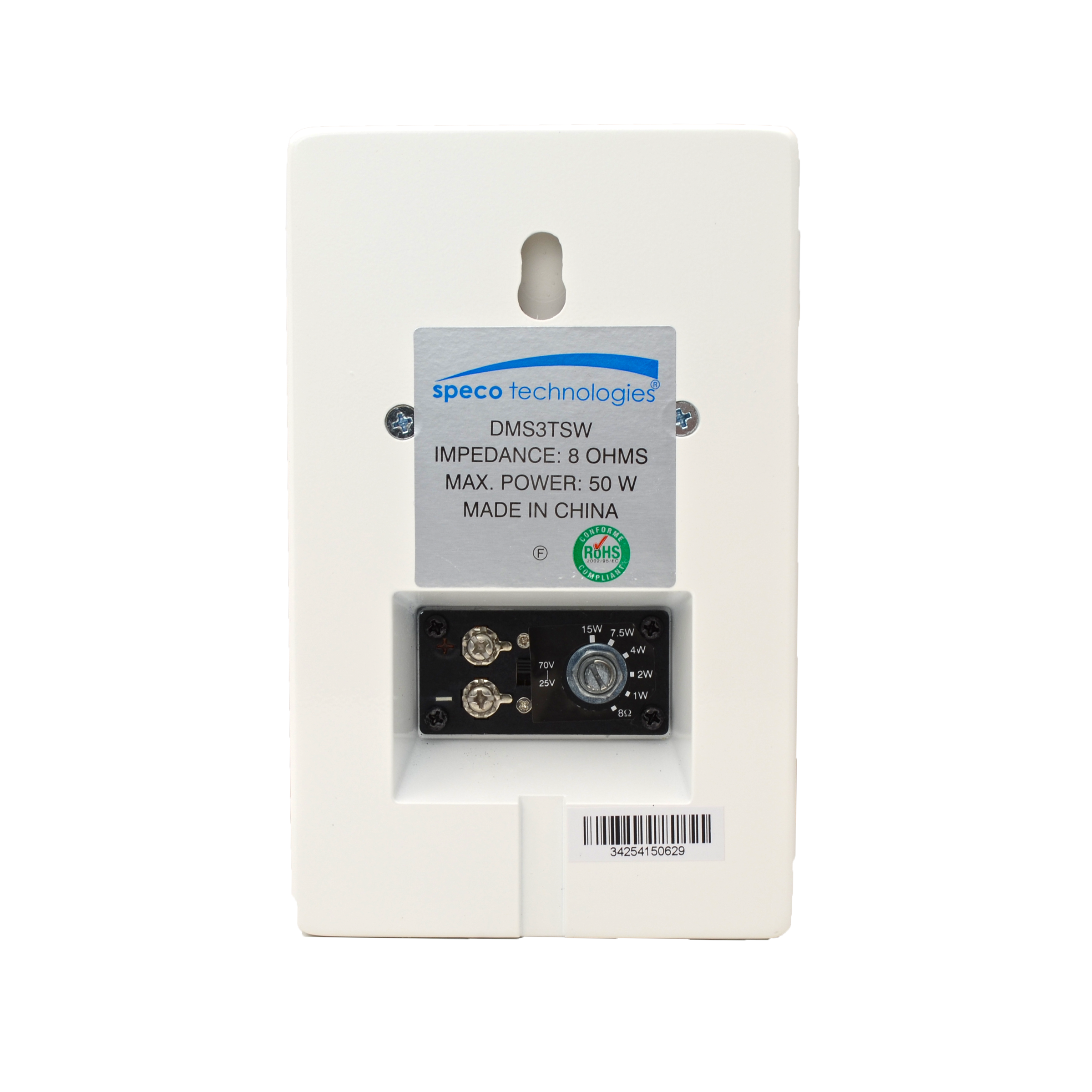

| Transformer Type | 70/25V (selectable) |
| Transformer Power Taps | 15W, 7.5W, 4W, 2W, 1W & 8 Ohms |
| Termination Type | Screw terminal |
| Sensitivity (1W/1M) | 86dB |
| Maximum SPL (Pmax/1m) | 97dB |
| Driver Impedance | 8 Ohms |
| Magnet | 10 oz. ferrite |
| Frequency Response Range | 110Hz ~ 20kHz |
| Dispersion @ 1000Hz | 180º conical |
| Driver | 4” polypropylene woofer, 2” mylar midrange, 1” mylar tweeter |
| Material | Body: Aluminum; Gille: Treated metal |
