Product Overview

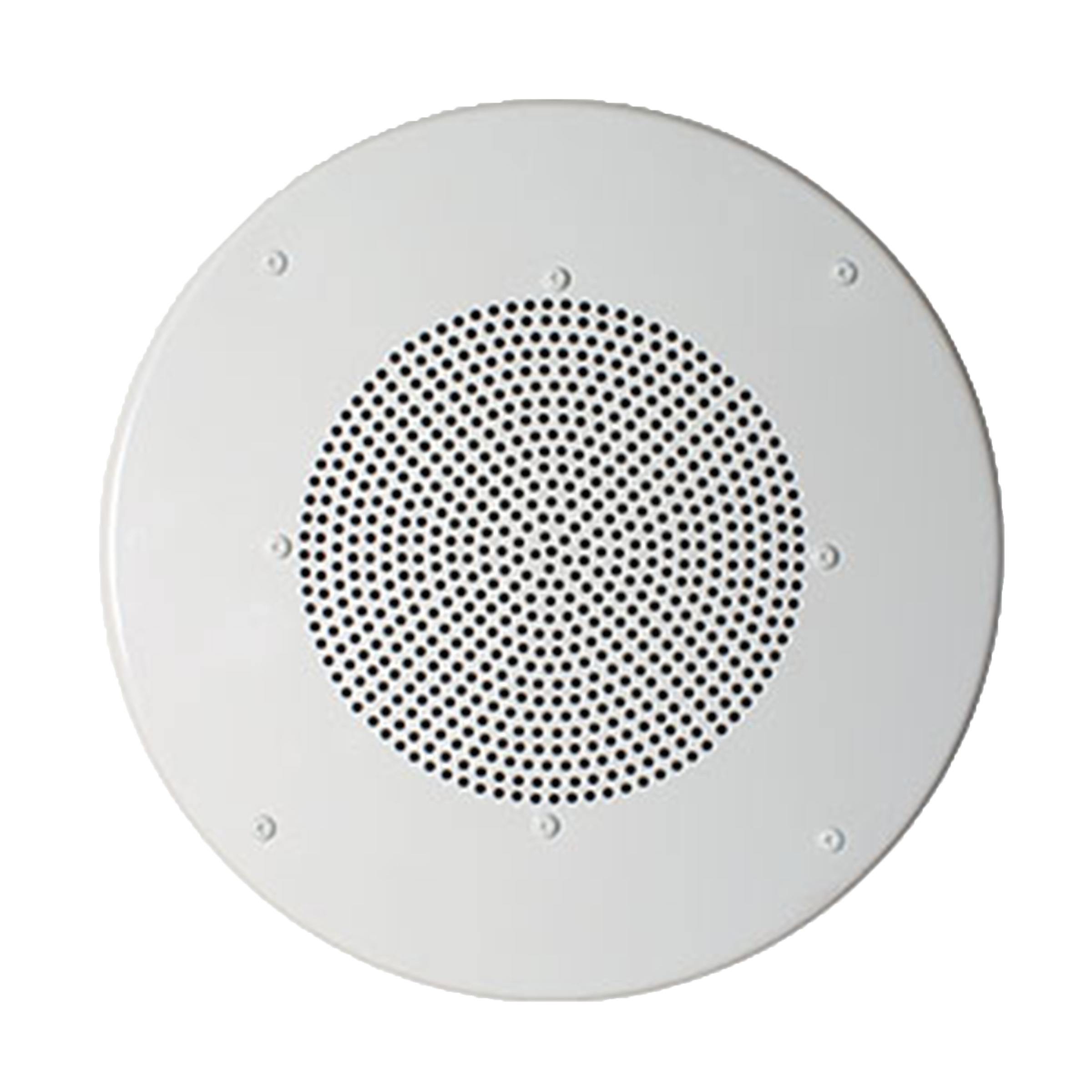

• Smaller version of our best-selling G86TG speaker • Compact design means less work installing and better aesthetics • Lifetime warranty **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: G46TG | Woofer Size: 4 | Housing Color: White
Installation Notes
6.7' (D) × 3.5" (H)
| Speaker Specifications | |
| RMS Output Power | 10W |
| Max Output Power | 20W |
| Transformer Type | 70/25V |
| Transformer Settings | 5W, 2.5W, 1W, 0.5W, 0.25W |
| Sensitivity (1W/1M) | 89dB |
| Maximum SPL (Pmax/1M) | 94dB |
| Impedance | 8 Ohms |
| Magnet Material and Weight | Ferrite, 3.6oz |
| Frequency Response Range | 150Hz - 20kHz |
| Dispersion | 225° |
| Driver | 4" paper cone woofer, dual cone design tweeter |
| Operating Specifications | |
| Mounting Depth | 3.25" |
| Cutout Dimensions | 4" |
| Speaker Grille Material | Steel |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
