Product Overview

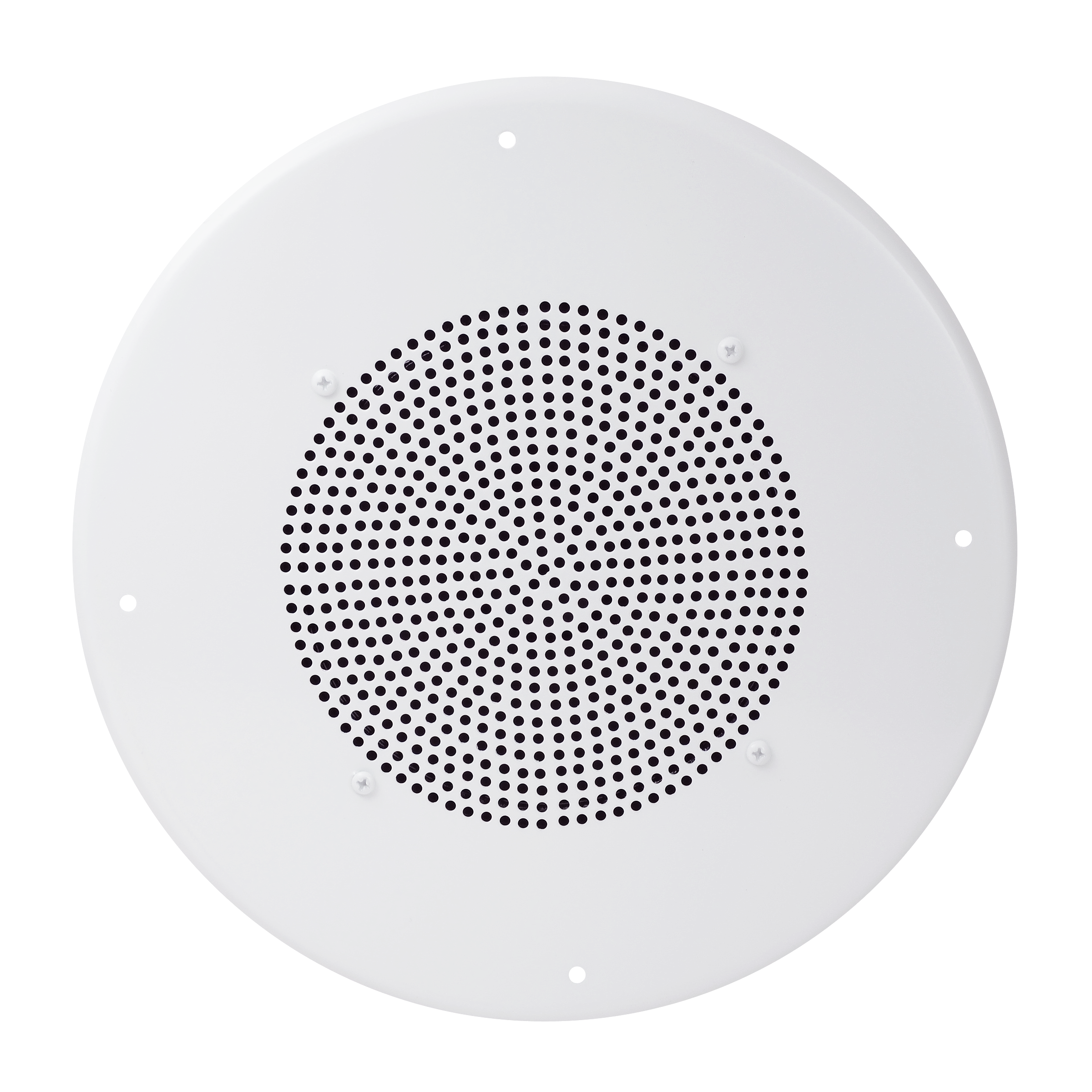

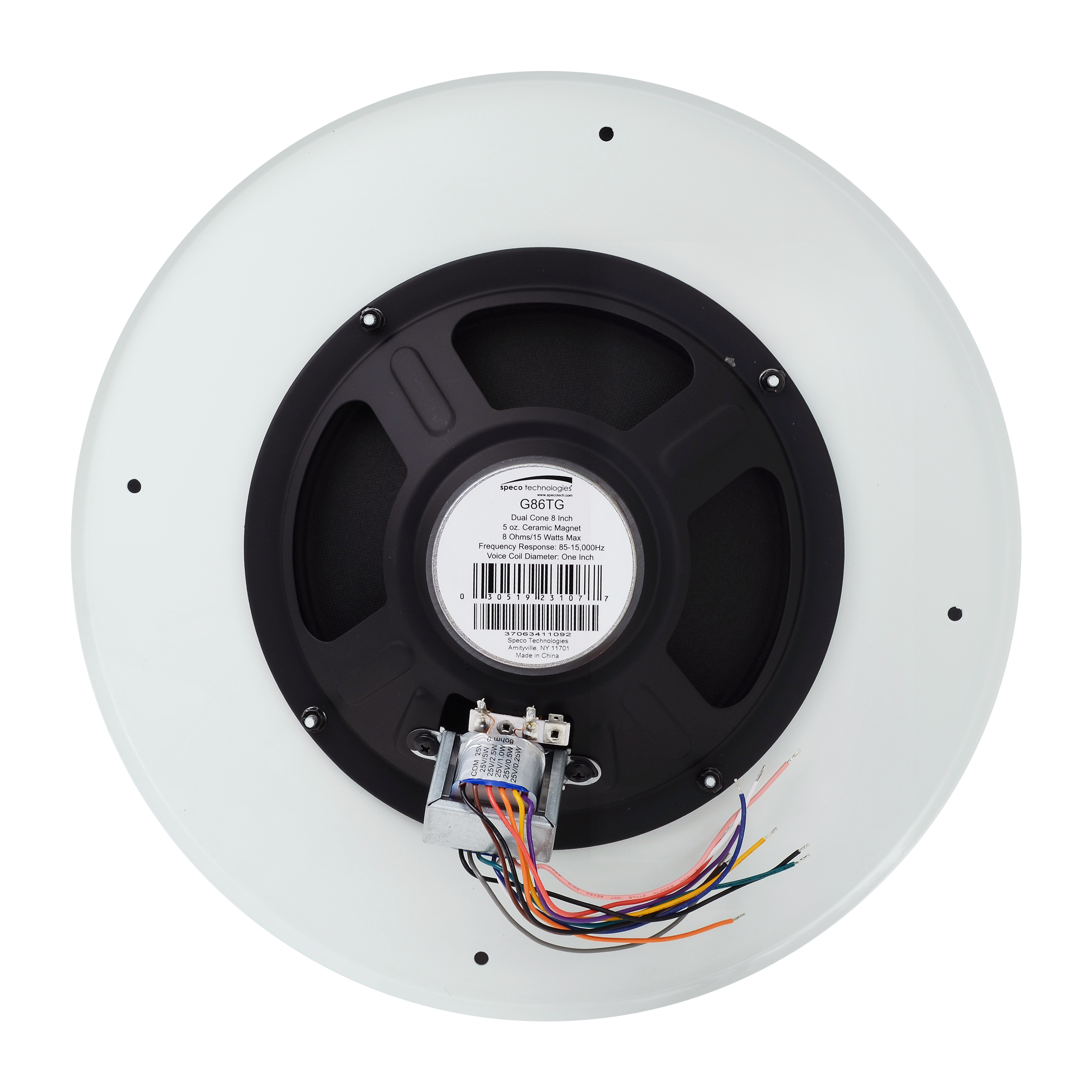

• Classic style white steel grille • 70/25V transformer with colored leads • G86TCG features volume control knob centered on grille *also available with volume control **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: G86TG | Woofer Size: 8 | Speaker Color: White
Key Features
- • Lifetime warranty.
Installation Notes
13" (Dia.) x 3.5" (D)
| Full Specifications | |
| Woofer Size | 8 |
| Speaker Color | White |
| RMS Power | 10W |
| Max. Power | 15W |
| Transformer Type | 70/25V |
| Transformer Power Type | 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms |
| Termination Type | Colored leads |
| Sensitivity (1W/1M) | 90dB |
| Maximum SPL (Pax/1M) | 100dB |
| Driver Impedance | 8 Ohms |
| Magnet | 5 oz. ferrite |
| Frequency Response Range | 85Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120º Conical |
| Driver | 8” paper cone woofer, 8” dual cone tweeter |

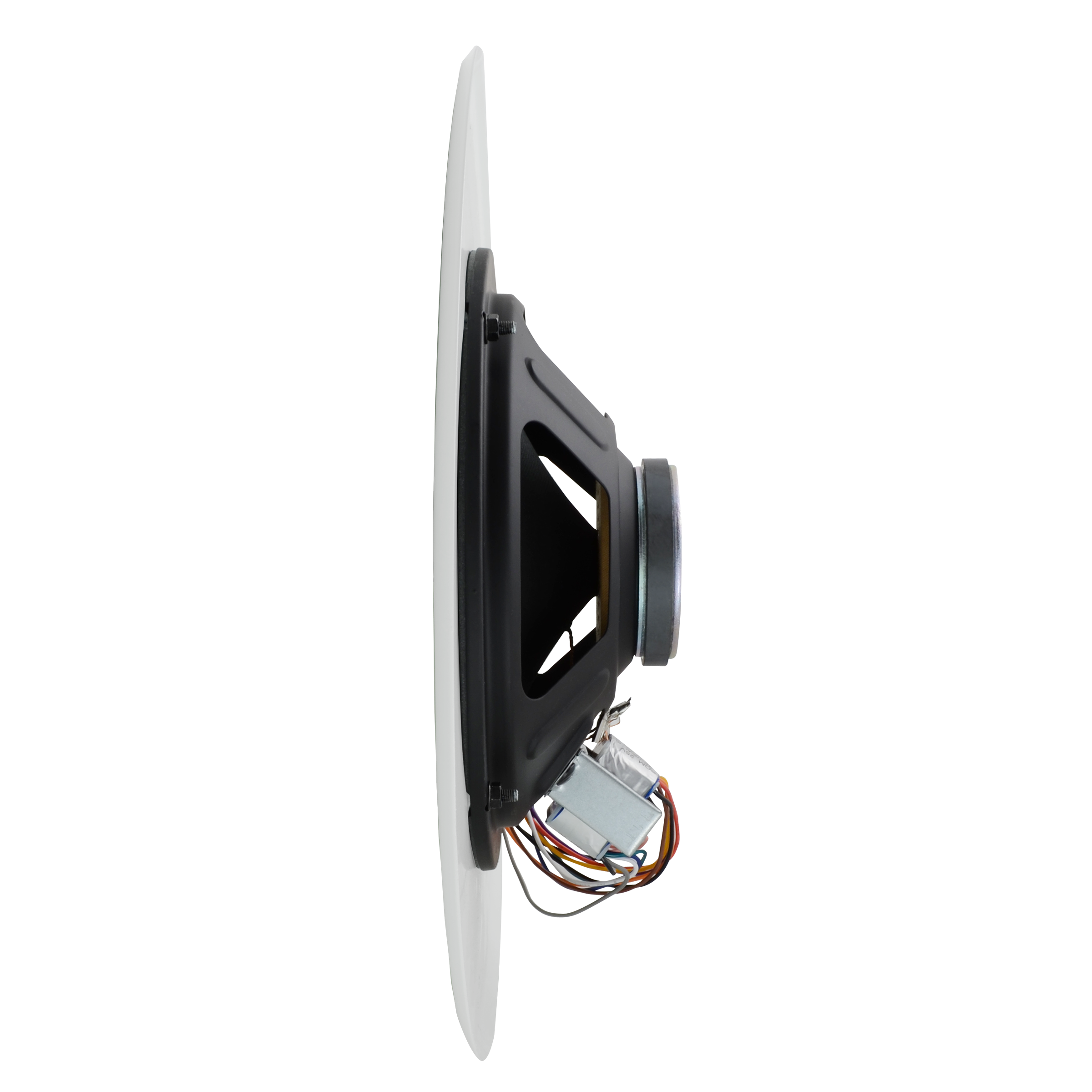

| Speaker Dimensions | 13” (Dia.) x 3.5” (D) |
| Mounting Dimensions | 11.3” (Dia.) |
| Minimum Mounting Depth | 2.7” |
| Material | Grille: steel |
| Color | Off-White |
