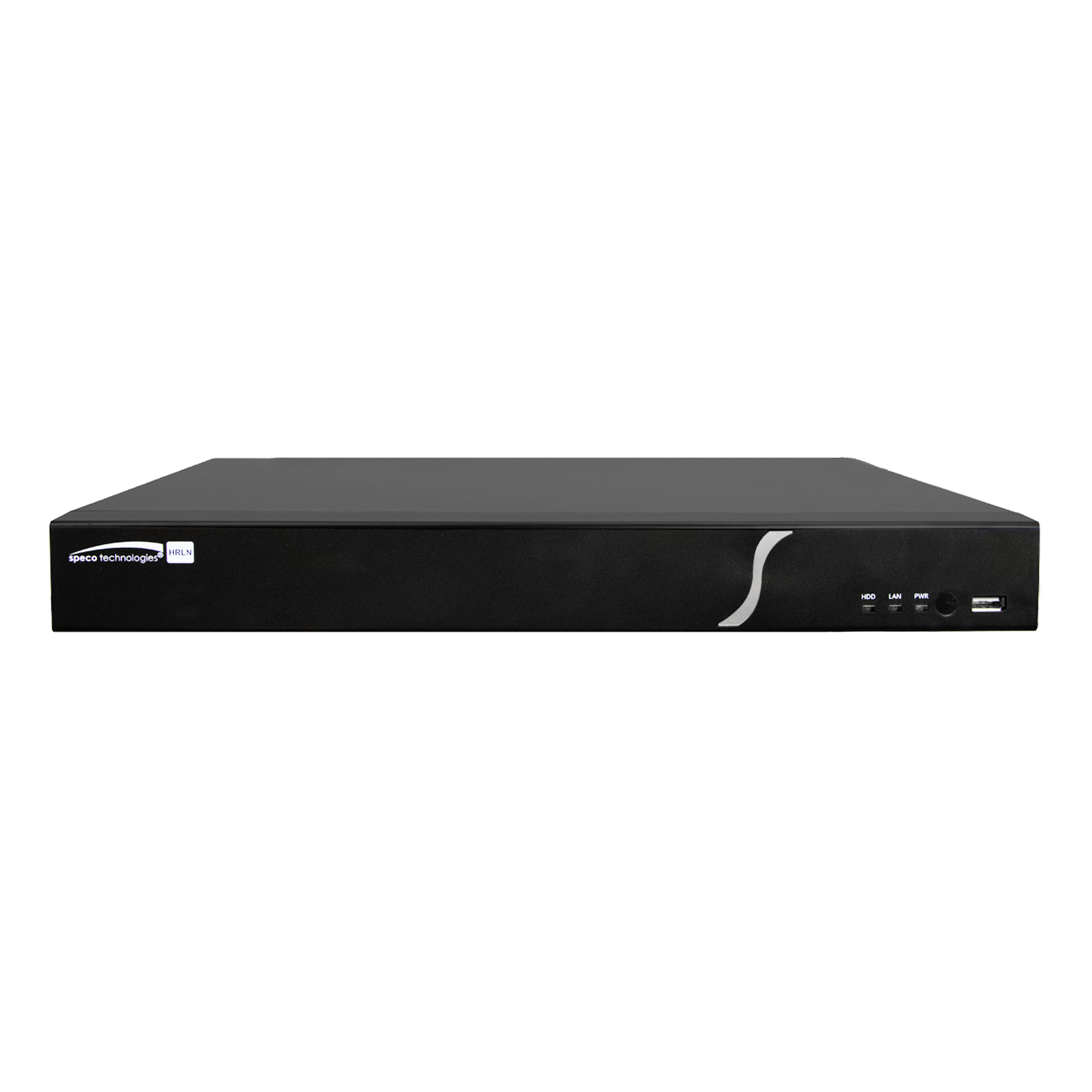

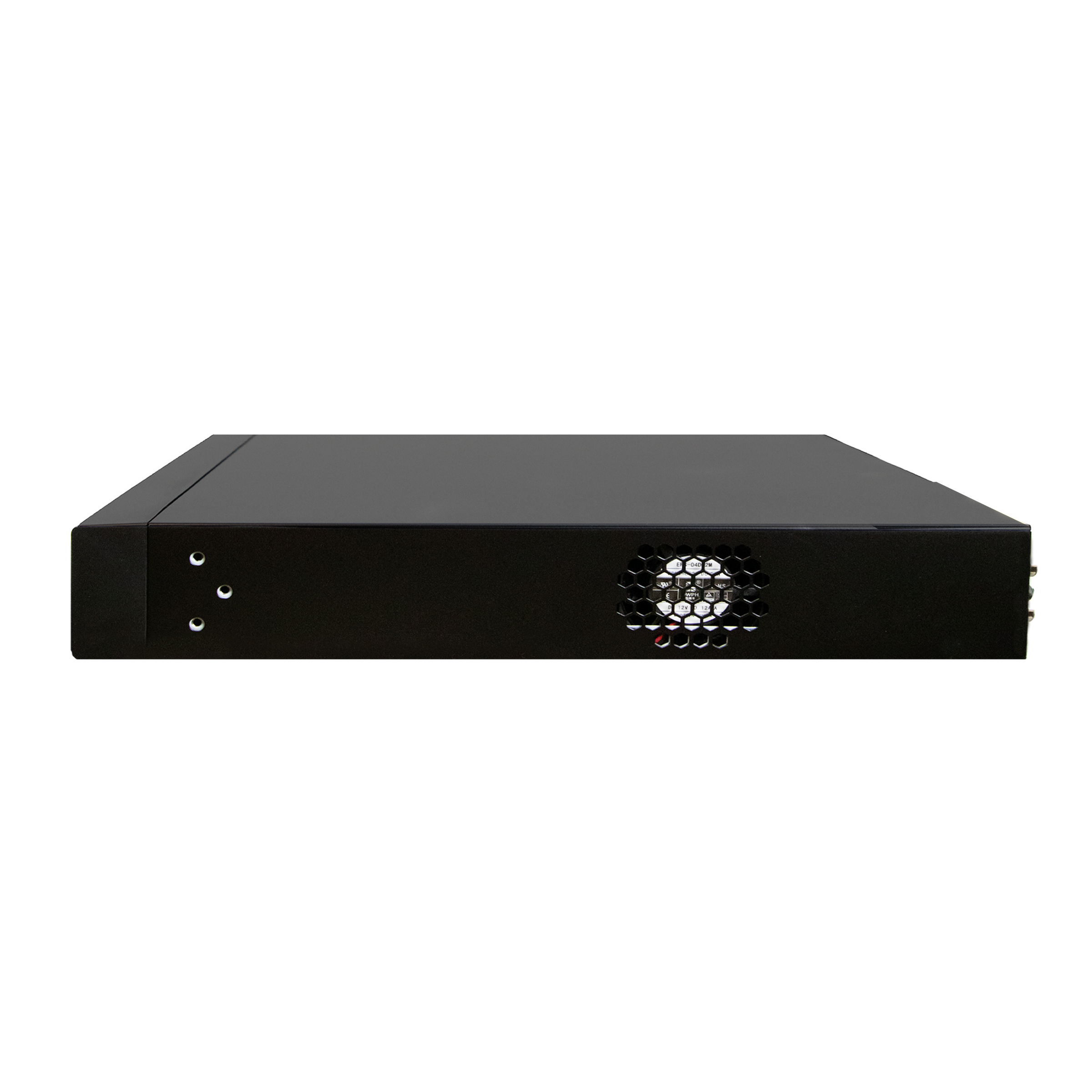

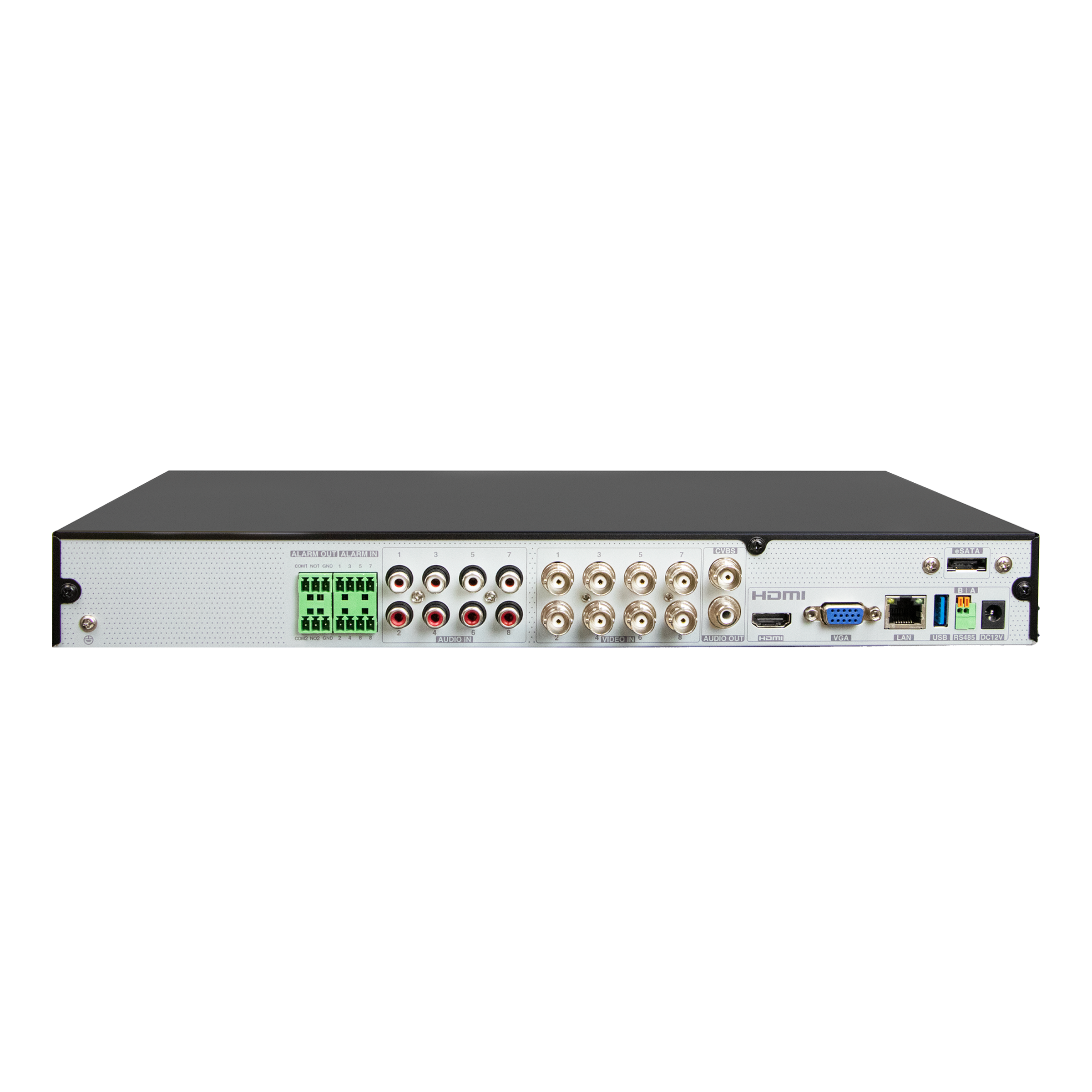

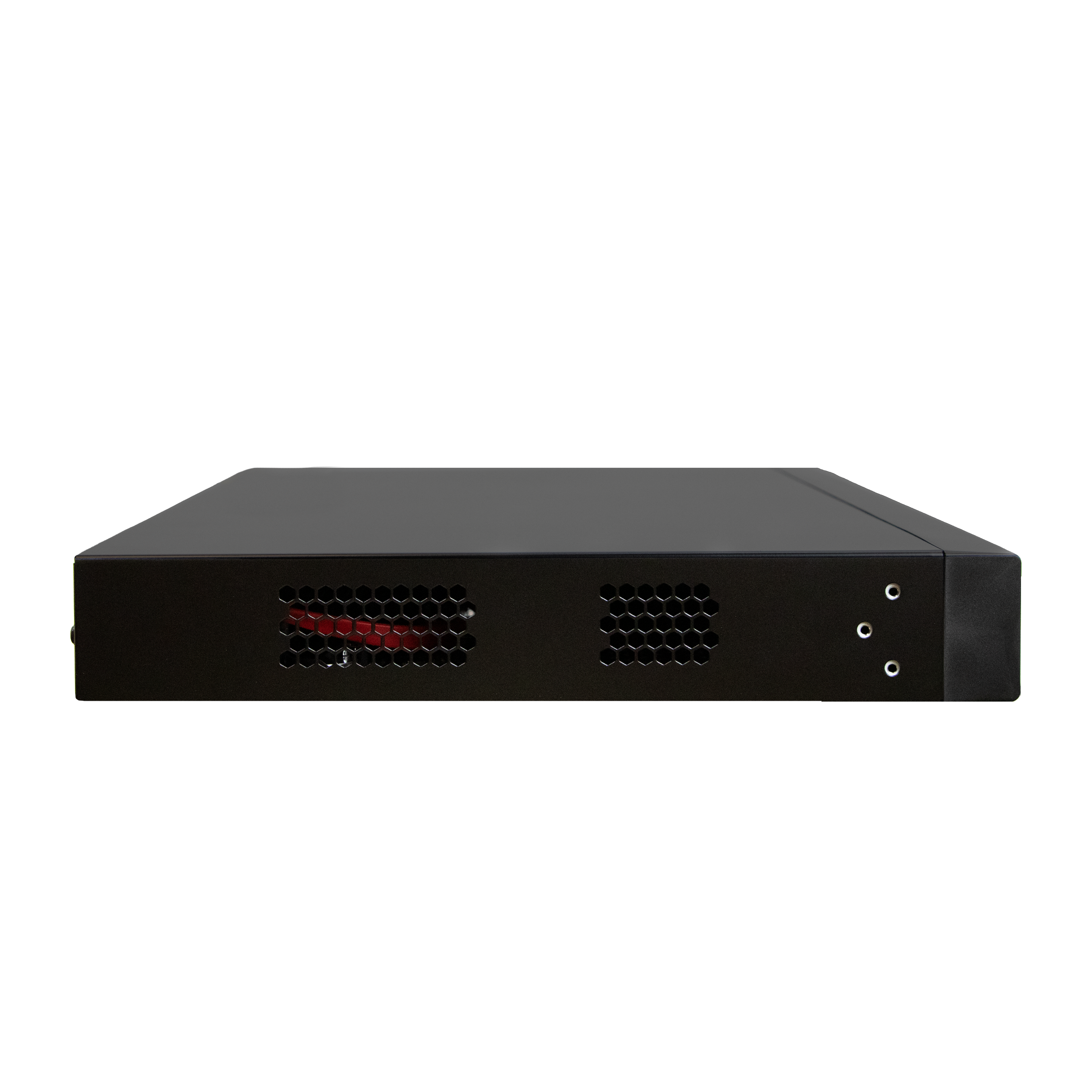

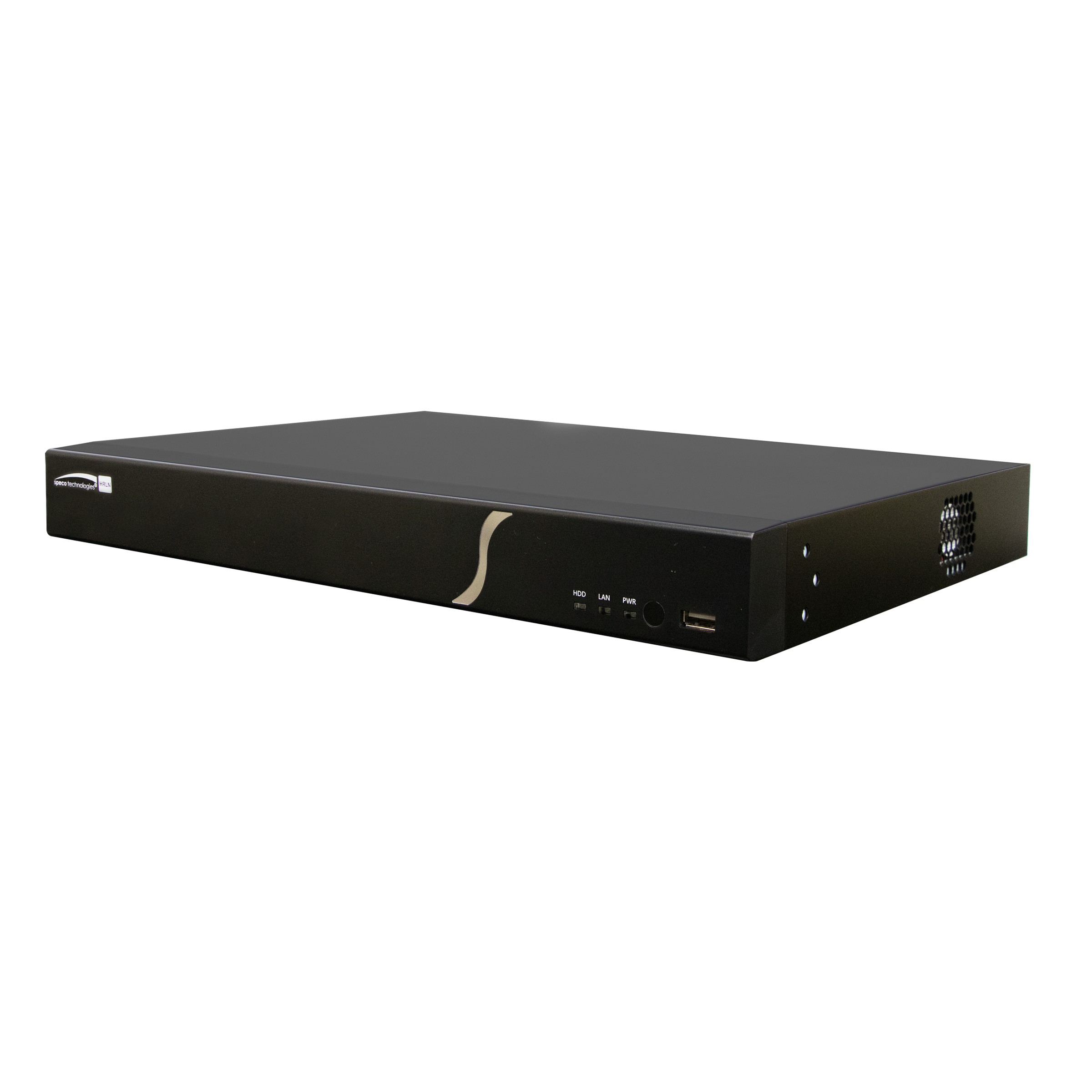

Speco - H16HRLN - 16-Channel Hybrid Digital Video Recorder
Part number:
Price:
Product Overview
Speco’s NDAA compliant HRLN recorders, will take your footage quality to the next level supporting up to 8MP cameras @ 30 fps
Key Configuration
Model: H16HRLN | 8 Configurable Hybrid Channels (TVI or IP) plus 8 IP Channels
Key Features
- • Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8-channels.
- • H.265 compression – Store up to 2x more than H.264!.
- • 2 SATA port for up to 40TB of storage.
- • 1 eSATA port for an additional 8TB of storage.
- • 4K HDMI out and VGA monitor output.
| Full Specifications | |
| Terabyte Size | 10TB, 12TB, 2TB, 4TB, 6TB, 8TB |
| Technical Specifications Video Recorder | |
| Channels | 16 |
| System | Compression | Standard H.265 |
| System | OS | Embedded Linux |
| Video | Analog Input signal | HD-TVI, AHD, CVI, CVBS |
| Video | Analog Only Input | BNC x8 |
| Video | Configurable Analog Inputs | 8 |
| Video | IPC Only Input | 8CH (up to 16-CH)* |
| Video | Network Access & Transfer Bandwidth | 32/96Mbps |
| Video | Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Video | Output | HDMIx1: 4Kx2K/1920x1080/1280x1024VGAx1: 1920x1080/1280x1024/1024x768BNCx1: CVBS (used as the main or spot output) |
| Audio | Input | RCAx8 |
| Audio | 2-way Audio | Take up channel one audio input |
| Audio | Local Output | |
| Record | Record Stream | Dual stream recording |
| Record | Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Record | Frame Rate | Analog: 5MP@ 12fps (PAL/NTSC),4MP/3MP@ 12fps/15FPS (PAL/NTSC),Under 4MP@ 25fps/30fps (PAL/NTSC)IP: 8MP@ 20fps (PAL/NTSC),Under 8MP@ 25fps/30fps (PAL/NTSC) |
| Record | Bit Rate | 32-78Mbps |
| Record | Mode | Manual, schedule, motion, sensor, intelligence |
| IP Input | Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P@25fps/30fps |
| Playback | Simultaneous Playback | Max 8-CH |
| Playback | Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Playback | Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Playback | Function | Play, pause, FF, FB, etc. |
| Alarm | Mode | Manual, sensor, motion, exception, intelligence |
| Alarm | Input | 8-CH local alarm input;Support IPC alarm input |
| Alarm | Output | 2-CH local alarm input;Support IPC alarm input |
| Alarm | Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | Interface | RJ45 10M/100M/100Mbps x1 |
| Network | Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, RTSP |
| Network | Web Client | Multiple online users monitoring |
| Mobile Device | OS | Speco Blue iOS', Android」，SecureGuard' Client |
| Other Viewing Platforms | | Apple TV' and Amazon Fire TV' |
| Storage | HDD | SATA x2, max 40TB per HDD |
| Storage | eSATA | eSATA x1 max 8TB |
| Export | Local | USB, USB mobile HDD |
| Export | Network | Yes |
| Interface | USB | USB2.0x2 |
| Interface | Remote Control | Yes |
| Dimensions | Power Supply | DC12V/4A |
| Dimensions | Power Consumption | ≤15W(without HDD) |
| Dimensions | Dimensions(WxDxH) | 15" x 10.6" x 1.8" (380mm x 268mm x 45mm) |
| Dimensions | Working Environment | |
