Speco - H16WHRLN8TB - 16 Channel Wall Mount Hybrid Digital Video Recorder with 8TB HDD
Part number:
Price:
Product Overview

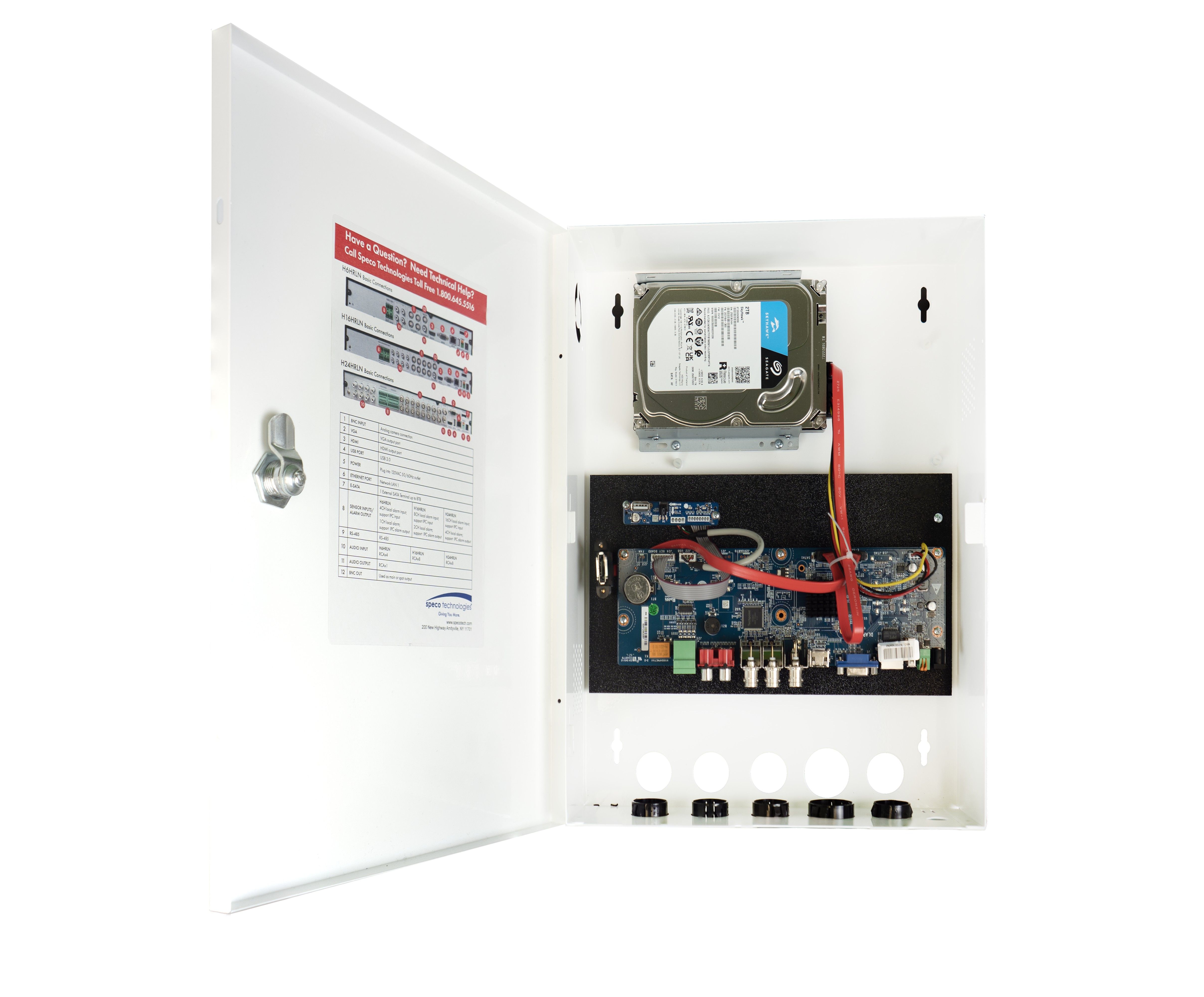

The H16WHRLN8TB from Speco is a 16 channel wall mount hybrid digital video recorder with 8TB HDD. This reliable device combines extensive storage capacity, high-definition video quality, and numerous advanced features, making it ideal for comprehensive security surveillance. Speco's NDAA compliant WHRLN recorders, will take your footage quality to the next level supporting up to 8MP cameras @ 30 fps.
Key Configuration
Model: H16WHRLN8TB
Key Features
- • Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels (H16WHRLN, H24WHRLN).
- • H.265 compression – Store up to 2x more than H.264!.
- • 1 eSATA port for an additional 8TB of storage.
- • 4K HDMI out and VGA monitor output.
- • Object and line crossing detection and alerts.
| Specifications | |
| NDAA | Compliant |
| Number Of Channels | 16 Channel |
| Recording FPS (Per Channel) | 30 FPS @ 3840 × 2160 |
| Compression Method | H.265, H.264 |
| Computer Connectivity | Windows PC |
| Mobile Platform | Android, Iphone; Speco Blue iOS®, Android™, SecureGuard® Client (Specification Sheet (H16WHRLN column)) |
| Mobile connectivity | Mobile Apps, Web Browser |
| Harddrive Size | 8TB |
| Features | Audio Recording Capability, Built-In Display, Free DDNS, Multi-Zone Video Motion Detection, PTZ Support, 4K Resolution |
| Audio Input (RCA) | 4 |
| System | |
| OS | Embeded Linux |
| Video | |
| Analog Inputs | BNC x8, configurable |
| IPC Only Input | 8CH (up to 16-CH)* |
| Network Access & Transfer Bandwidth | 32/96Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| Output | HDMIx1: 4Kx2K/1920x1080/1280x1024 |
| Output | VGAx1: 1920x1080/1280/x1024/1024x768 |
| Output | BNCx1: CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx8 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate | Analog: 5MP@ 12fps (PAL/NTSC), 4MP/3MP@12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) IP: 8MP and under@ 25/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| Playback | |
| Simultaneous Playback | Max 8-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 8-CH local alarm input; Support IPC alarm input |
| Output | 2-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Other Viewing Platforms | Apple TV® and Amazon Fire TV® |
| Storage | |
| HDD | SATAx2, max 40TB per HDD |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Dimensions | |
| Power Supply | DC12V/4A |
| Power Consumption | ≤15W(without HDD) |
