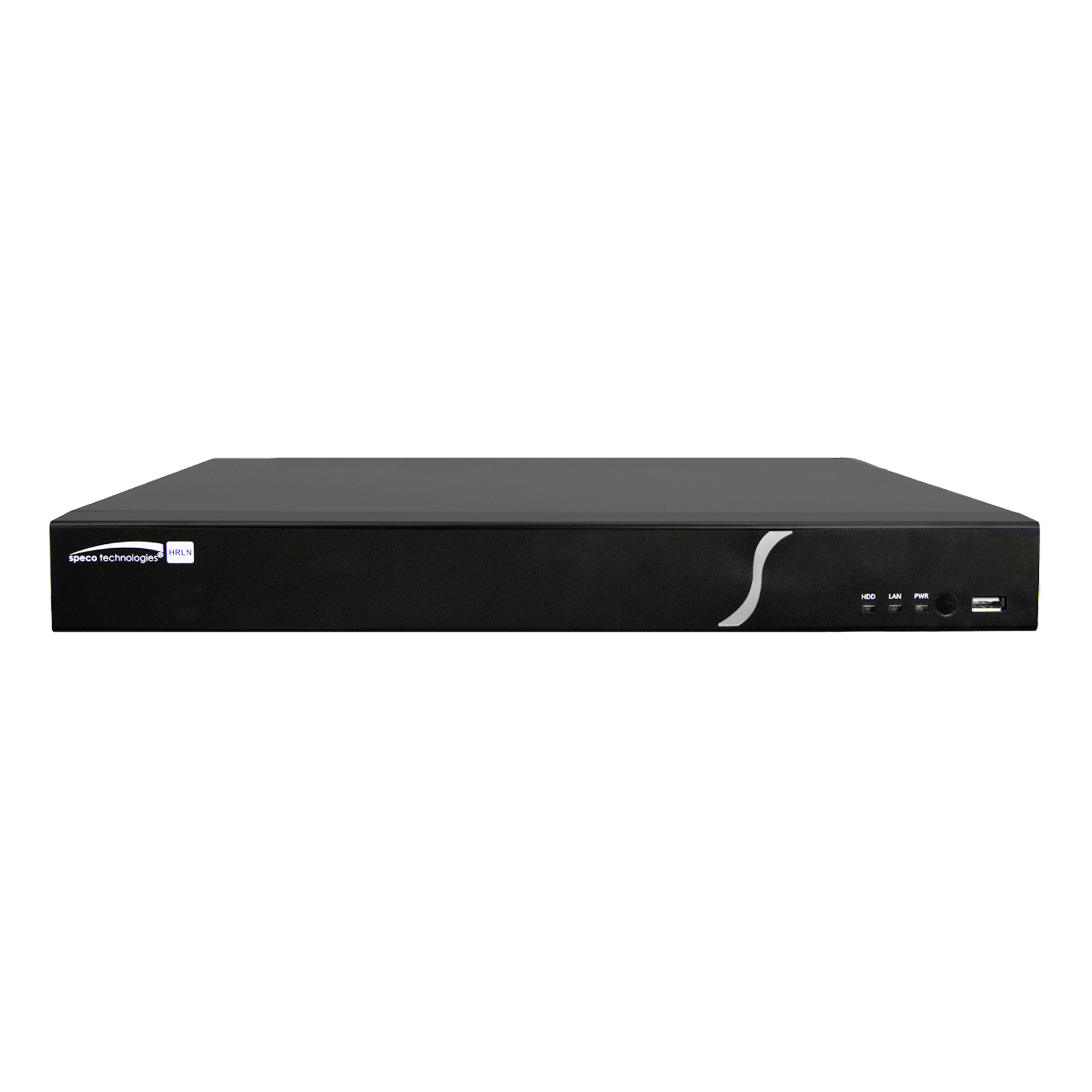

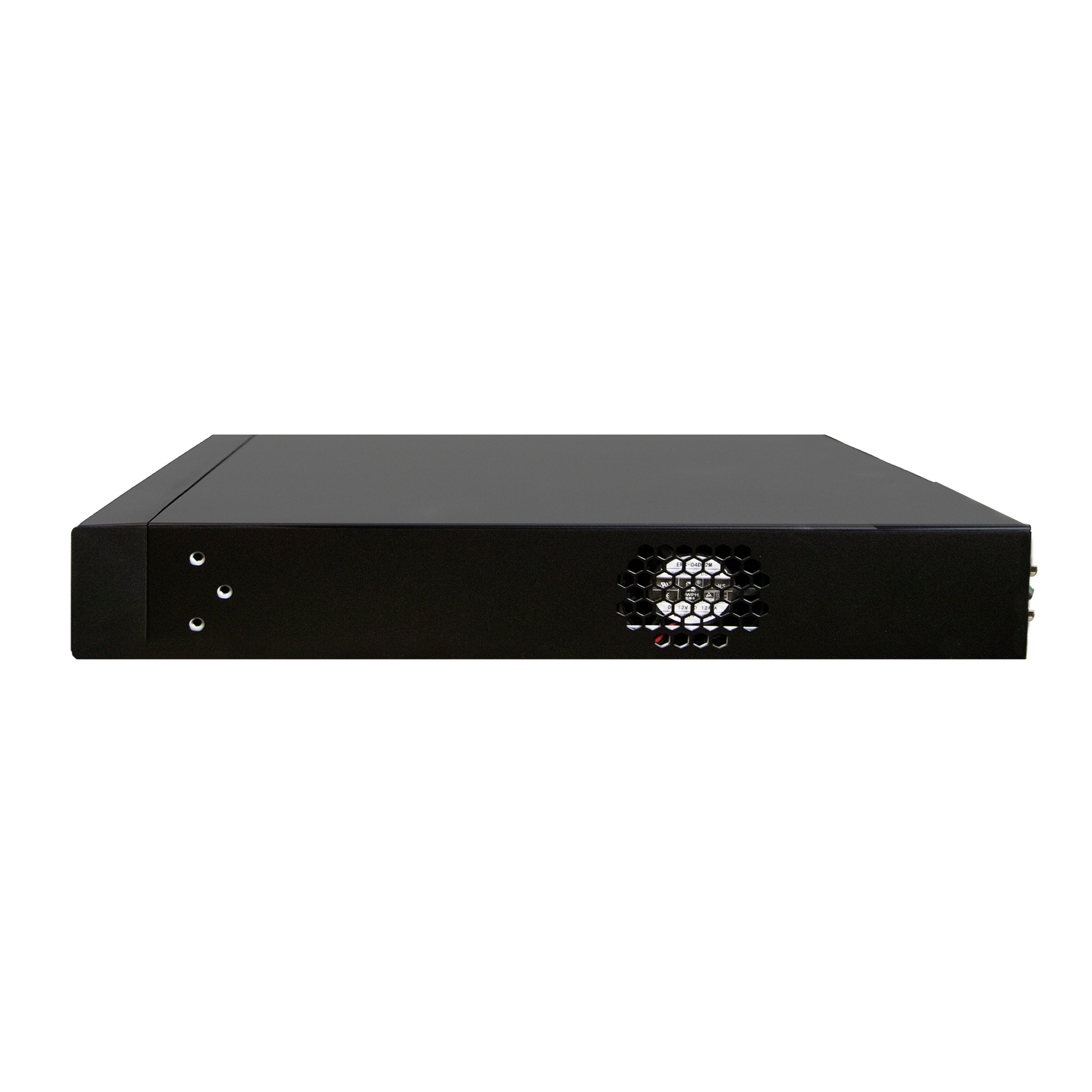

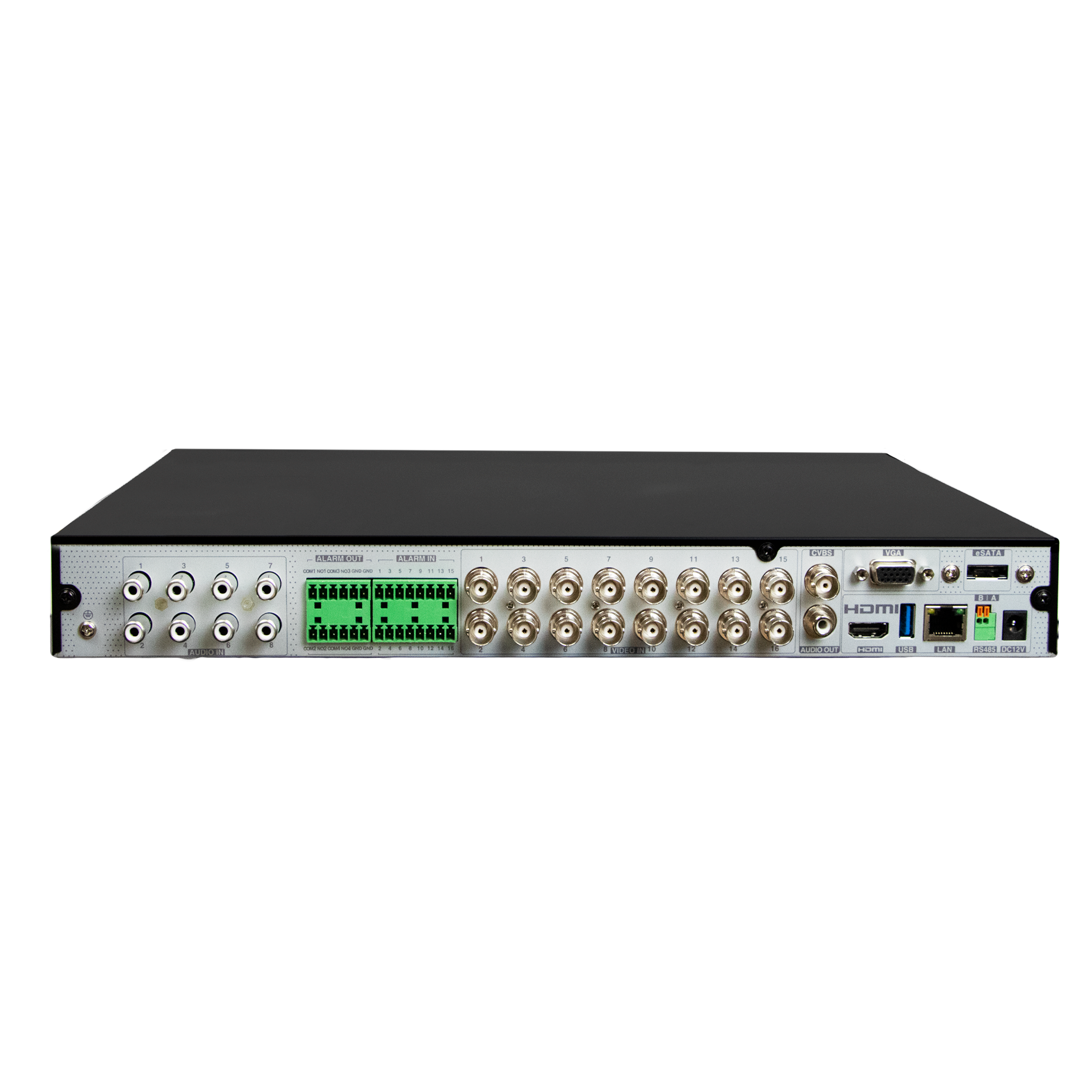

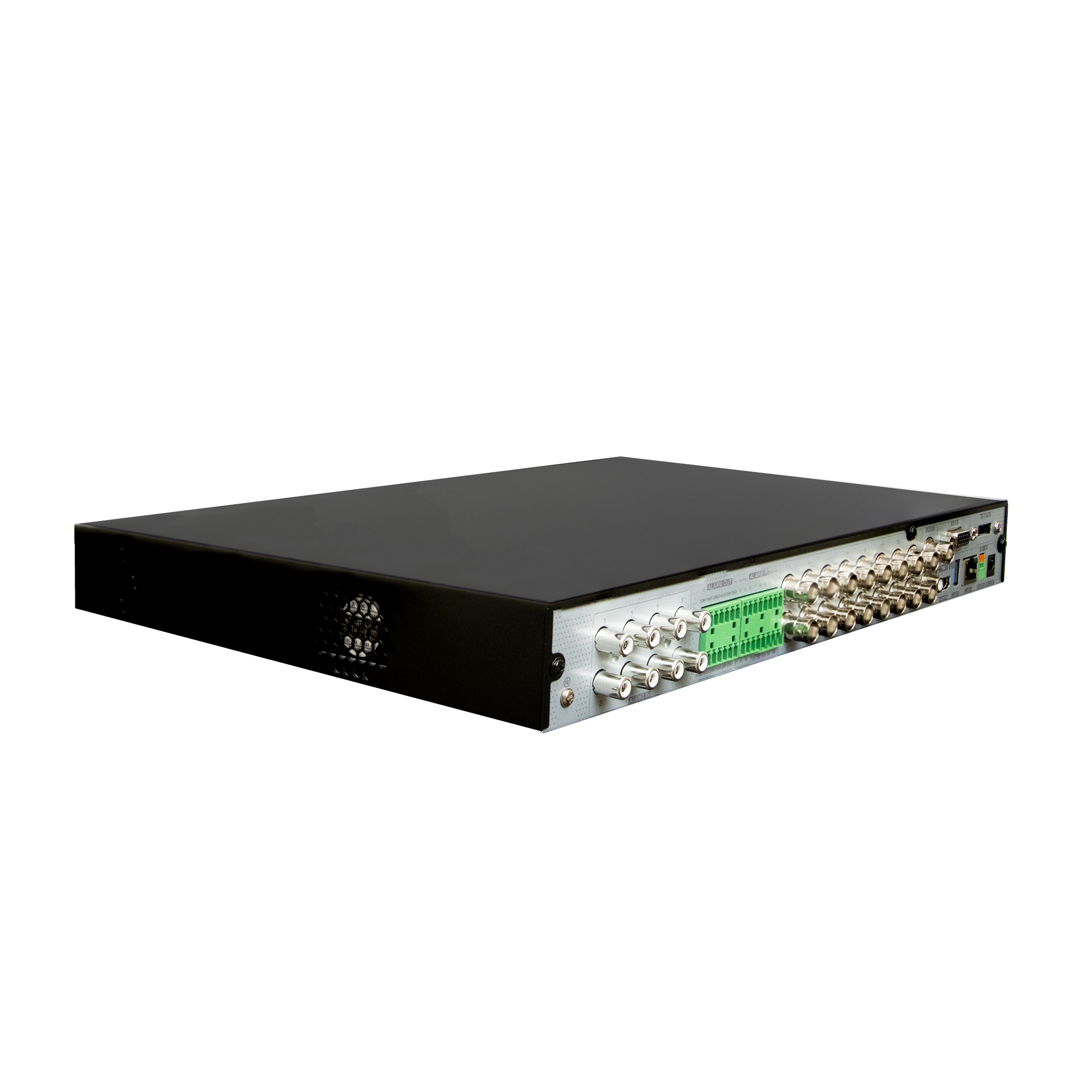

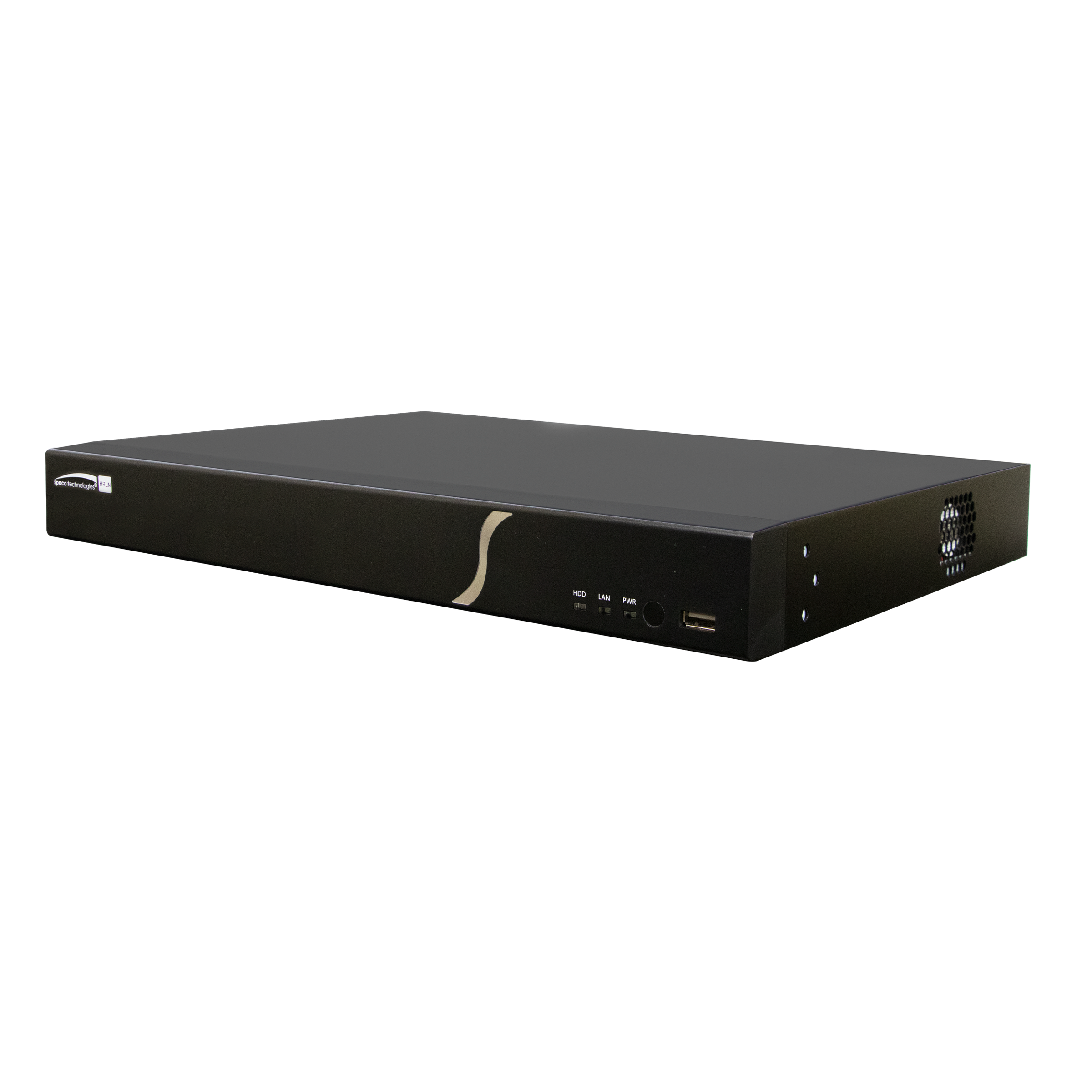

Speco - H24HRLN40TB - 24 Channel Hybrid Digital Video Recorder with, 40TB
Part number:
Price:
Product Overview
The Speco H24HRLN40TB 24 Channel Hybrid Digital Video Recorder with 40TB offers cutting-edge surveillance solutions with exceptional storage capacity. Equipped with advanced EZ Wizards for simple setup and configuration, this DVR supports high-resolution recording and remote accessibility, making it the perfect choice for robust security monitoring while ensuring ease of use.
Key Configuration
Model: H24HRLN40TB
Key Features
- • Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels.
- • H.265 compression – Store up to 2x more than H.264!.
- • 2 SATA ports for up to 40TB of storage.
- • 1 eSATA port for an additional 8TB of storage.
- • 4K HDMI out and VGA monitor output.
Installation Notes
15" x 10.6" x 1.8" (380mm x 268mm x 45mm)
| Specifications | |
| Number Of Channels | 24 Channel |
| Compression Method | H.265, H.264 |
| Mobile connectivity | Web Browser |
| External Backup | eSATA, USB |
| Harddrive Size | 40TB |
| Features | Free DDNS |
| Default Storage (HDD) | SATAx2, max 40TB per HDD |
| Network | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Details | |
| Alarm inputs and outputs | Connect up to 16 alarm devices for a comprehensive security setup. |
| System | |
| OS | Embeded Linux |
| Video | |
| Analog Input signal | HD-TVI, AHD, CVI, CVBS |
| Analog Only Input | BNC x16 |
| Configurable Analog Inputs | 8 |
| IPC Only Input | 8-CH* |
| Network Access & Transfer Bandwidth | 64/192Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| Output | HDMIx1: 4Kx2K/1920x1080/1280x1024 |
| Output | VGAx1: 1920x1080/1280/x1024/1024x768 |
| Output | BNCx1: CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx8 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate | Analog: 5MP@ 12fps (PAL/NTSC), 4MP/3MP@12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) IP: 8MP and under@ 25/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| Playback | |
| Simultaneous Playback | Max 16-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 16-CH local alarm input; Support IPC alarm input |
| Output | 4-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Mobile Device OS | Speco Blue iOS®, Android™, SecureGuard® Client |
| Other Viewing Platforms | Apple TV® and Amazon Fire TV® |
| Storage | |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Dimensions | |
| Power Supply | DC12V/4A |
| Power Consumption | ≤30W(without HDD) |
| Dimensions(WxDxH) | 15" x 10.6" x 1.8" (380mm x 268mm x 45mm) |
