Speco - H24WHRLN4TB - 24 Channel Wall Mount Hybrid Digital Video Recorder with 4TB HDD
Part number:
Price:
Product Overview

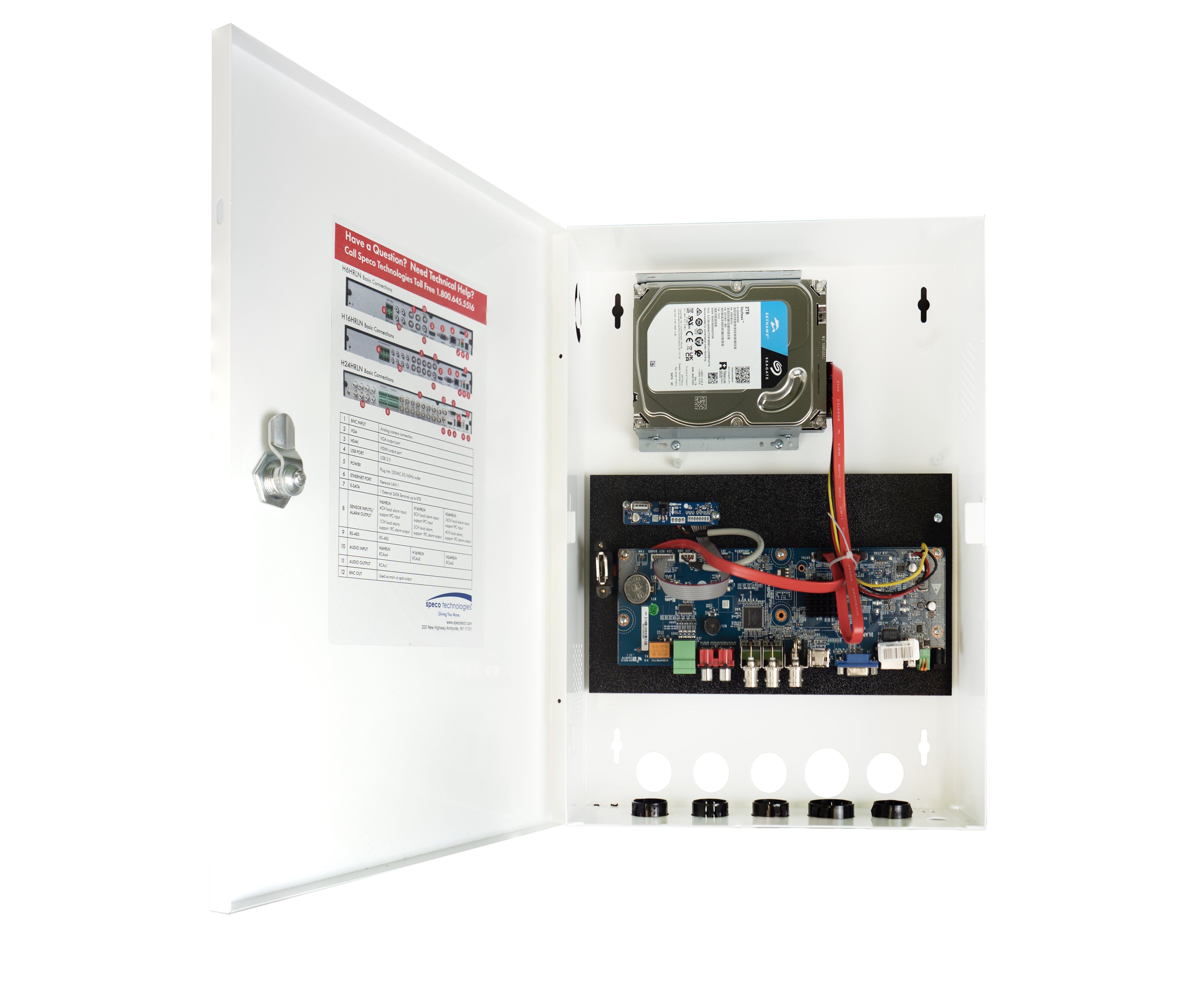

The H24WHRLN4TB from Speco is a robust 24 channel wall mount hybrid digital video recorder featuring a massive 4TB HDD. Ideal for comprehensive security monitoring, this DVR supports high-definition video up to 5MP on all channels and offers versatile connectivity options for remote viewing and data storage expansion.
Key Configuration
Model: H24WHRLN4TB
Key Features
- • Supports up to 5MP (HD-TVI + IP) on all channels.
- • H.265 compression: Store up to 2x more video footage than H.264.
- • 1 eSATA port for additional storage: Expand your storage capacity with an additional 8TB.
- • 4K HDMI out and VGA monitor output.
- • Object and line crossing detection: Receive alerts for specific activities.
| Specifications | |
| NDAA | Compliant |
| Number Of Channels | 24 Channel |
| Recording FPS (Per Channel) | 30 FPS @ 3840 × 2160 |
| Compression Method | H.265, H.264 |
| Computer Connectivity | Windows PC |
| Mobile Platform | Android, Iphone; Speco Blue iOS®, Android™, SecureGuard® Client (Specification Sheet (H24WHRLN column)) |
| Mobile connectivity | Mobile Apps, Web Browser |
| Harddrive Size | 4TB |
| Features | Audio Recording Capability, Built-In Display, Free DDNS, Multi-Zone Video Motion Detection, PTZ Support, 4K Resolution |
| Audio Input (RCA) | 4 |
| System | |
| OS | Embeded Linux |
| Video | |
| Analog Only Input | BNC x16 |
| Configurable Analog Inputs | 8 |
| IPC Only Input | 8-CH* |
| Network Access & Transfer Bandwidth | 64/192Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| Output | HDMIx1: 4Kx2K/1920x1080/1280x1024 |
| Output | VGAx1: 1920x1080/1280/x1024/1024x768 |
| Output | BNCx1: CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx8 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate | Analog: 5MP@ 12fps (PAL/NTSC), 4MP/3MP@12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) IP: 8MP and under@ 25/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| Playback | |
| Simultaneous Playback | Max 16-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 16-CH local alarm input; Support IPC alarm input |
| Output | 4-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Other Viewing Platforms | Apple TV® and Amazon Fire TV® |
| Storage | |
| HDD | SATAx2, max 40TB per HDD |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Dimensions | |
| Power Supply | DC12V/4A |
| Power Consumption | ≤30W(without HDD) |
