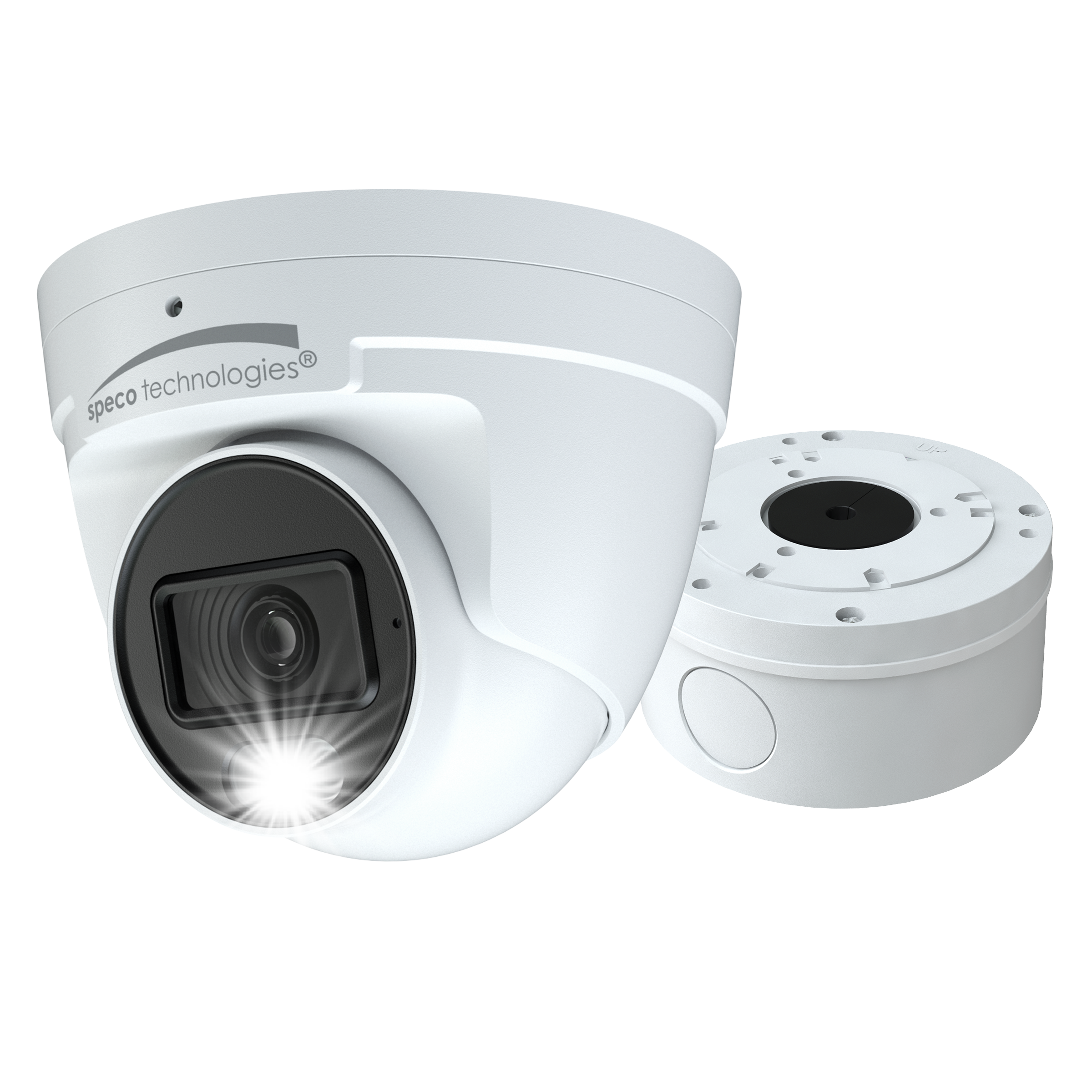

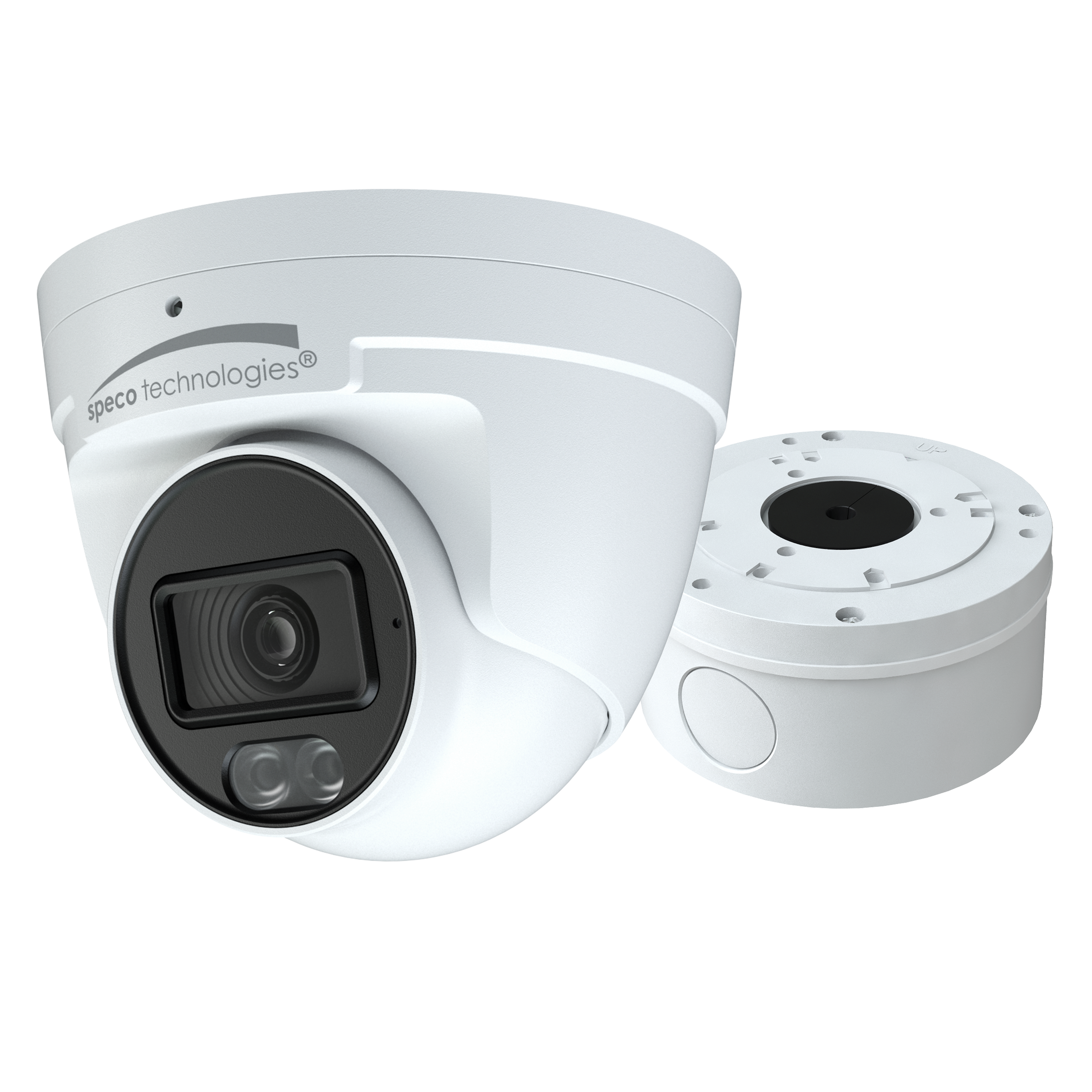

Speco - H2AT2 - 2MP HD-TVI Turret Camera with Built in Microphone and White Light Intensifier®
Part number:
Price:
Product Overview
2MP HD-TVI Turret Camera with Built in Microphone and White Light Intensifier®
Key Configuration
Model: H2AT2
Key Features
- • Full HD resolution over Coax.
- • IP67 compliant, weather resistant.
- • 24/7 full color image with White Light LED’s.
- • Audio over coax capability works with Speco HRN series(6ch and 24ch) and HRLN Series.
- • NDAA Compliant.
Installation Notes
3.72"(D) x 3.26"(H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 1920 (H) x 1080 (V) |
| Video Output | AHD/TVI/CVI/CVBS |
| Audio | 1CH Built-In Mic |
| Image System | PAL/NTSC |
| Electronic Shutter Speed | Auto |
| Frame Rate | 30fps (60Hz); 25fps (50Hz) |
| Min. Illumination | 0 lux (LED ON) |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Function Control | OSD (UTC Control) |
| Smart LED | Manual or auto mode |
| ICR | No |
| WDR | Digital WDR |
| Digital NR | Yes, 2D DNR |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front Light Compensation | No |
| Defog | No |
| HLC | Yes |
| Sharpness | Yes |
| Contrast | Yes |
| Defect Correction | Auto |
| Image Setting | Yes |
| Angle Adjustment | Pan: 0°~360°; Title: 0°~75°; Rotation: 0°~360° |
| Operating & Unit Specifications | |
| Power | DC 12V (± 15%) |
| Power Consumption | LED OFF: < 1W; LED ON: < 4W |
| Operating Temperature | -22°F ~ 122°F |
| Operating Humidity | 10% ~ 90% (relative humidity) |
| Unit Dimensions | 3.72"(D) x 3.26"(H) |
| Weight | Approx. 0.86 lbs |
