Speco - H4FB2M - 4MP Flexible Intensifier® HD-TVI Bullet Camera with Junction Box, Dual Voltage
Part number:
Price:
Product Overview

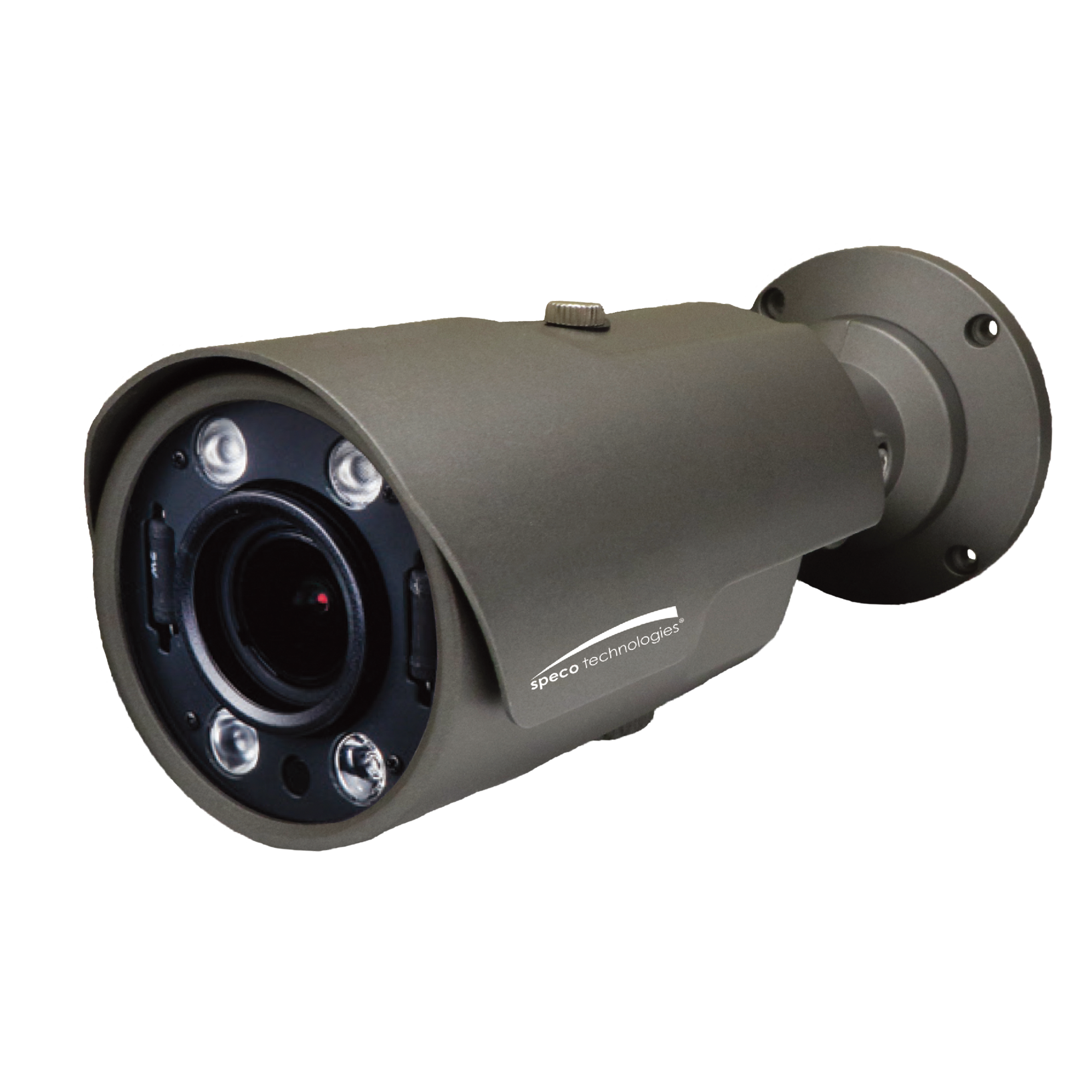

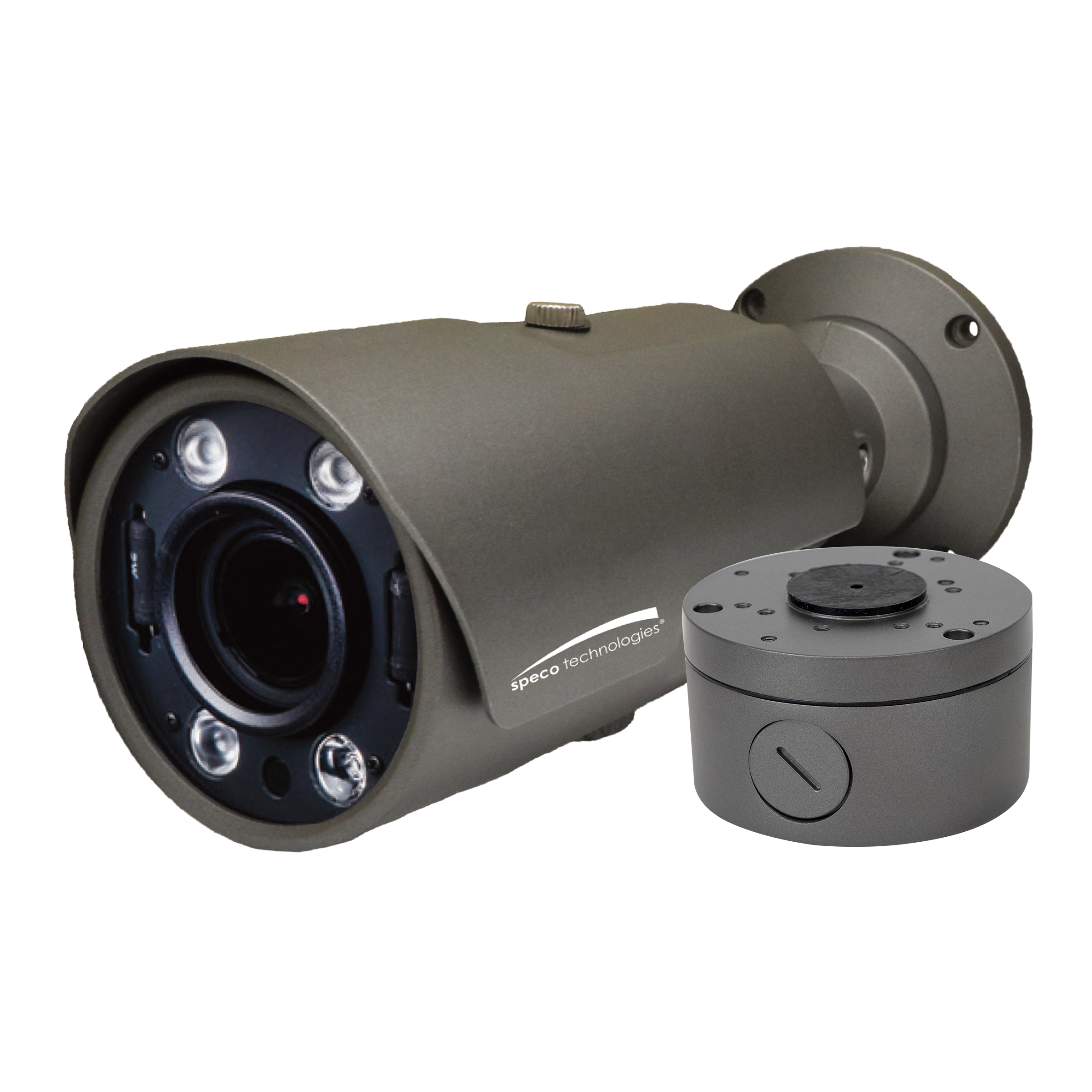

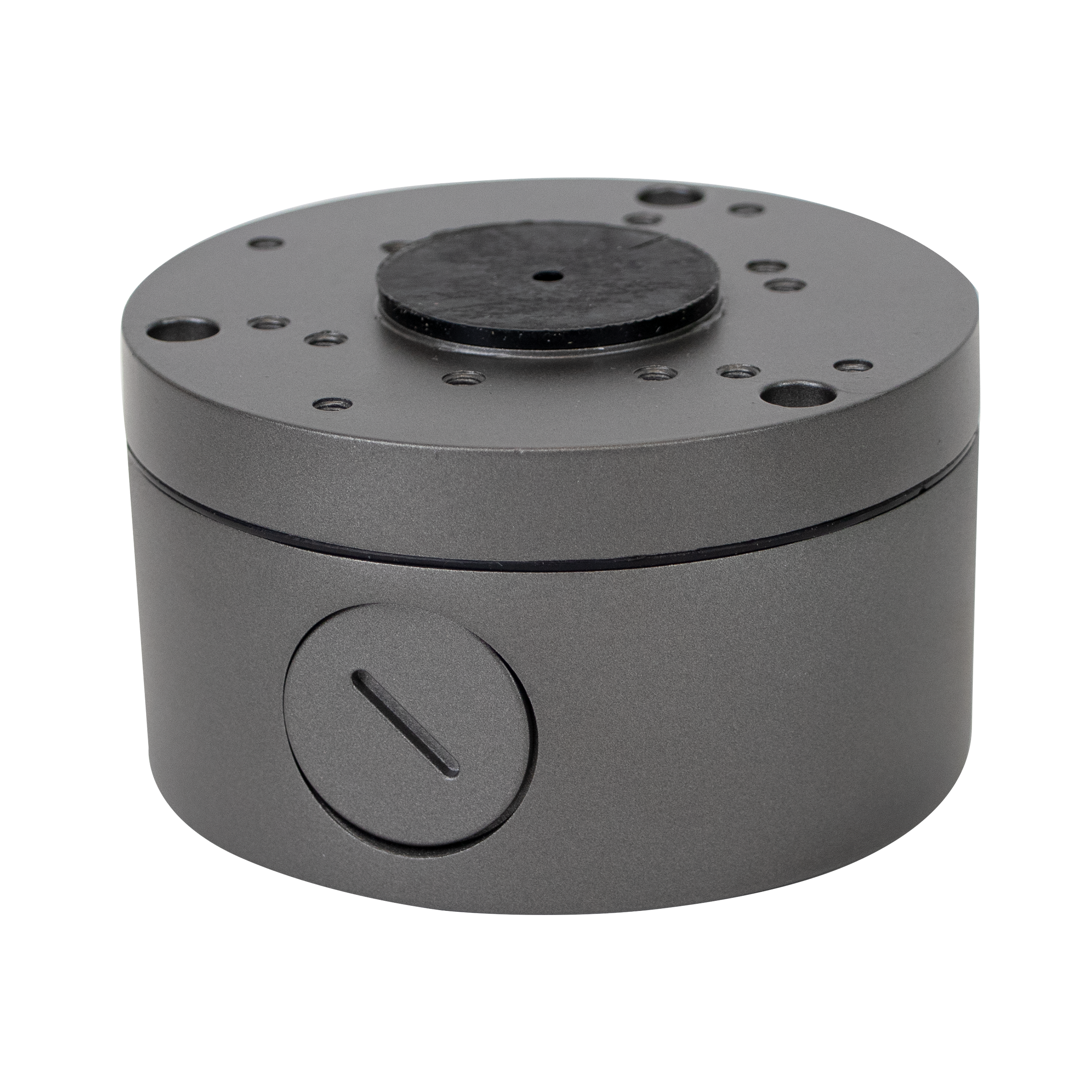

4MP Flexible Intensifier® HD-TVI Bullet Camera with Junction Box, Dual Voltage
Key Configuration
Model: H4FB2M
Key Features
- • Flexible Intensifier Technology® fits any lighting application.
- • Supports 4MP @ 30FPS.
- • True WDR operation.
- • Adaptive IR LED’s.
- • Presets: Outdoor, Low Light, Hallway, Lobby, Elevator, Indoor.
Installation Notes
9.64" (L) × 3.72" (Dia.)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | 1/2.8" SONY Starvis 6MP Sensor |
| Minimum Illumination | 0.00 lux (IR LED 'on') |
| Effective Pixels | 2616 (H) x 1964 (V) |
| Total Pixels | 2704 (H) x 2104 (V) |
| Scanning System | Progressive |
| S/N Ratio | More than 50dB |
| Video Output | 1.0Vp-p / 75 Ohms |
| Electronic Shutter | Auto / Manual (1/30 – 1/30,000 sec.) |
| WDR | On (Low / Middle / High) / Off |
| Day / Night | Auto / Intensifier |
| Test Monitor Output | TVI out |
| Power | 12VDC / 24VAC |
| Power Consumption | 900mA max. (DC), 700mA max. (AC) |
| Operating Temperature | -40° F – 140° F |
| Unit Dimensions | 9.64" (L) x 3.72" (Dia.) |
| Unit Weight | 2 lbs (camera), 0.9 lbs (junction box) |
| Certifications | FCC, RoHS |
Name
Description
Size
Downloads
File
Specification
0.5mb
File
User Manual
1.3mb
