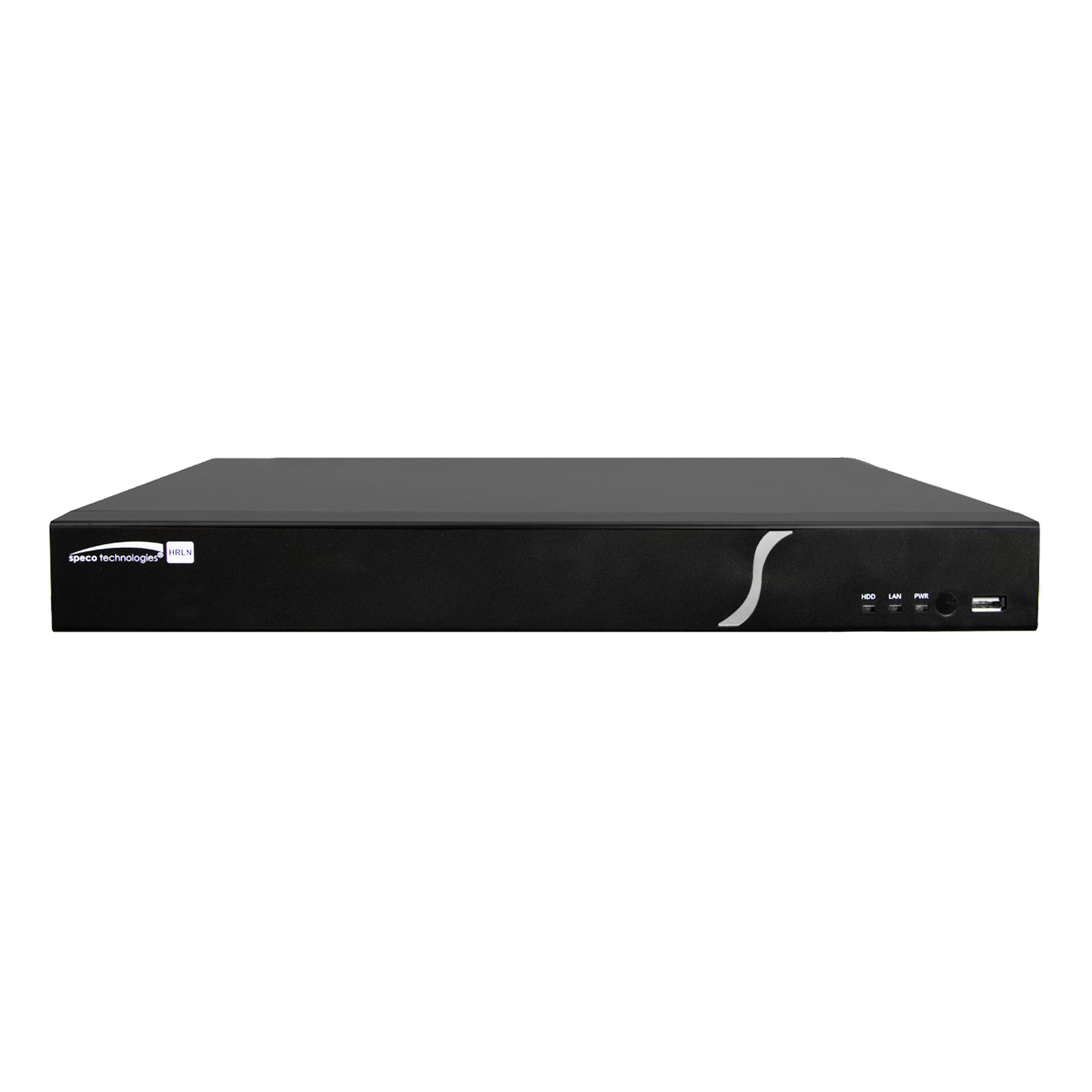

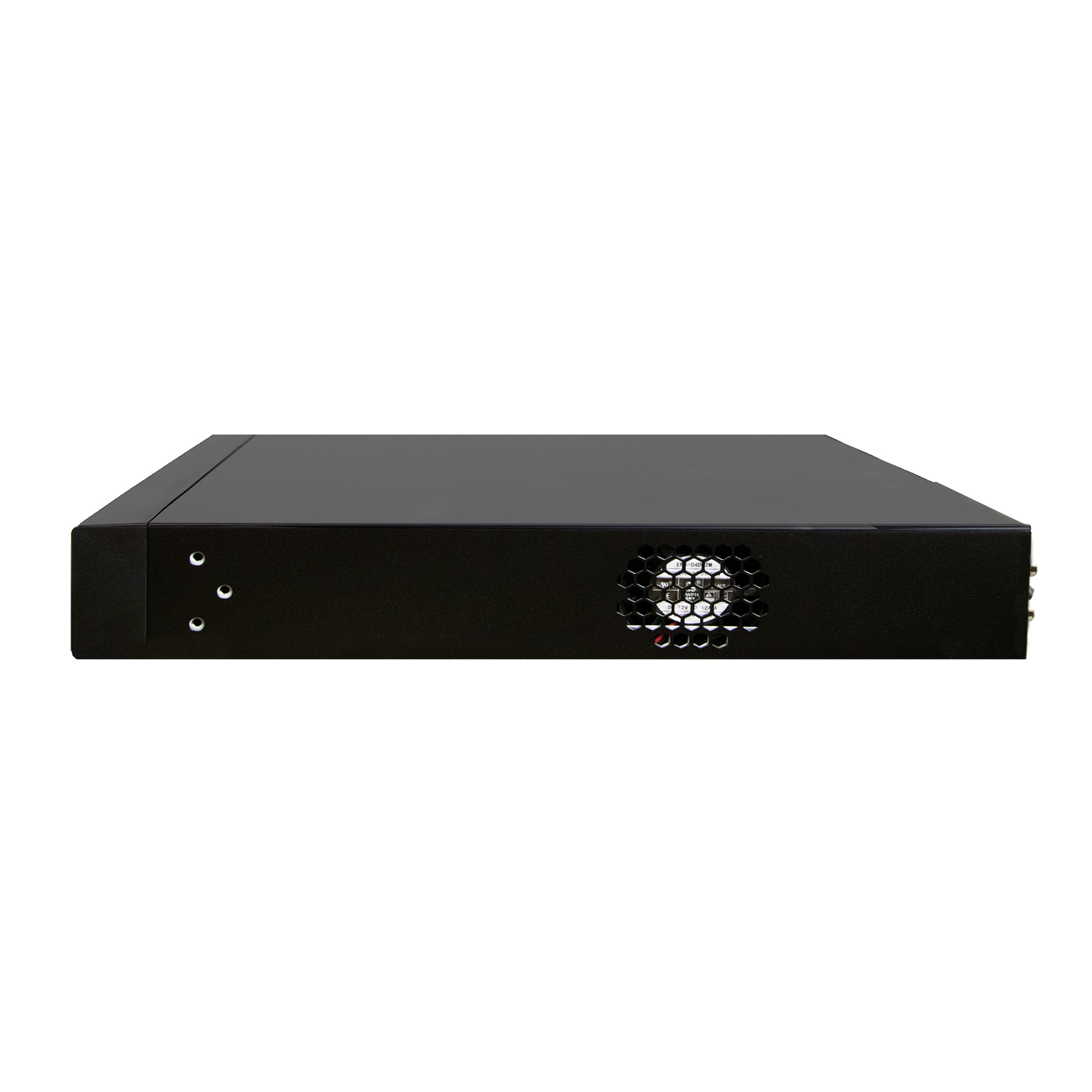

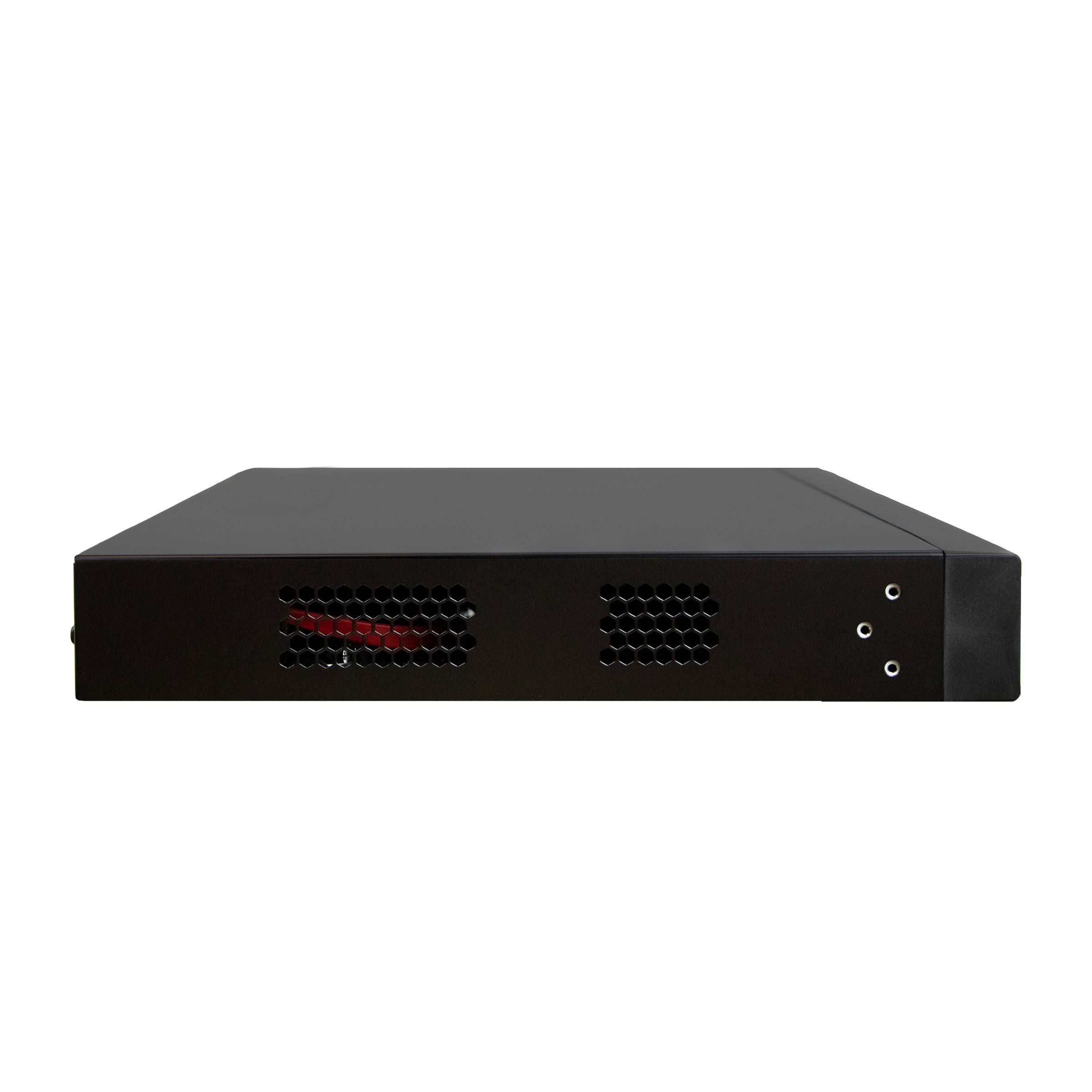

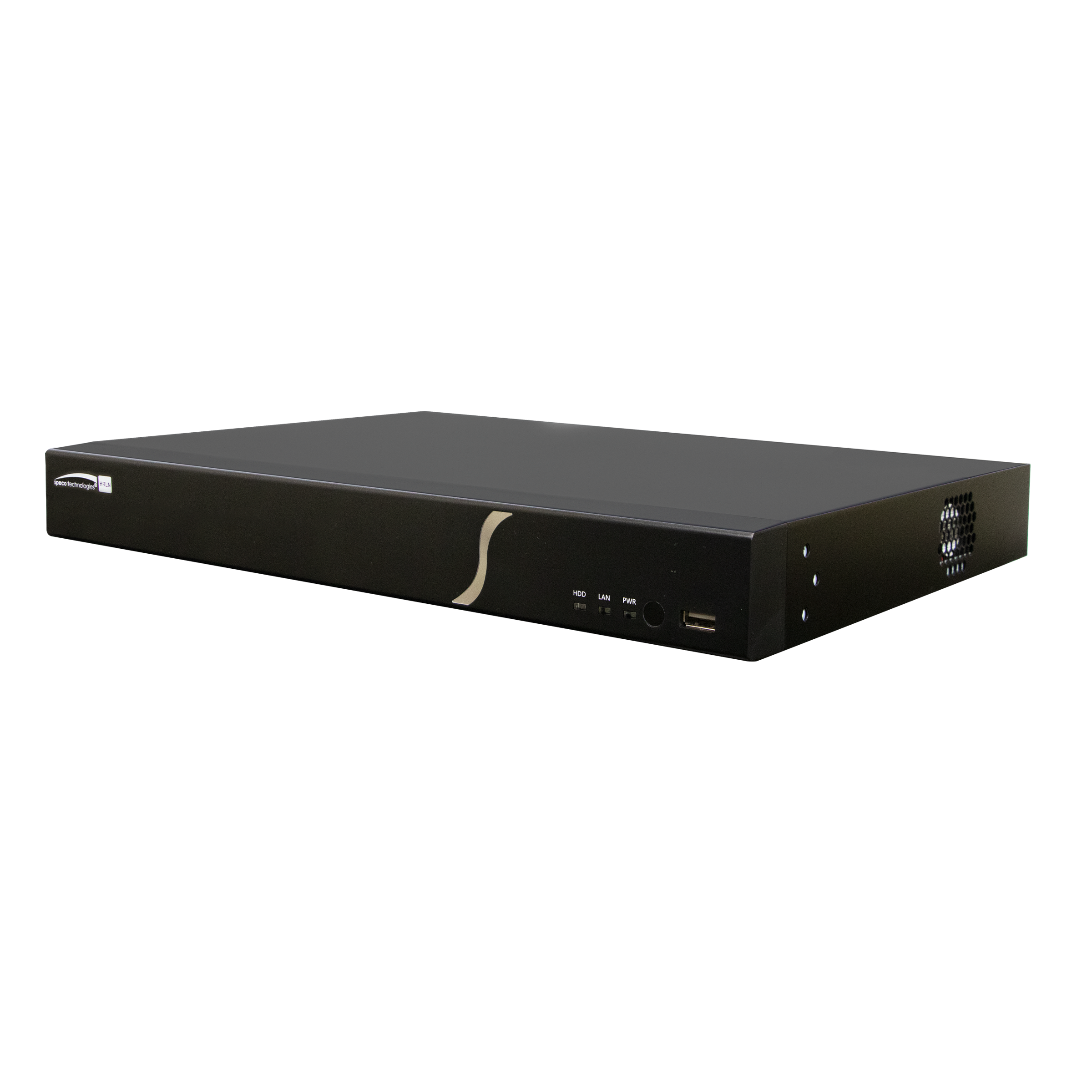

Speco - H6HRLN12TB - 6 Channel Hybrid Recorder 4 Hybrid (TVI or IP) + 2 IP, NDAA, 12TB
Part number:
Price:
Product Overview
The H6HRLN12TB from Speco is a powerful 6 channel hybrid recorder that supports 4 hybrid (TVI or IP) + 2 IP cameras, includes NDAA compliance, and offers a massive 12TB storage capacity. With advanced features like H.265 compression and Smart Search functionality, this recorder ensures efficient storage and easy accessibility of your surveillance footage.
Key Configuration
Model: H6HRLN12TB
Key Features
- • H.265 compression: Store up to 2x more video footage than traditional H.264, maximizing your storage space and reducing costs.
- • 1 eSATA port: Expand your storage options with an additional 8TB capacity, accommodating future needs.
- • 4K HDMI out: Achieve crystal-clear video output through 4K HDMI and VGA monitor support for enhanced viewing experiences.
- • Advanced detection: Benefit from object and line crossing detection, allowing for proactive alerts for unusual activities.
- • Smart Search: Quickly locate important footage by specifying areas of interest for enhanced security management.
Installation Notes
11.8" x 9.8" x 1.8" (300mm x 248mm x 45mm)
| Full Specifications | |
| Model | H6HRLN12TB |
| Channels | 6 |
| Hybrid Support | 4 Hybrid (TVI or IP) + 2 IP |
| Storage Capacity | 12TB (expandable with 1 eSATA port for additional 8TB) |
| Video Output | 4K HDMI and VGA |
| Compression Codec | H.265 |
| Remote Access | Web Browser, Apple TV, Amazon Fire TV, mobile device |
| Audio Support | 2-way audio communication |
| Alarm Inputs/Outputs | 4/8/16 inputs, 1/2/4 outputs |
| Power Supply | AC 100-240V |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| System | |
| Compression Standard | H.265 |
| OS | Embeded Linux |
| Video | |
| Analog Input signal | HD-TVI, AHD, CVI, CVBS |
| Analog Only Input | BNC x4 |
| Configurable Analog Inputs | 4 |
| IPC Only Input | 2CH (up to 6-CH)* |
| Network Access & Transfer Bandwidth | 16/40Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| HDMIx1 | 4Kx2K/1920x1080/1280x1024 |
| VGAx1 | 1920x1080/1280/x1024/1024x768 |
| BNCx1 | CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx4 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate - Analog | 5MP@ 12fps (PAL/NTSC), 4MP/3MP@ 12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) |
| Frame Rate - IP | 8MP@ 20fps (PAL/NTSC), Under 8MP@ 25fps/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| IP Input Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P@25fps/30fps |
| Playback | |
| Simultaneous Playback | Max 4-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Output | 1-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Mobile Device OS | Speco Blue iOS®, Android™, SecureGuard® Client |
| Storage | |
| HDD | SATAx1, max 20TB per HDD |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Power | |
| Power Consumption | ≤10W(without HDD) |
| Physical & Environment | |
| Dimensions (WxDxH) | 11.8" x 9.8" x 1.8" (300mm x 248mm x 45mm) |
| Working Environment | 14°F to 122°F (-10°C" to 50°C") |
Name
Description
Size
Downloads
File
User Manual
6.5mb
File
Specification Sheet
0.8mb
