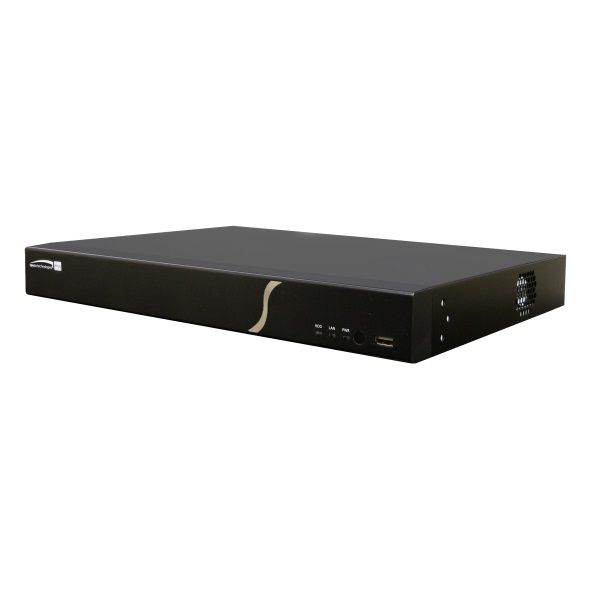

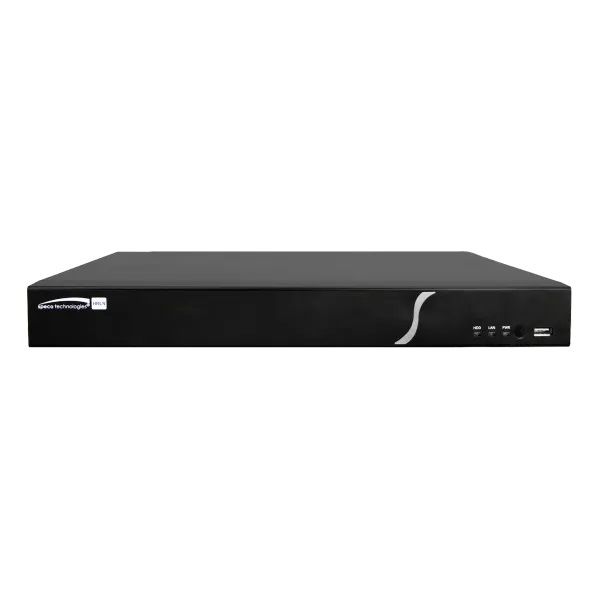

Speco - H6HRLN20TB - 6 Channel Hybrid Digital Video Recorder with, 20TB
Part number:
Price:
Product Overview
The Speco H6HRLN20TB is a 6 Channel Hybrid Digital Video Recorder featuring a massive 20TB storage capacity. Designed for ease of use, it allows for quick setup, seamless integration with Speco IP cameras, and efficient operation with advanced features tailored for optimal video management and monitoring. Its innovative design is complemented by powerful performance specifications, making it an ideal choice for any surveillance application.
Key Configuration
Model: H6HRLN20TB
Key Features
- • Supports up to 5MP (HD-TVI + IP) on all channels and 4K on 1 channel.
- • H.265 compression – Store up to 2x more than H.264!.
- • 2 SATA ports for up to 40TB of storage.
- • 1 eSATA port for an additional 8TB of storage.
- • 4K HDMI out and VGA monitor output.
Installation Notes
11.8" x 9.8" x 1.8" (300mm x 248mm x 45mm)
| Specifications | |
| Number Of Channels | 6 Channel |
| Video Output Connection | HDMI, VGA |
| Compression Method | H.265, H.264 |
| Mobile connectivity | Web Browser |
| External Backup | eSATA, USB |
| Harddrive Size | 20TB |
| Features | Free DDNS |
| Default Storage (HDD) | SATAx1, max 20TB per HDD |
| Network | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| System | |
| OS | Embeded Linux |
| Video | |
| Analog Input signal | HD-TVI, AHD, CVI, CVBS |
| Analog Inputs | BNC x4, configurable |
| IPC Only Input | 2CH (up to 6-CH)* |
| Network Access & Transfer Bandwidth | 16/40Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| HDMIx1 | 4Kx2K/1920x1080/1280x1024 |
| VGAx1 | 1920x1080/1280/x1024/1024x768 |
| BNCx1 | CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx4 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate - Analog | 5MP@ 12fps (PAL/NTSC), 4MP/3MP@ 12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) |
| Frame Rate - IP | 8MP@ 20fps (PAL/NTSC), Under 8MP@ 25fps/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| Playback | |
| Simultaneous Playback | Max 4-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Output | 1-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Mobile Device OS | Speco Blue iOS®, Android™, SecureGuard® Client |
| Storage | |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Power | |
| Power Consumption | ≤10W(without HDD) |
| Physical & Environment | |
| Dimensions (WxDxH) | 11.8" x 9.8" x 1.8" (300mm x 248mm x 45mm) |
| Working Environment | 14°F to 122°F (-10°C" to 50°C") |
