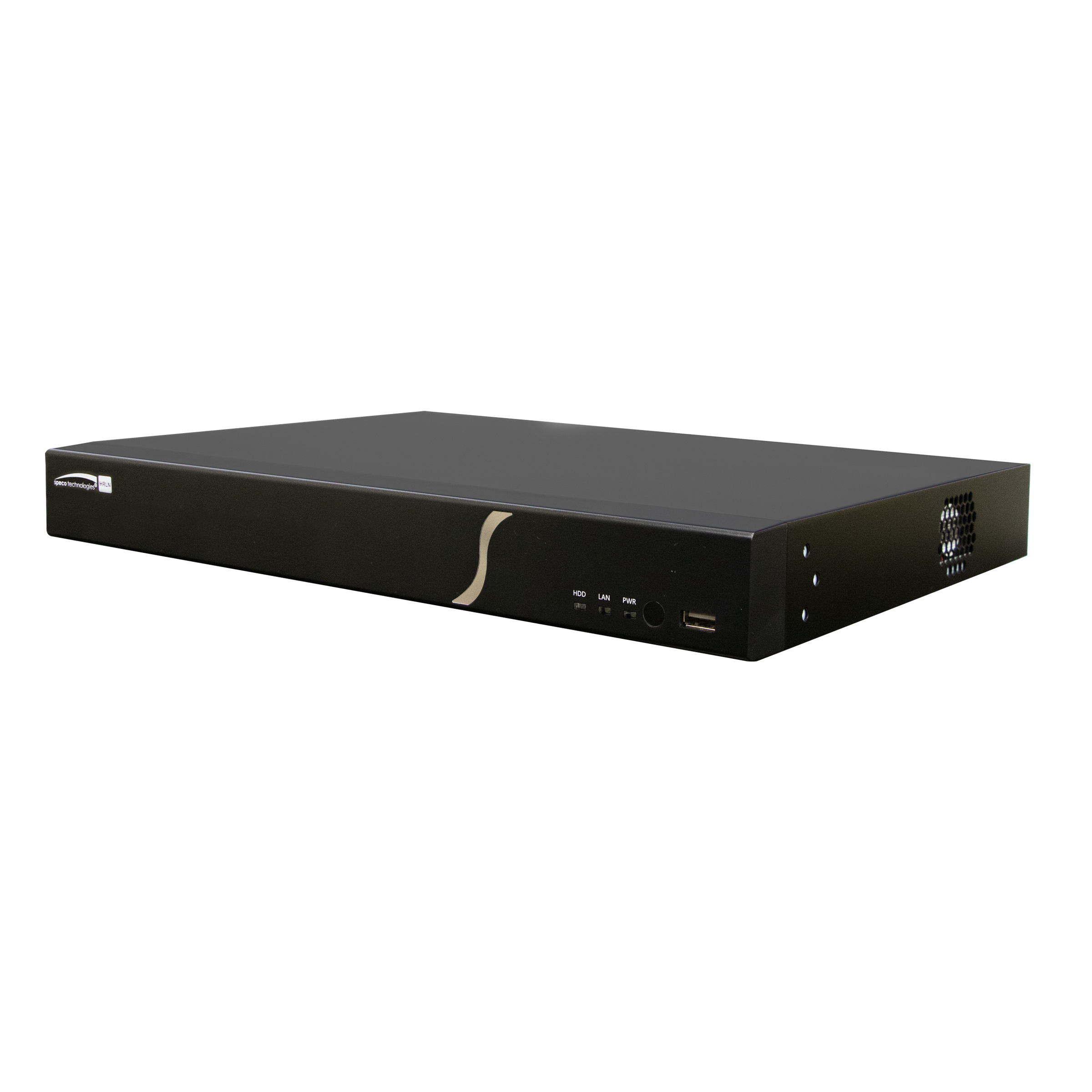

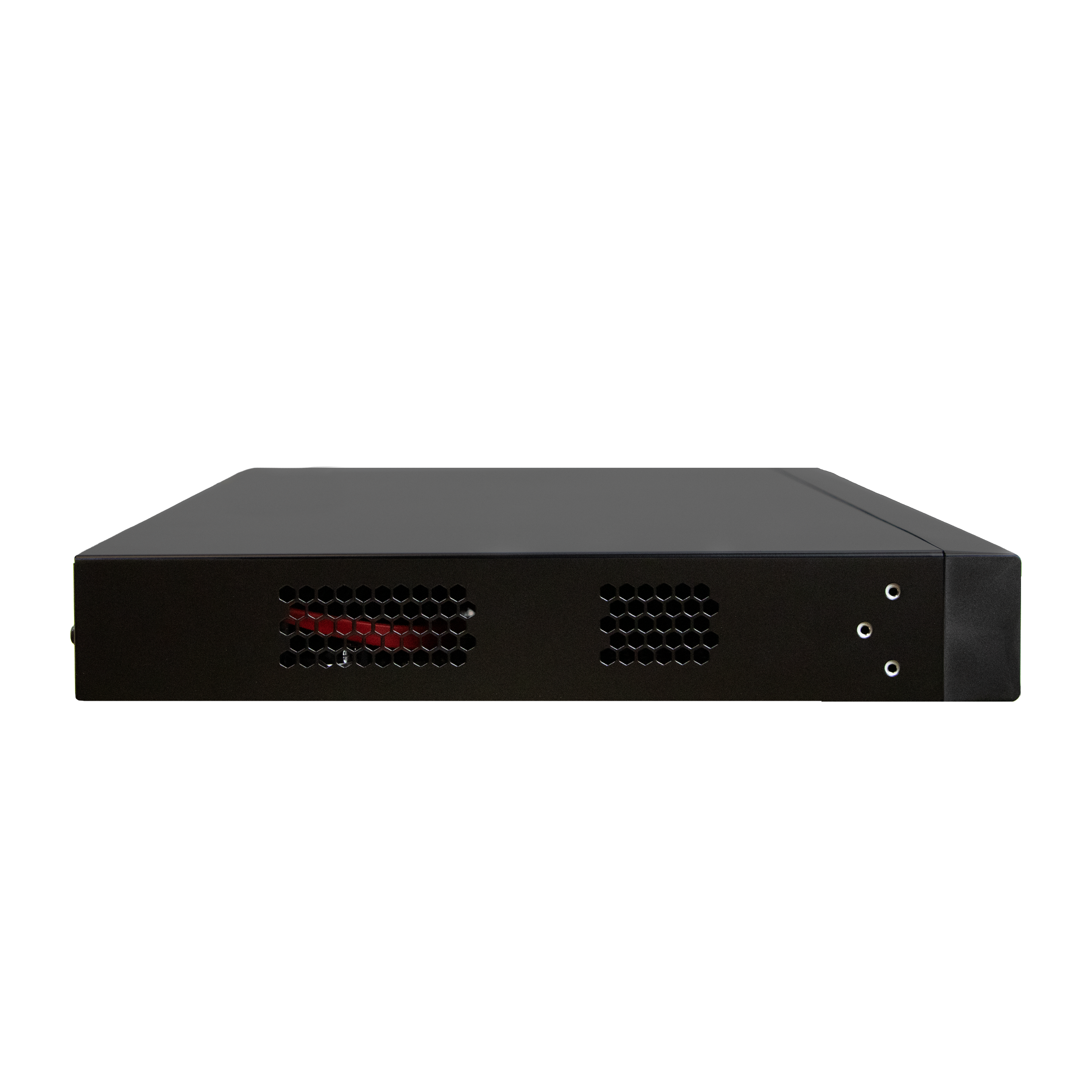

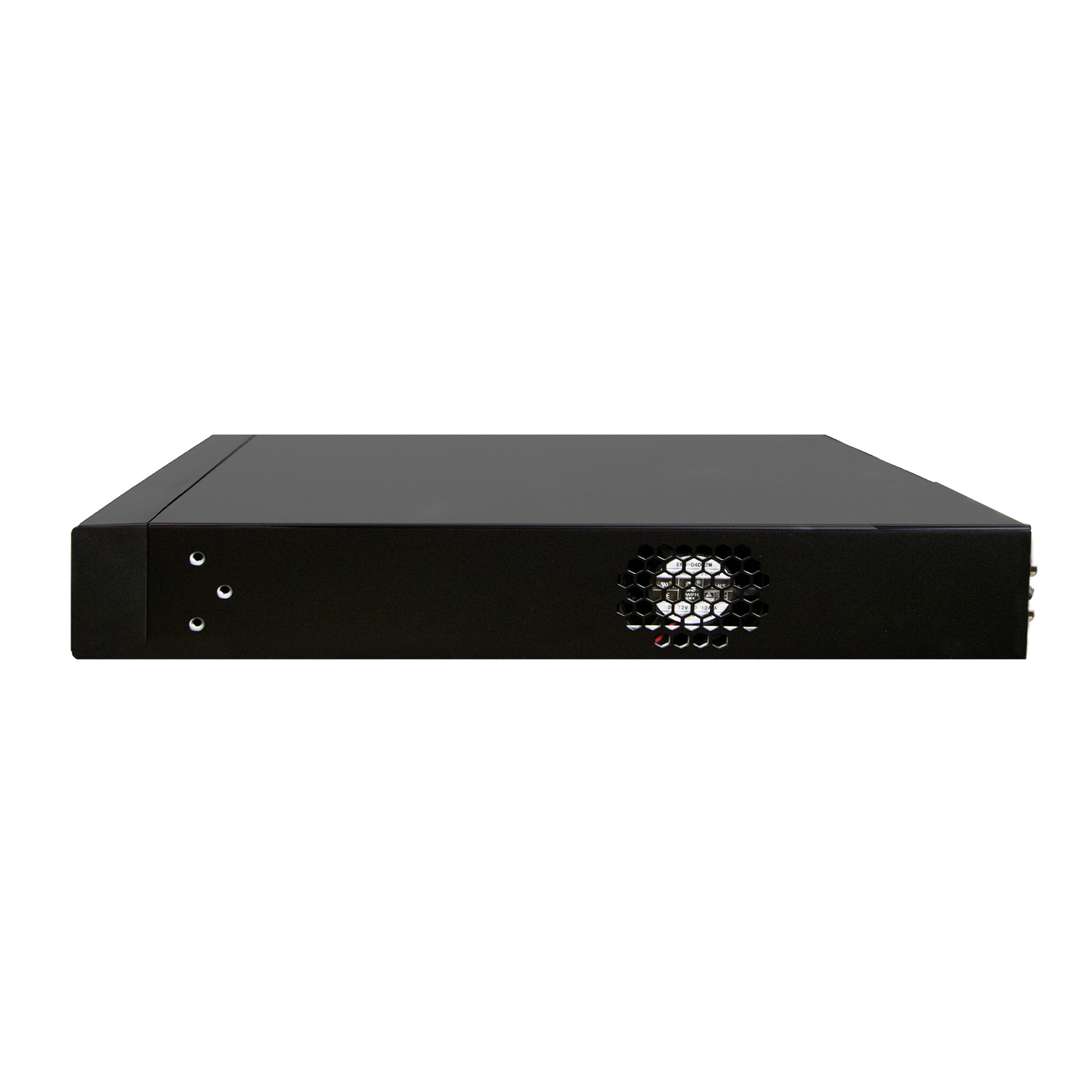

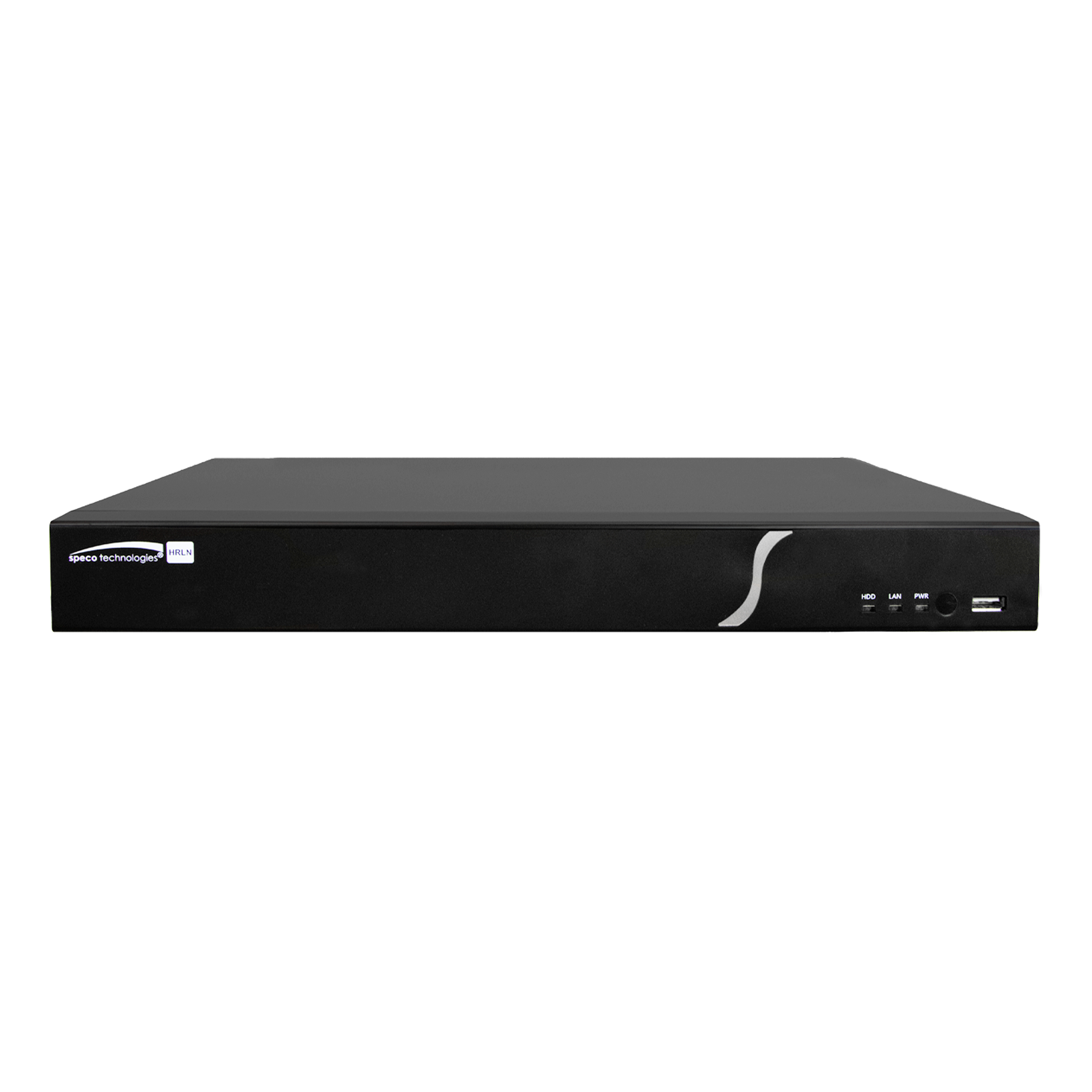

Speco - H6HRLN2TB - 6 Channel Hybrid Recorder 4 Hybrid (TVI or IP) + 2 IP, NDAA, 2TB
Part number:
Price:
Product Overview
The H6HRLN2TB from Speco is a versatile 6 channel hybrid recorder that accommodates 4 hybrid (TVI or IP) cameras and 2 IP inputs, providing enhanced surveillance capability. With NDAA compliance and a built-in 2TB storage, it boasts advanced features like H.265 compression, smart search functionality, and remote viewing capabilities, making it ideal for both home and enterprise security needs.
Key Configuration
Model: H6HRLN2TB
Key Features
- • H.265 compression - Store up to 2x more than H.264.
- • 1 eSATA port for an additional 8TB of storage.
- • 4K HDMI out and VGA monitor output.
- • Object and line crossing detection and alerts.
- • Smart Search - Specify a region on the camera view and search on changes in that area.
Installation Notes
11.8" x 9.8" x 1.8" (300mm x 248mm x 45mm)
| Full Specifications | |
| Model | H6HRLN2TB |
| Channels | 6 (4 Hybrid + 2 IP) |
| Storage Capacity | 2TB (expendable via eSATA) |
| Compression Format | H.265 |
| Video Output | 4K HDMI, VGA |
| Audio Communication | 2-way (speaker required) |
| Alarm Support | 4/8/16 inputs, 1/2/4 outputs |
| Remote Access | Web, Apple TV, Amazon Fire TV, Mobile |
| Recording Modes | Continuous, Motion, Analytics, Sensor |
| Export Method | Via USB |
| Smart Features | Object detection, Smart Search, Bookmarking |
| Health Monitoring | S.M.A.R.T Technology for HDD |
| System | |
| Compression Standard | H.265 |
| OS | Embeded Linux |
| Video | |
| Analog Input signal | HD-TVI, AHD, CVI, CVBS |
| Analog Only Input | BNC x4 |
| Configurable Analog Inputs | 4 |
| IPC Only Input | 2CH (up to 6-CH)* |
| Network Access & Transfer Bandwidth | 16/40Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| HDMIx1 | 4Kx2K/1920x1080/1280x1024 |
| VGAx1 | 1920x1080/1280/x1024/1024x768 |
| BNCx1 | CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx4 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate - Analog | 5MP@ 12fps (PAL/NTSC), 4MP/3MP@ 12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) |
| Frame Rate - IP | 8MP@ 20fps (PAL/NTSC), Under 8MP@ 25fps/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| IP Input Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P@25fps/30fps |
| Playback | |
| Simultaneous Playback | Max 4-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Output | 1-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Mobile Device OS | Speco Blue iOS®, Android™, SecureGuard® Client |
| Storage | |
| HDD | SATAx1, max 20TB per HDD |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Power | |
| Power Supply | DC12V/2A |
| Power Consumption | ≤10W(without HDD) |
| Physical & Environment | |
| Dimensions (WxDxH) | 11.8" x 9.8" x 1.8" (300mm x 248mm x 45mm) |
| Working Environment | 14°F to 122°F (-10°C" to 50°C") |
