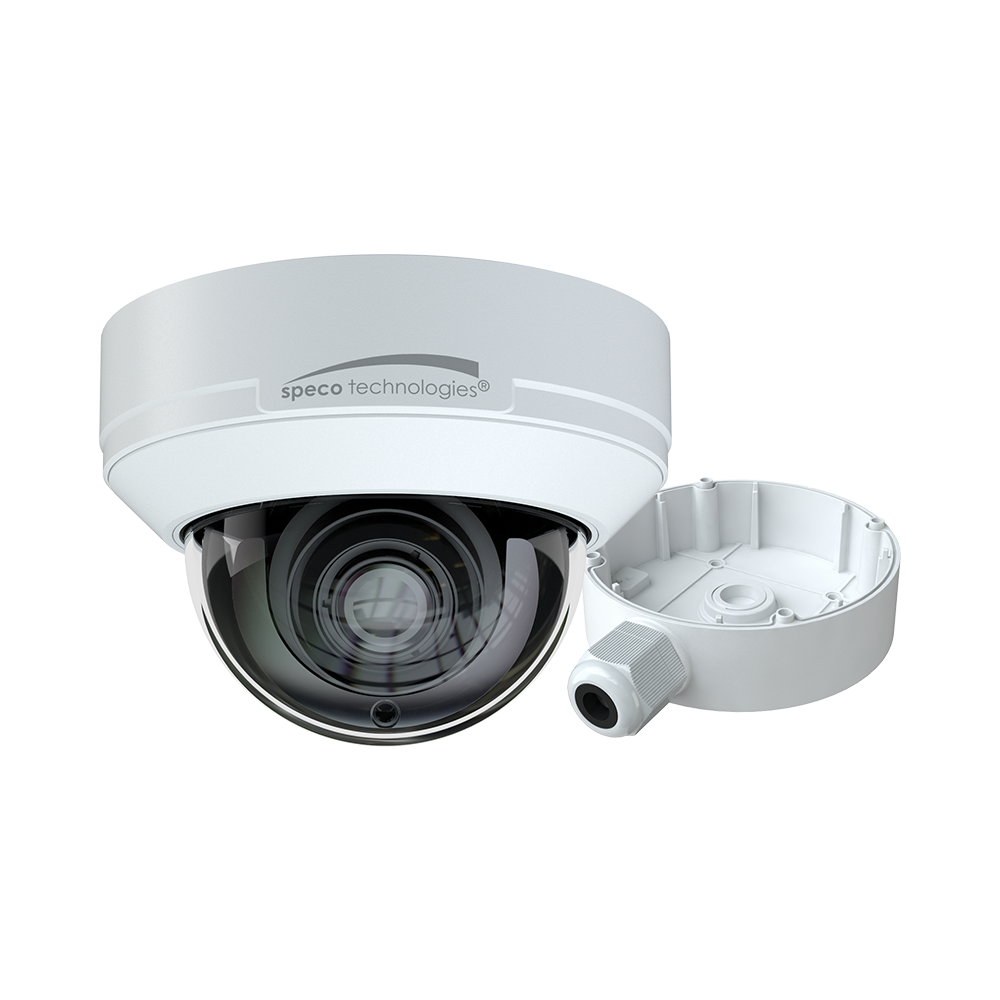

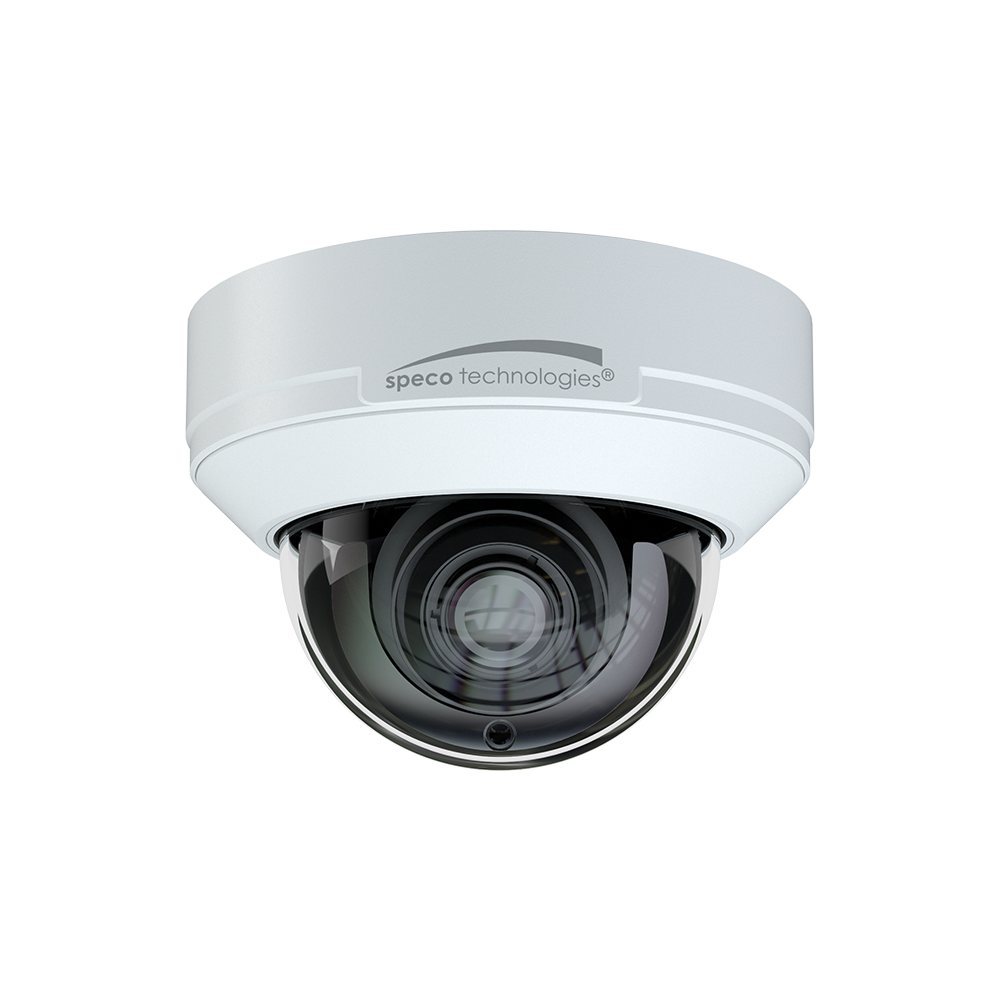

Speco - H8D8M - 4K (8MP) HD-TVI IR Motorized Dome Camera
Part number:
Price:
Product Overview
4K (8MP) HD-TVI IR Motorized Dome Camera with 2.8-12mm motorized lens.
Key Configuration
Model: H8D8M
Key Features
- • 30 built-in IR LEDs.
- • Supports up to 8MP @15fps.
- • Signal distance up to 1600 ft.
- • Motorized lens.
- • Full OSD operation through UTC (up the coax).
Installation Notes
5.61" (Dia.) x 3.95" (L)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 8MP |
| Camera Specifications | |
| Image Sensor | 1/2.5" CMOS |
| Resolution | 8MP: 3840 x 2160 |
| Frame rate | 15fps |
| Video Output | TVI / CVI / AHD / CVBS |
| Minimum Illumination | Color: 0.01lux @ F1.2 AGC ON: B/W: 0 lux with IR |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Image System | PAL/NTSC |
| Electronic Shutter | Auto |
| IR Range | 98' (depending on scene reflection) |
| Day/Night | IR cut filter |
| Digital WDR | No |
| 3D NR | Yes |
| AGC | No |
| AWB | Yes |
| BLC | Yes |
| Defog | No |
| LSC | No |
| Saturation | Yes |
| Sharpness | Yes |
| Contrast | Yes |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | 11 languages |
| Angle Adjustment | Pan: 0° ~ 360°; Tilt: 0° ~ 77°; Rotation: 0° ~360° |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) (± 15%) |
| Power Consumption | IR OFF : (≤ 2W) IR ON: (≤ 5.5W) |
| Operating Temperature | -22°F - 122°F ; 10% ~ 90% (RH) |
| Unit Dimensions | 5.61" (Dia.) x 3.95" (L) |
| Unit Weight | 2.1 lbs. |
