Speco - H8T8M - 4K (8MP) HD-TVI IR Motorized Turret Camera
Part number:
Price:
Product Overview

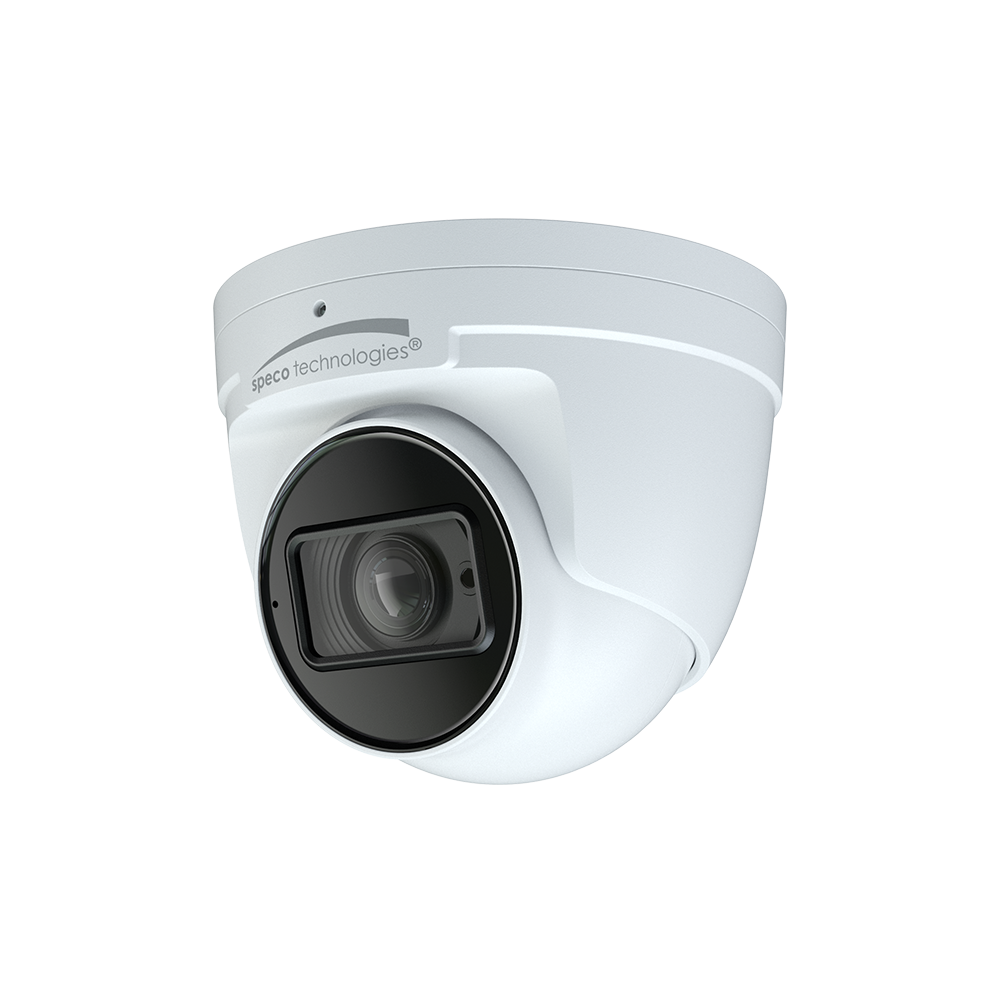

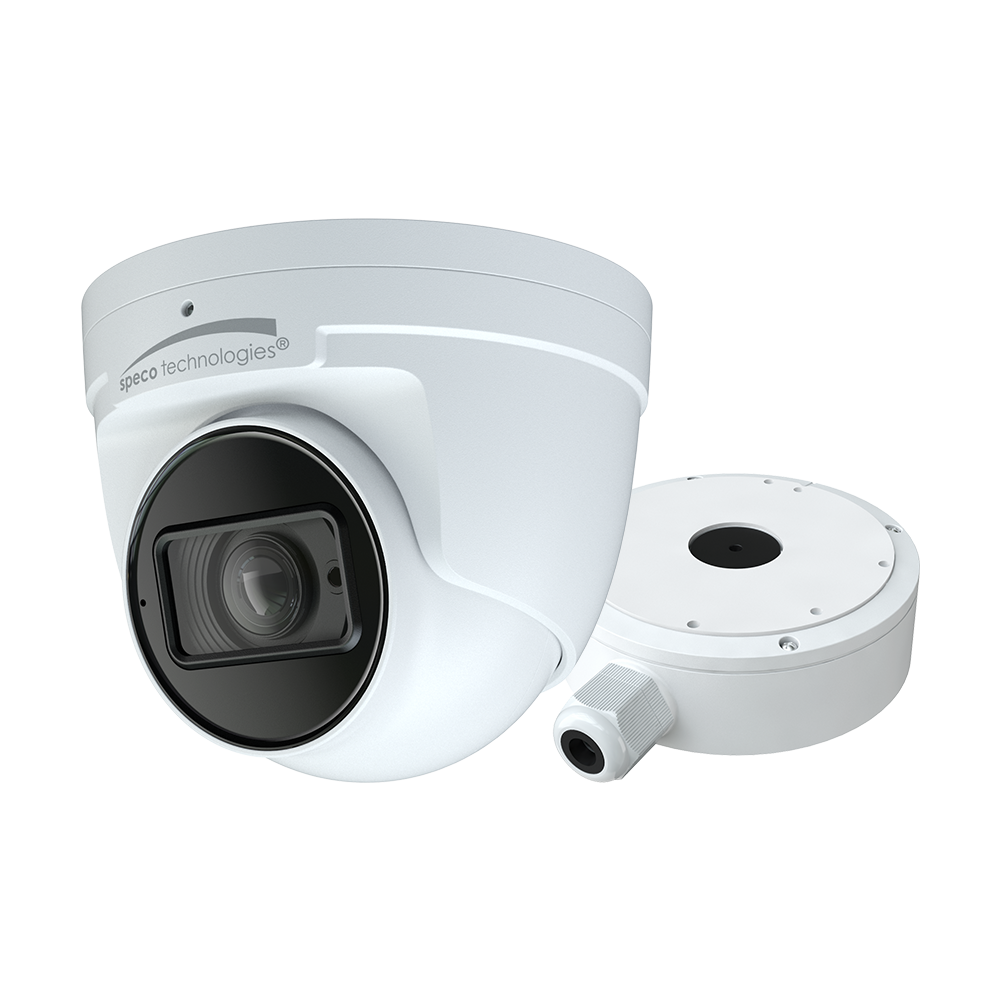

4K (8MP) HD-TVI IR Motorized Turret Camera with a 2.8-12mm motorized lens.
Key Configuration
Model: H8T8M
Key Features
- • Supports up to 8MP @15fps.
- • IR Distance: Up to 164 feet (depending on scene reflection).
- • Full OSD operation through UTC (up the coax).
- • 12VDC operations (power supply not included).
- • IP67 compliant, weather resistant.
Installation Notes
4.21” (Dia.) x 5.16” (L)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 8MP |
| Camera Specifications | |
| Image Sensor | 1/2.5" CMOS |
| Resolution | 8MP: 3840 x 2160 |
| Frame rate | 15fps |
| Video Output | TVI / CVI / AHD / CVBS |
| Minimum Illumination | Color: 0.01lux @ F1.2 AGC ON: B/W: 0 lux with IR |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Image System | PAL/NTSC |
| Electronic Shutter | Auto |
| IR Range | 98' (depending on scene reflection) |
| Day/Night | IR cut filter |
| Digital WDR | No |
| 3D NR | Yes |
| AGC | No |
| AWB | Yes |
| BLC | Yes |
| Defog | No |
| LSC | No |
| Saturation | Yes |
| Sharpness | Yes |
| Contrast | Yes |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | 11 languages |
| Angle Adjustment | Pan: 0° ~ 360°; Tilt: 0° ~ 77°; Rotation: 0° ~360° |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) (± 10%) |
| Power Consumption | IR OFF : (≤ 2W) IR ON: (≤ 4.5W) |
| Operating Temperature | -22°F - 122°F ; 10% ~ 90% (RH) |
| Unit Dimensions | 4.21" (Dia.) x 5.16" (L) |
| Unit Weight | 1.21 lbs. |
Name
Description
Size
Downloads
File
User Manual
2.2mb
File
Specification Sheet
1mb
