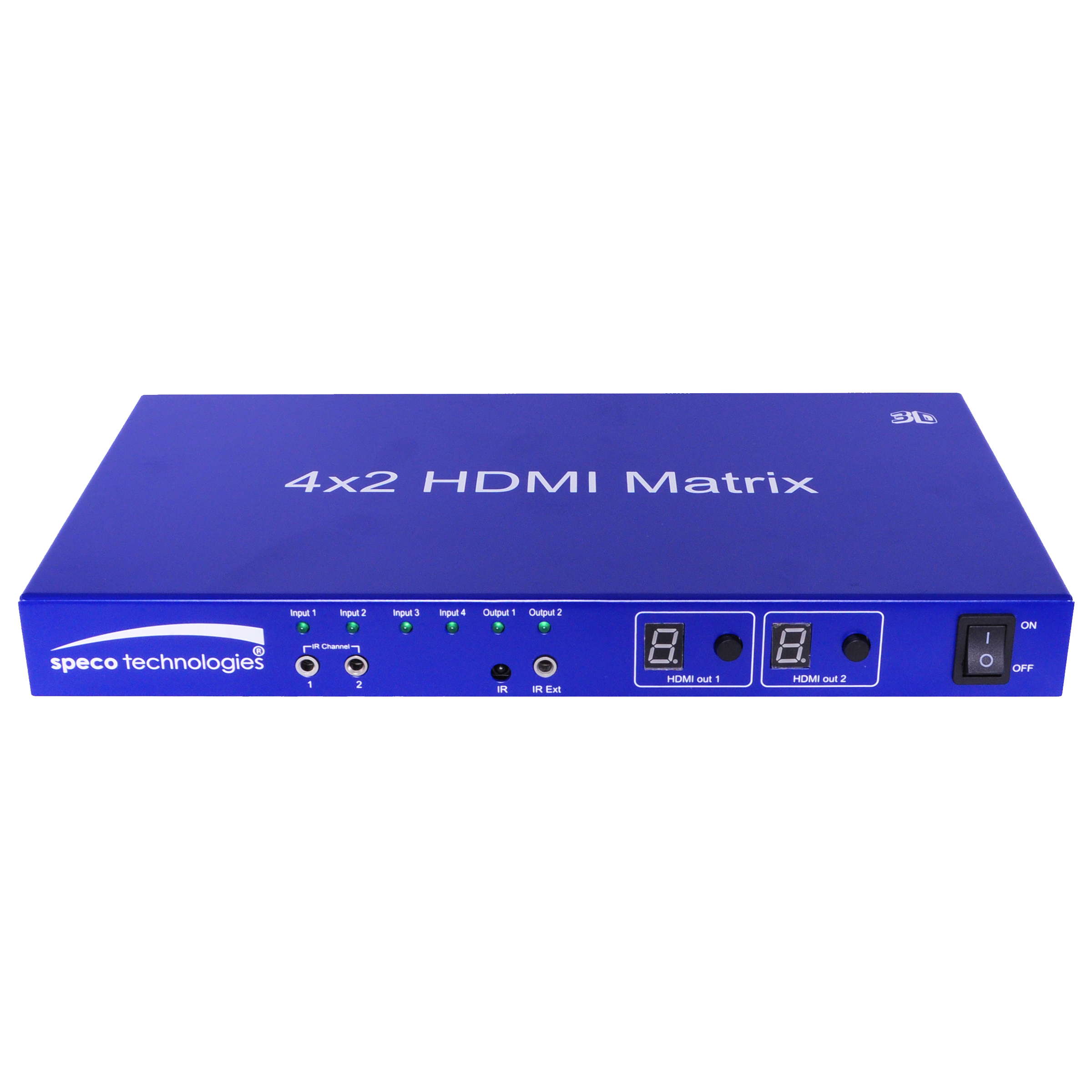

Product Overview
• Takes 4 HDMI sources and divides them to 2 HDMI devices • HDMI 1.4a compliant • Supports 3D HDMI signals • Supports resolutions up to and including 1080p • Supports DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3 • Supports HDCP 1.2 • Supports simultaneous digital audio output: Stereo, Toslink and Coax • Includes IR remote control **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: HD4MAT
Key Features

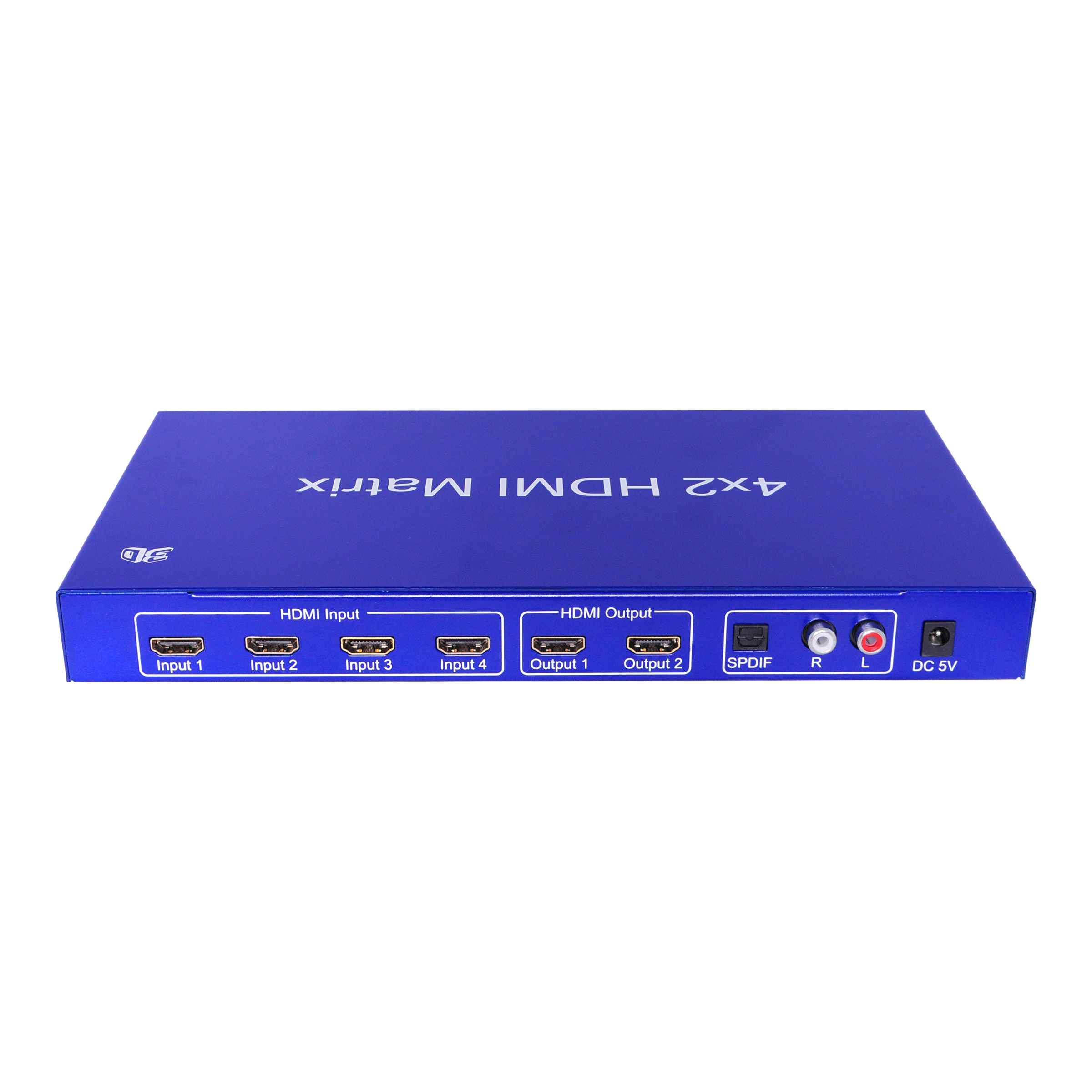

- • 4 HDMI inputs.
- • 2 HDMI outputs.
- • IR remote control included.
| Specifications | |
| Operating Temperature | 14° F ‒ 176° F |
| Operating Humidity | 5% ‒ 90% RH (no condensation) |
| Input Video Signal | 1.2Vp-p |
| Data Transfer Speed Rate | 10.2 Gbps (max) |
| Power Supply | 5VDC (power supply included) |
Name
Description
Size
Downloads
File
Specification
0.3mb
File
User Manual
0.4mb
