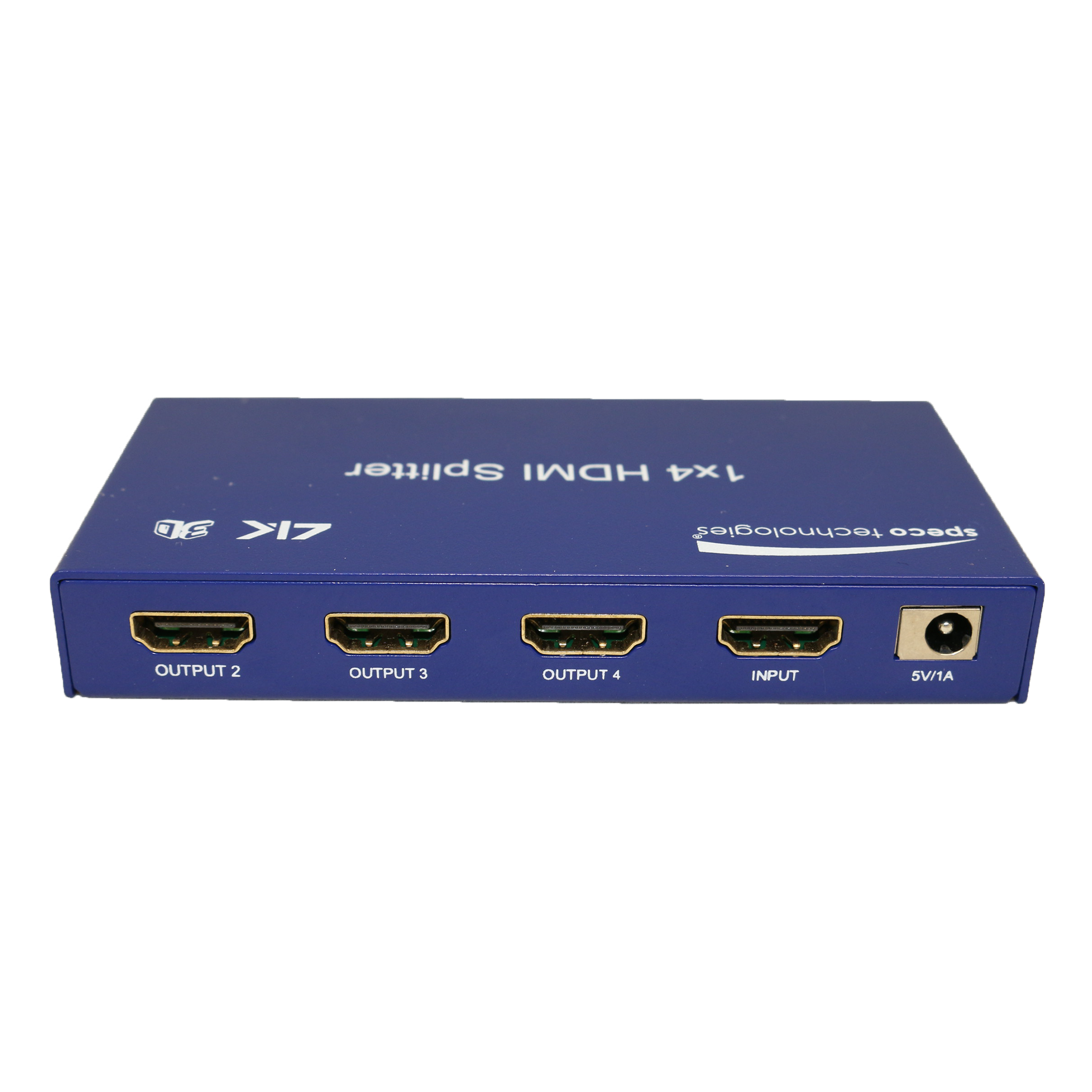

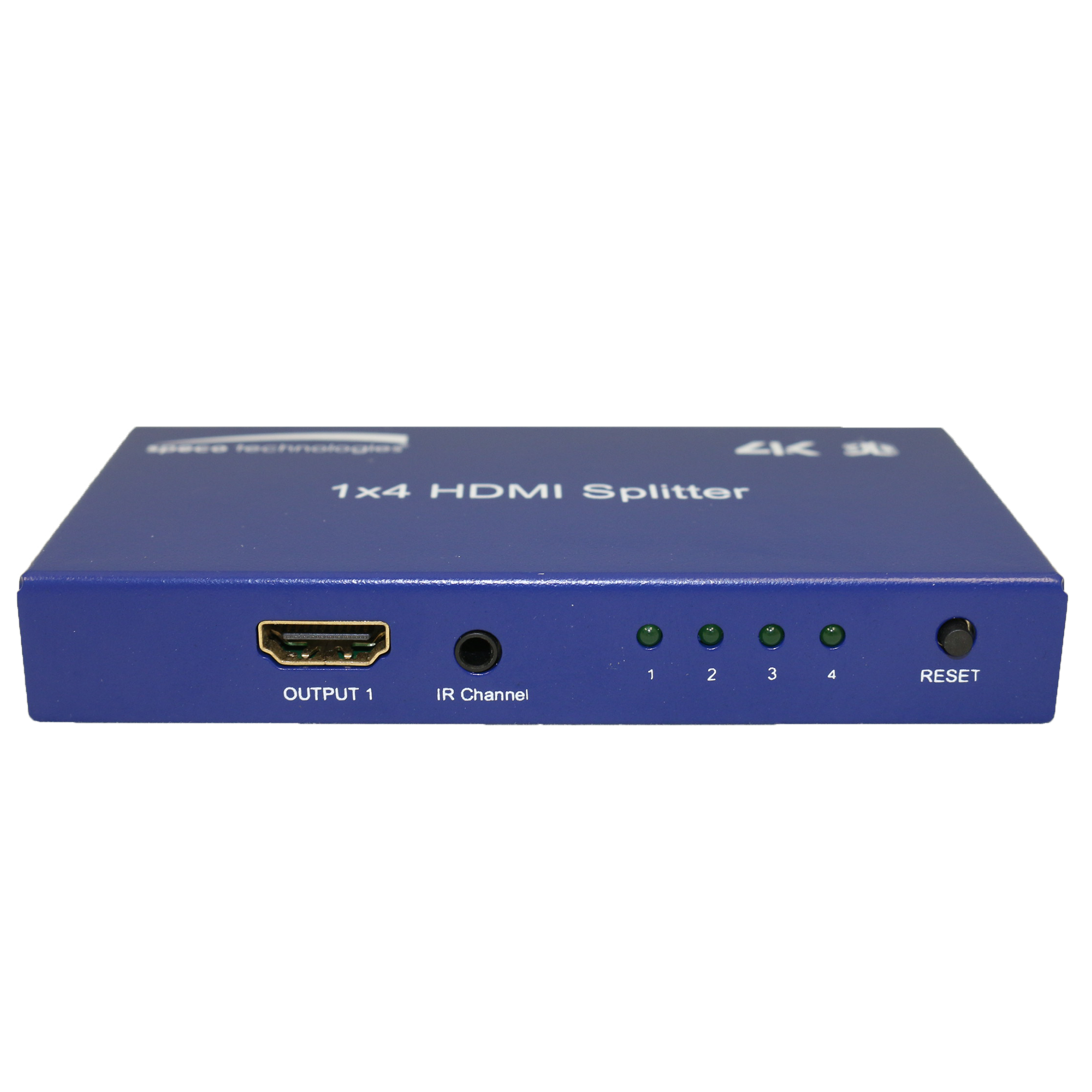

Speco - HD4SPL2 - HDMI 1 to 4 Splitter- Res up to 4K
Part number:
Price:
Product Overview
• Takes a single HDMI source and divides it into 4 monitors or televisions • Supports 3D HDMI signals • Supports a wide range of PC and HDTV resolutions from VGA to UXGA, and 480i to 1080p, up to 4K • Supports DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3 • Supports HDCP 1.3 • Compatible with HDMI 1.4a **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: HD4SPL2
Installation Notes
4.7” (L) x 2.4” (W) x 0.7 (H)
| Full Specifications | |
| Resolution Support | Up to 4K |
| HDMI Compatibility | HDMI 1.4a |
| Supported Signals | 3D HDMI signals |
| Audio Support | DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3 |
| Compliance | NDAA Section 889 Part B Guidelines |
| Operating Temperature | 5°F ‒ 131°F |
| Operating Humidity | 5% ‒ 90% RH (no condensation) |
| Input Video Signal | 1.2Vp-p |
| Data Transfer Speed Rate | 10.2 Gbps (max) |
| Power Supply | 5VDC (power supply included) |
| Dimensions | 4.7" (L) x 2.4" (W) x 0.7 (H) |
| Bandwidth | 10.2 Gbps |
| Output Resolutions | 480i ~ 1080p @ 50/60 1080p @ 24/50/60 2160p @ 24/30 VGA ~ UXGA |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
User Manual
0.3mb
