Speco - HiD8 - 2MP Ultra Intensifier HD-TVI Dome Camera, Included Junction Box, TAA
Part number:
Price:
Product Overview

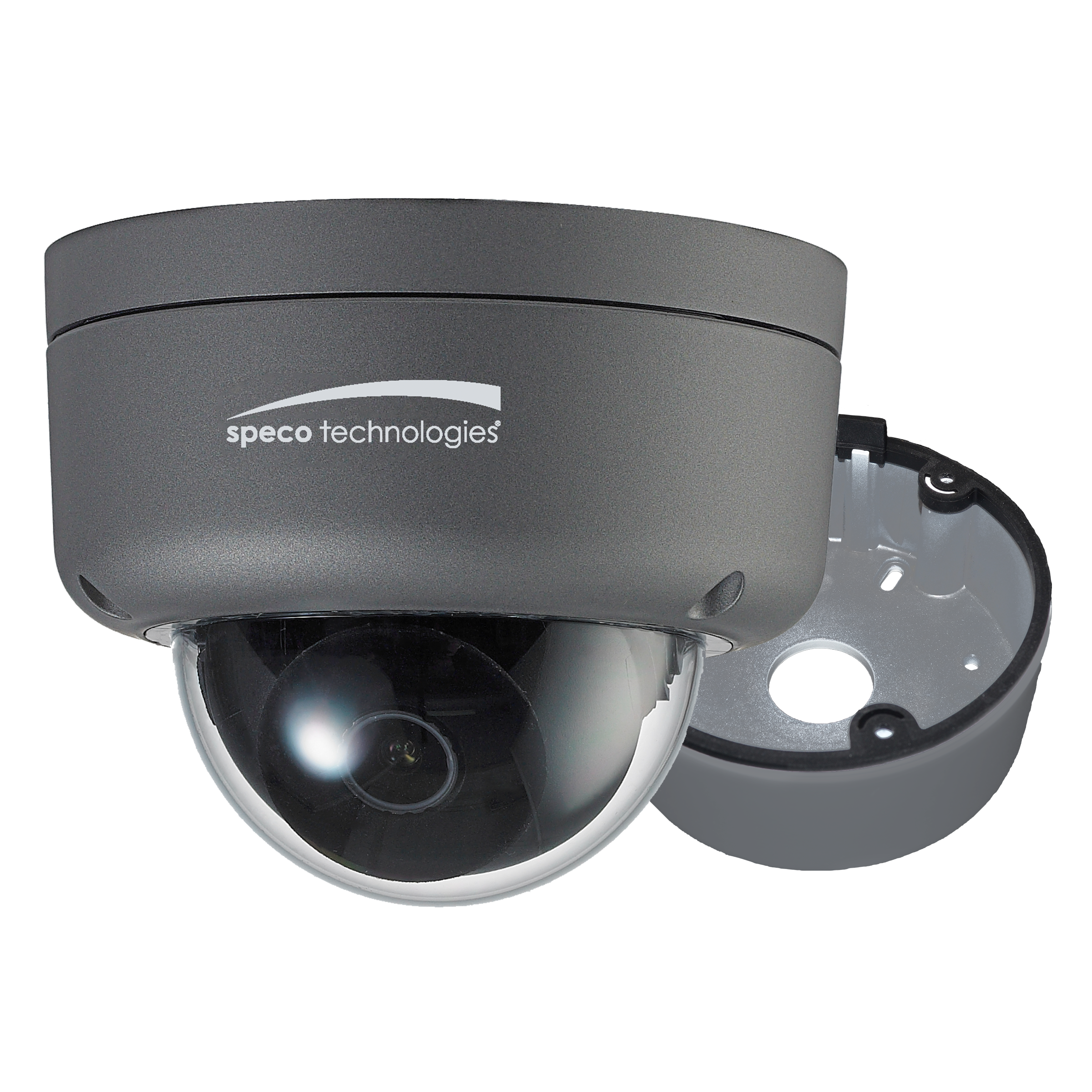

2MP Ultra Intensifier HD-TVI Dome Camera, Included Junction Box, TAA
Key Configuration
Model: HiD8
Key Features
- • Next generation of Intensifier® technology provides an even more vivid color image in low light situations.
- • Preset image modes offer convenient settings for different environments.
- • Supports up to full HD 1080p resolution @ 30fps.
- • True WDR (wide dynamic range) operation.
- • Glacier: Operates in -40º F.
Installation Notes
4.8" (Φ) × 3.8" (H)
| Full Specifications | |
| Resolution | 2MP |
| Lens | 3.6mm fixed |
| Housing Color | Gray |
| Compliances | NDAA, TAA, IP66, IK10 |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" Sony STARVIS CMOS Sensor, 2MP |
| Field of View | 89° Horizontal, 47° Vertical |
| Minimum Illumination | 0.001 lux |
| White Balance | Auto/AWB/AWB - SET/Manual |
| Compensation | WDR |
| Day/Night | Auto/Color/B&W |
| DNR | Off/Low/Middle/High |
| Output | TVI/CVBS(EXT) |
| S/N Ratio | More than 50dB (AGC OFF/ Weight ON) |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) |
| Power Consumption | 100mA±10%(12VDC) |
| Operating Temperature | -40°F to 140°F |
| Operating Humidity | 0% - 90% relative humidity |
| Unit Dimensions | 4.8"(Φ) x 3.8" (H) |
| Unit Weight | 1.03 lbs |
| Video Specifications | |
| Main Resolution | 1920x1080 / 1280x720 @ 30fps |
| Privacy Mask | ON/OFF 16 zones |
| Motion | ON/OFF 4 zones |
| Negative Image | ON/OFF |
| Mirror/Flip | ON/OFF |
| Shutter | Auto/Manual/Flicker |
| Intensifier® | Auto/OFF (selectable limit x2 ~ x32) |
| Backlight | OFF/HLC/BLC/WDR |
| AGC (Auto Gain Control) | 0 ~ 10 (level adjustable) |
| Sharpness | 0 ~ 10 (level adjustable) |
| WDR | Normal/ROI |
| Defog | ON/OFF |
Name
Description
Size
Downloads
File
User Manual
0.5mb
File
Specification Sheet
0.8mb
