Speco - HLPR1TW - 2MP HD-TVI License Plate Capture Camera
Part number:
Price:
Product Overview

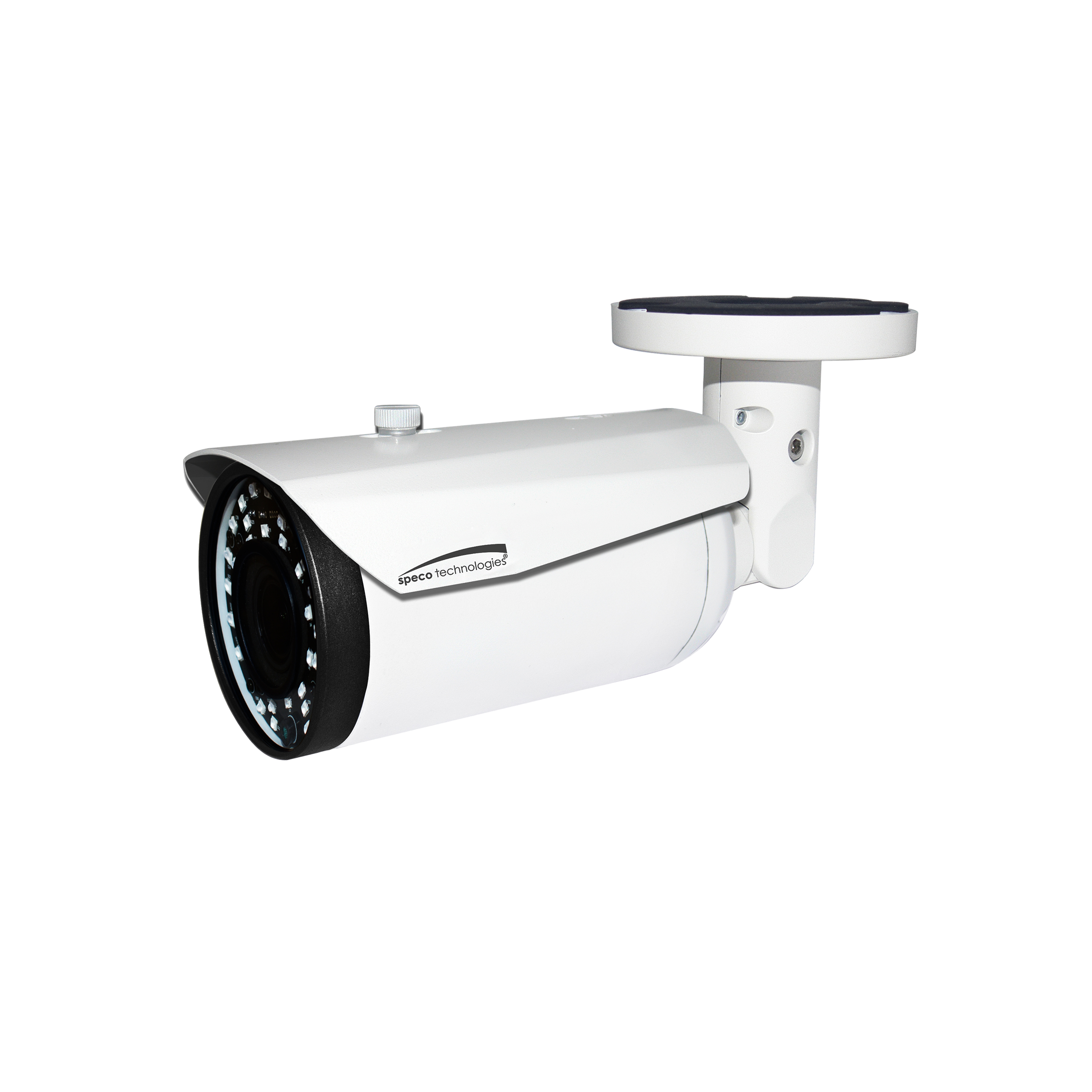

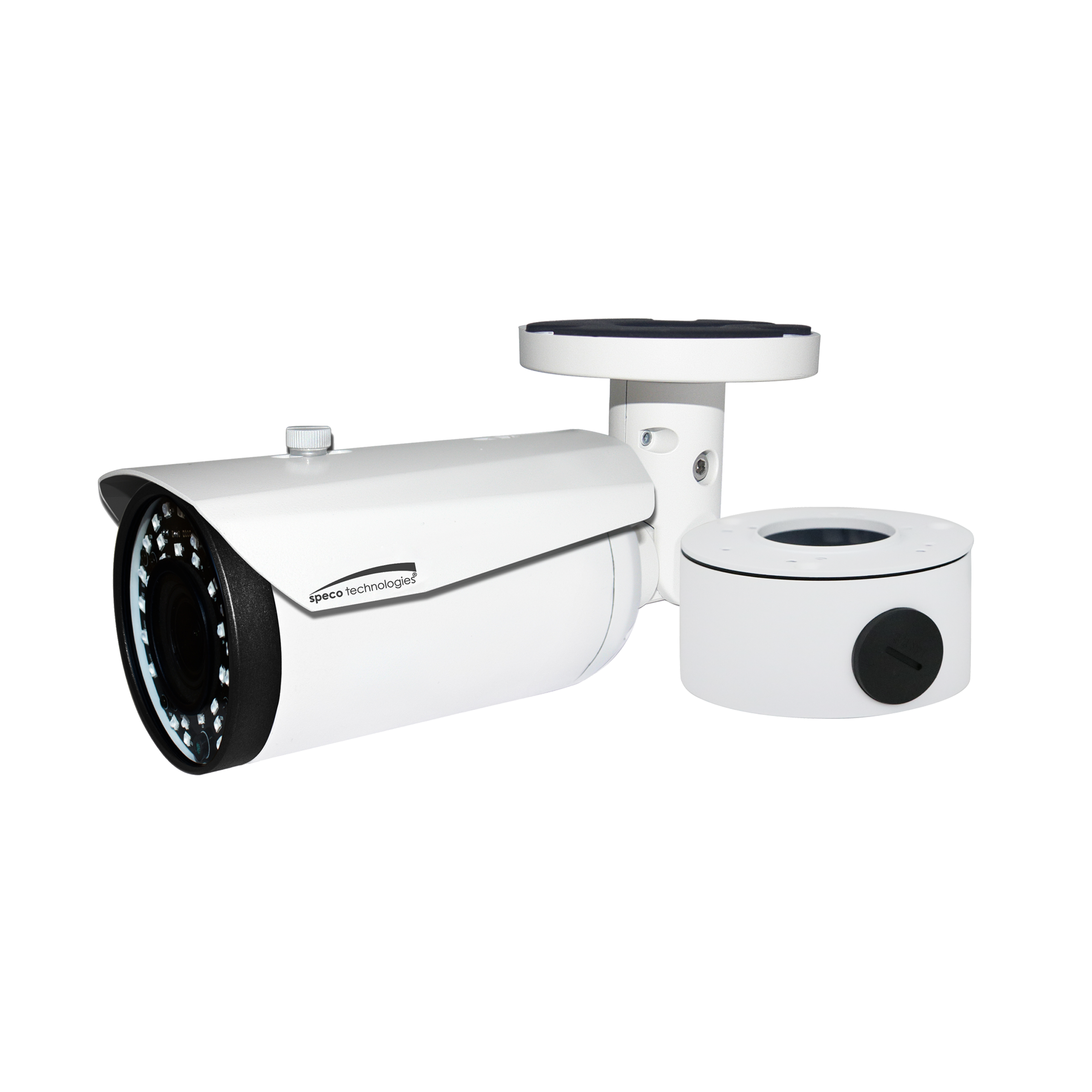

2MP HD-TVI License Plate Capture Camera 9-22mm auto iris motorized varifocal lens, white housing
Key Configuration
Model: HLPR1TW
Key Features
- • Full HD 1080P @ 30fps.
- • High-contrast imaging performance that delivers sharp, clear license-plate captures.
- • Built-in IR LEDs.
- • IR range: ~ 50’ (depending on scene reflection).
- • Captures license plates up to 30 mph.
Installation Notes
9.1" (L) × 3.3" (W) × 4.3" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.9" Sony 2.1 Megapixel DIS |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1080P |
| Field of View (H) | H: 32° ~ 14° |
| Minimum Illumination | 0 lux (42PCs SMD LEDs ON) |
| Vertical Frequency | NTSC: 60Hz ; PAL: 50Hz |
| Scanning System | Progressive |
| S/N Ratio | ≥52dB |
| Electronic Shutter Speed | NTSC: 1/60s - 1/100000s PAL: 1/50s - 1/100000s |
| White Balance | ATW |
| OSD | Yes |
| Backlight Compensation | Auto |
| AGC | On |
| Defog | Off / On |
| DNR | Off / On |
| WDR | Off / On |
| Day/Night | Auto / Color / BW / Ext |
| Gamma | 0.45 |
| Video Output | HD-AHD (TVI / CVI / CVBS ) |
| Operating & Unit Specifications | |
| Power | 12VDC / 24VAC ± 10% |
| Power Consumption | 630mA (max) |
| Operating Temperature | -22°F ~ 140°F |
| Storage Temperature | -22°F ~ 140°F |
| Unit Dimensions | 9.1" (L) x 3.3" (W) x 4.3" (H) |
| Unit Weight | 1.59 lbs |
