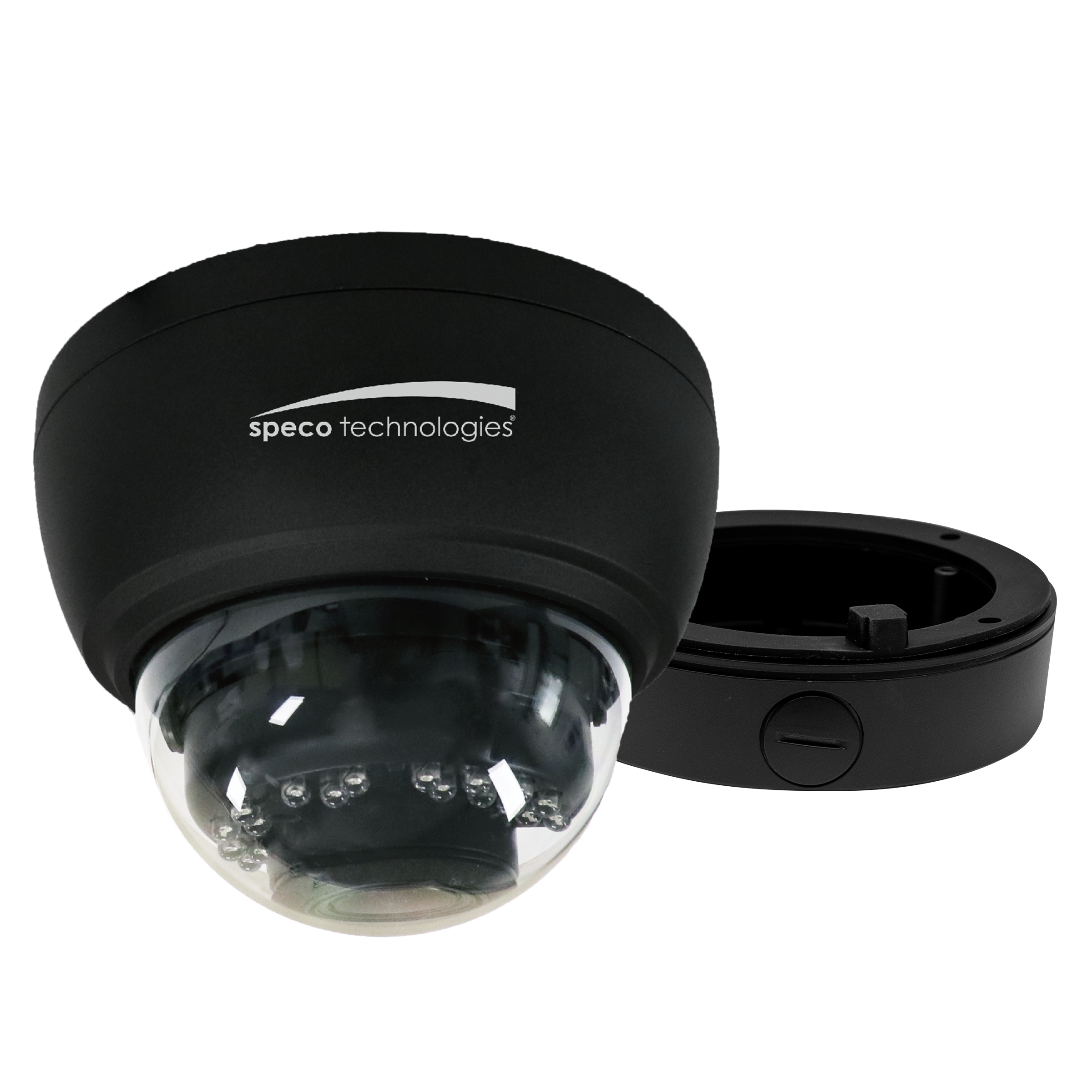

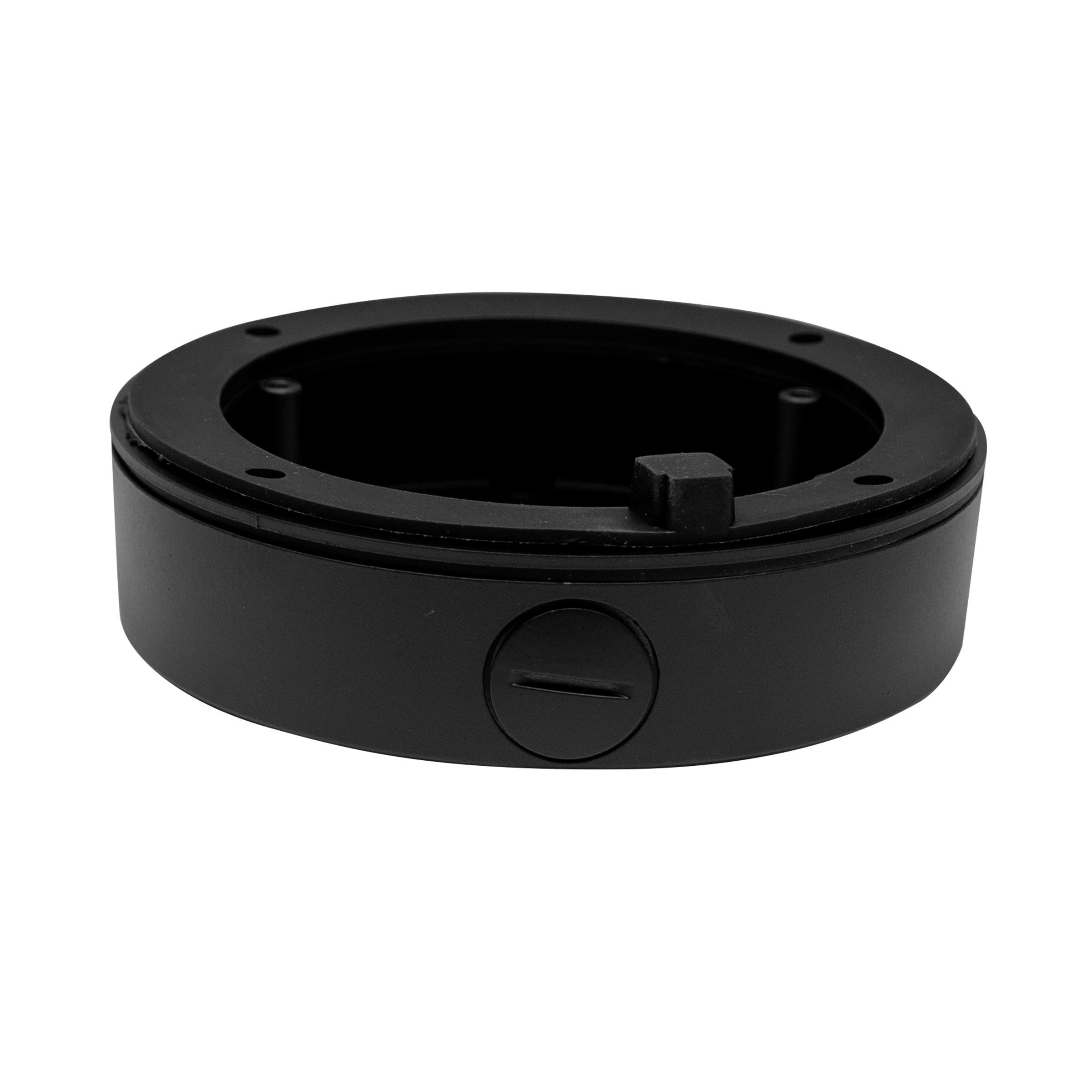

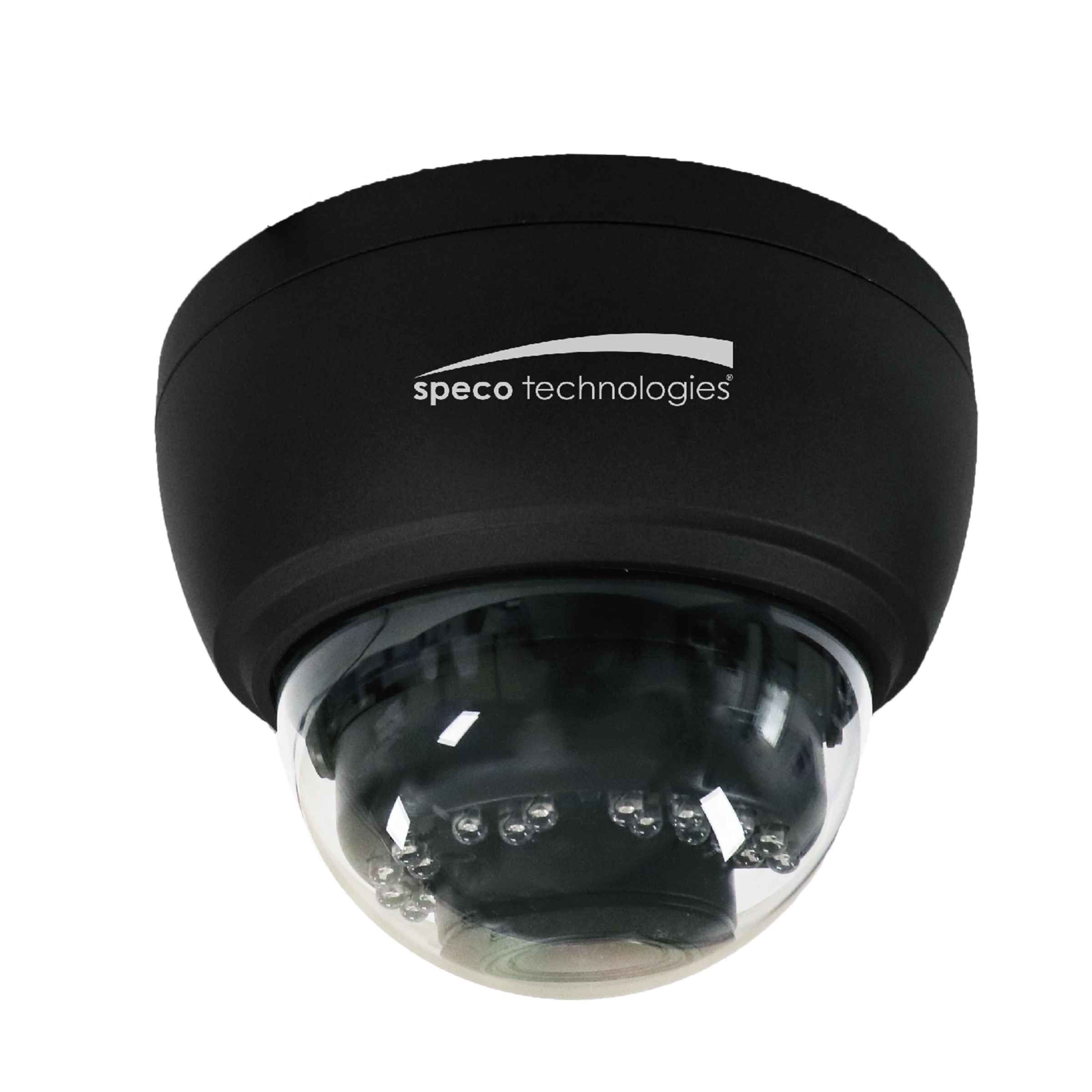

Speco - HT5940TMB - 2MP HD-TVI IR Dome Camera with Included Junction Box
Part number:
Price:
Product Overview
2MP HD-TVI IR Dome Camera with Included Junction Box, 2.8-12mm motorized lens, black housing.
Key Configuration
Model: HT5940TMB
Key Features
- • Full HD resolution over coax (HD-TVI).
- • Supports up to Full HD 1080p @ 30fps.
- • True WDR operation.
- • Intense IR function – no saturation, IR intensity adapts to subject to provide vivid image.
- • True day/night operation – mechanical IR cut filter.
Installation Notes
3.95" (H) x 5.24" (Dia)
| Full Specifications | |
| Resolution | 2MP HD-TVI |
| Lens | 2.8-12mm motorized |
| Operating Voltage | 12VDC & 24VAC |
| WDR | True WDR |
| Weather Resistance | IP67 |
| Warranty | 5 years |
| Camera Specifications | |
| Image Sensor | 1/3" CMOS, 1.3MP |
| Minimum Illumination | 0.0001 lux (sense-up x32) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Scanning System | Progressive |
| IR Range | 66 ft. (depending on scene reflection) |
| S/N Ratio | More than 50dB |
| Output Resolution | 1920 x 1080 @ 30fps / 1280 x 720 @ 60fps |
| Video Output | 1.0Vp-p / 75 Ohms |
| Electronic Shutter | Auto/Manual (1/30 - 1/30,000 sec.) |
| Day/Night | Auto/Color/BW/External |
| White Balance | Auto/AWB/AWC-Set/Manual |
| Brightness | 0 - 20 (adjustable) |
| AGC | 0 - 10 (adjustable) |
| Sense-up | 2x - 32x (adjustable) |
| Backlight | BLC/HLC |
| Motion Detection | On/Off (4 zones) |
| Privacy Masking | On/Off (16 zones) |
| Mirror | On/Off |
| Flip | On/Off |
| Sharpness | 0 - 10 (adjustable) |
| DNR | Off/Low/Middle/High |
| Test Monitor Output | CVBS |
| Communication | UTC (up the coax) |
| Operating & Unit Specifications | |
| Power | 12VDC/24VAC dual voltage (power supply not included) |
| Power Consumption | 12VDC, 500mA max. / 24VAC, 195mA max. |
| Operating Temperature | -4°F - 122°F |
| Unit Dimensions | 3.95" (H) x 5.24" (Dia) |
| Unit Weight | 3 lbs. |
| Certifications | FCC, RoHS |
| Signal Distance | Up to 1600 ft. (depending on coax quality) |
Name
Description
Size
Downloads
File
Specification
0.6mb
