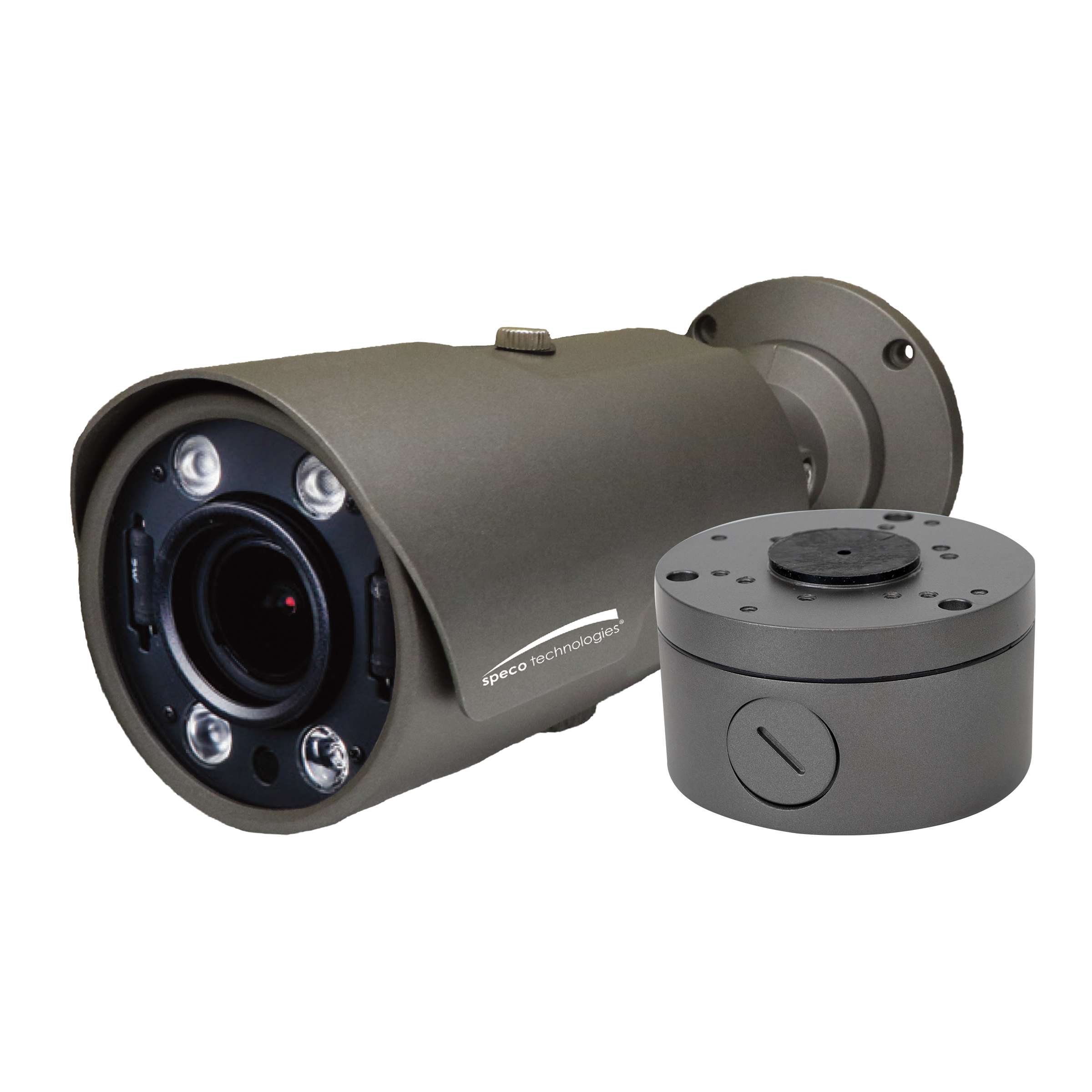

Speco - HT7040TM - 2MP HD-TVI IR Bullet Camera with Included Junction Box
Part number:
Price:
Product Overview

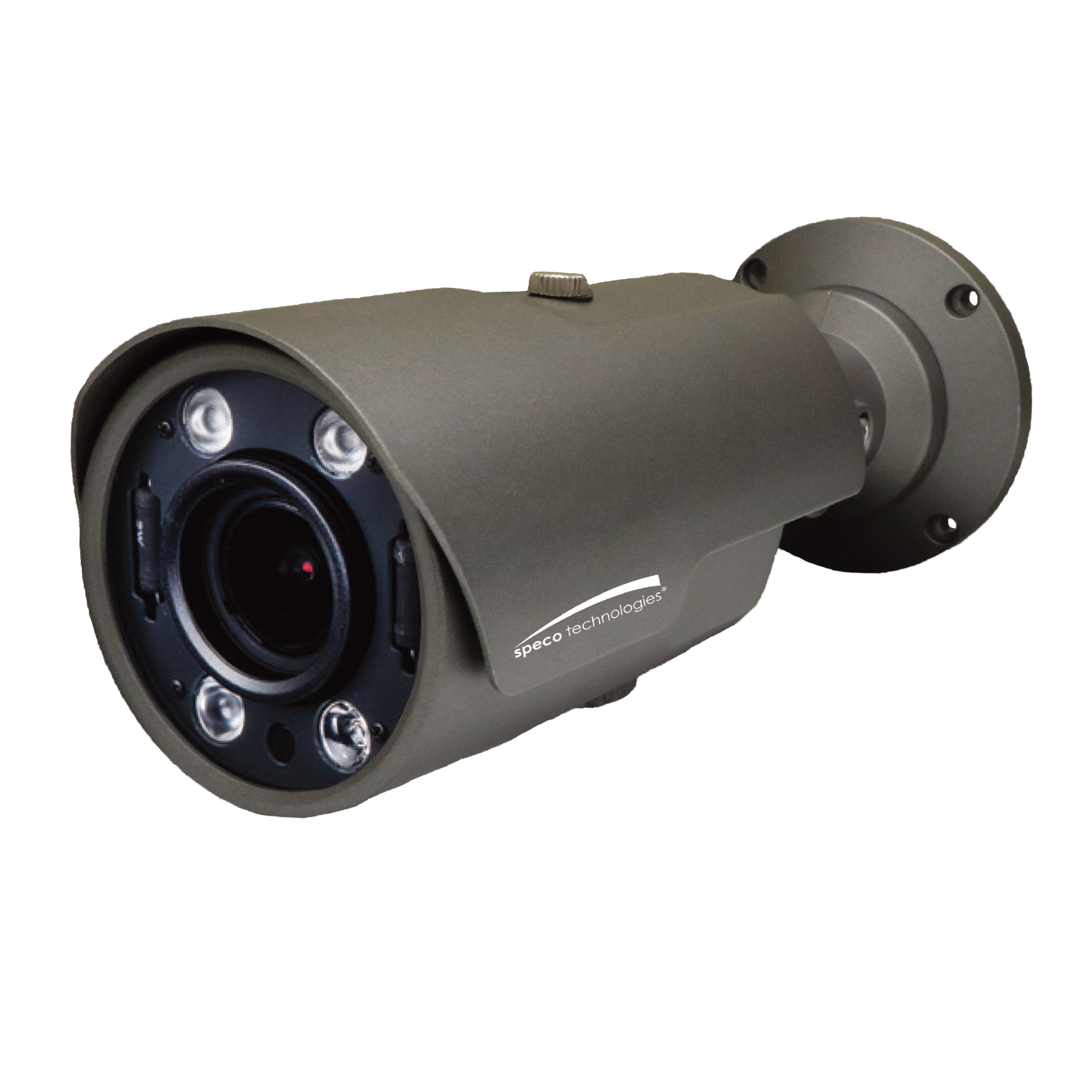

2MP HD-TVI IR Bullet Camera with Included Junction Box, 2.8-12mm motorized lens, dark gray housing.
Key Configuration
Model: HT7040TM
Key Features
- • Full HD resolution over coax (HD-TVI).
- • Supports up to Full HD 1080p @ 30fps.
- • True WDR operation.
- • Intense IR function – no saturation, IR intensity adapts to subject to provide vivid image.
- • True day/night operation – mechanical IR cut filter.
Installation Notes
9.65" (L) x 3.74" (H)
| Full Specifications | |
| Megapixel | 2MP |
| Housing Color | Gray |
| Camera Specifications | |
| Image Sensor | 1/3" 2MP Sensor |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Resolution | 1920x1080 @ 30fps / 1280x720 @ 60fps |
| Minimum Illumination | 0.001 lux (sense-up x32) |
| Scanning System | Progressive |
| Video Output | 1.0Vp-p / 75 Ohms |
| S/N Ratio | More than 50dB |
| AGC | 0-10 level adjustable |
| Electronic Shutter | Auto / Manual (1/30 – 1/30,000 sec.) |
| WDR | On (Low / Middle / High) / Off |
| Day/Night | Color / BW / Auto / Ext |
| Brightness | 0-20 level adjustable |
| Sense-up | 2x – 32x (adjustable) |
| Motion Detection | On / Off (4 zones) |
| Privacy Masking | On / Off (16 zones) |
| White Balance | Auto / Auto Ext / AWC ‒ SET / Manual |
| Mirror | On / Off |
| Flip | On / Off |
| Sharpness | 0-10 level adjustable |
| DNR | Off / Low / Middle / High |
| Test Monitor Output | CVBS |
| Communication | UTC (up the coax) |
| Operating & Unit Specifications | |
| Power Supply | 12VDC / 24VAC dual voltage (power supply not included) |
| Power Consumption | 12VDC, 800mA max. / 24VAC, 290mA max. |
| Operating Temperature | -4°F - 122°F |
| Unit Dimensions | 9.65" (L) x 3.74" (H) |
| Unit Weight | 3 lbs. |
