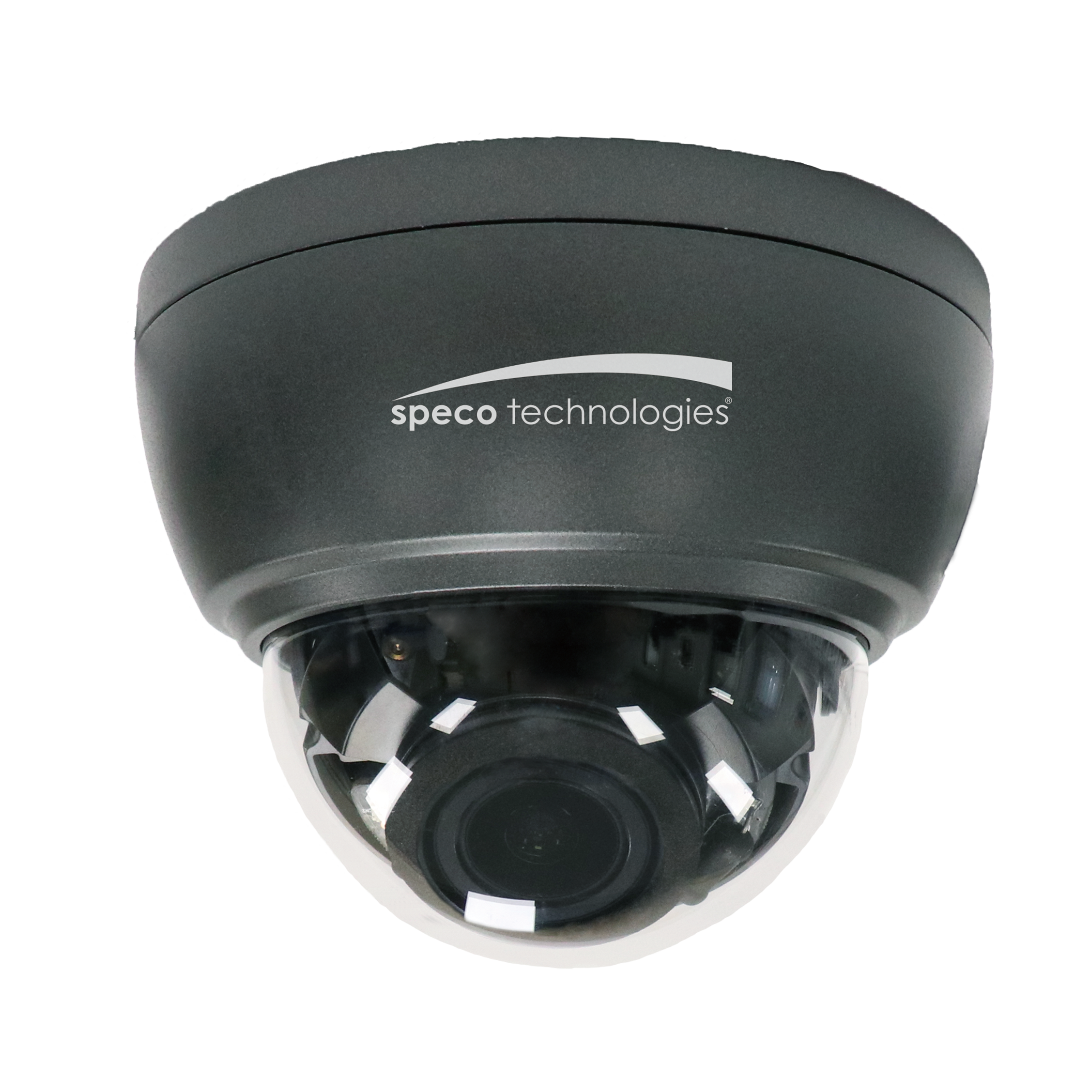

Speco - HT7246T2 - 2MP HD-TVI Intensifier® Dome Camera with Junction Box
Part number:
Price:
Product Overview

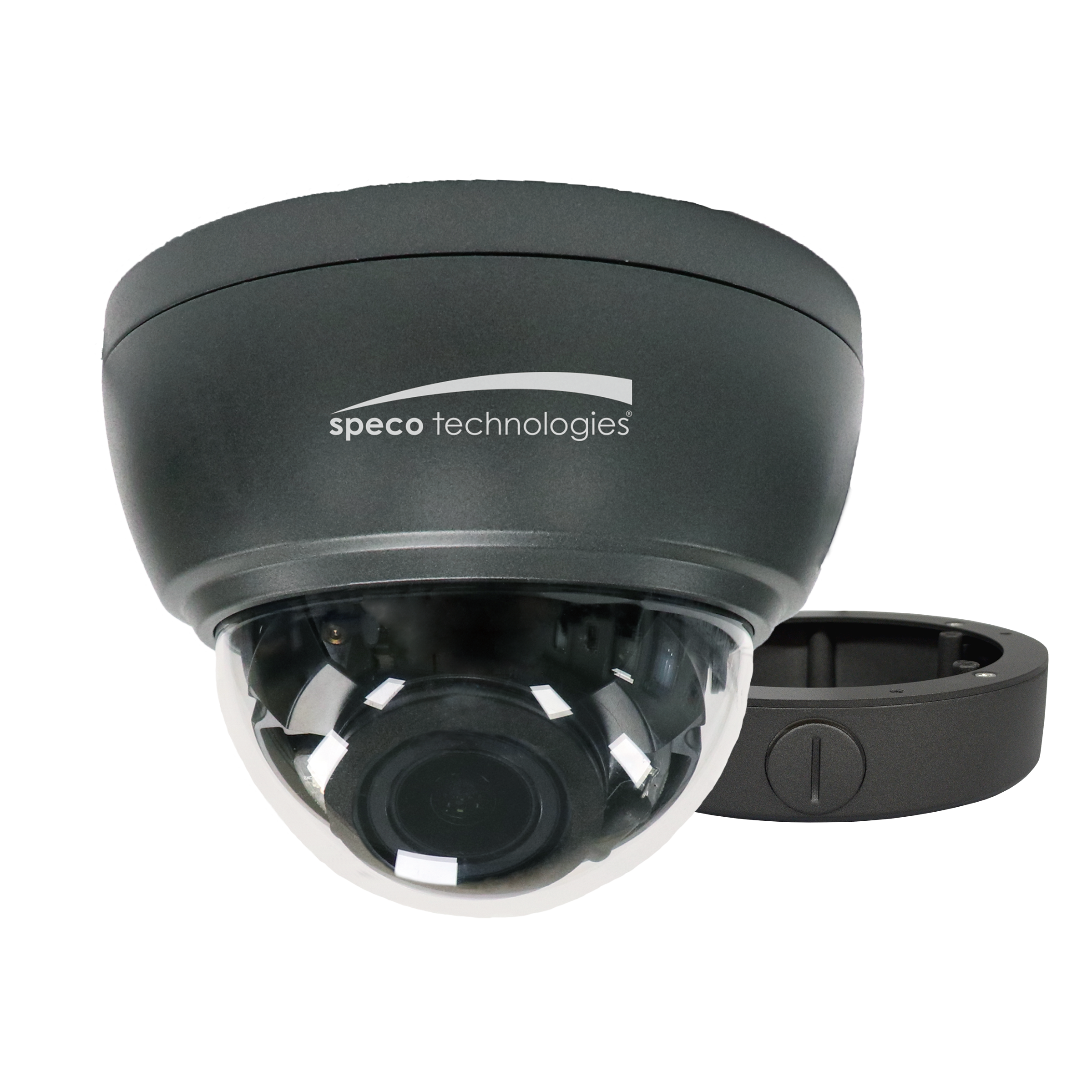

2MP HD-TVI Intensifier® Dome Camera with Junction Box
Key Configuration
Model: HT7246T2
Key Features
- • Full HD resolution over coax (HD-TV).
- • Supports up to Full HD 1080p @ 30fps.
- • True WDR operation.
- • Superior low-light performance.
- • Amplify existing light with no distance limitation.
Installation Notes
3.97" (H) x 5.23" (Dia.)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.9" Progressive Scan CMOS, 2MP |
| Minimum Illumination | 0.001 lux (Sens-up X32) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Scanning System | Progressive |
| S/N Ratio | More than 50dB |
| Output Resolution | 1920x1080 @ 30fps |
| Video Output | 1.0Vp-p / 75 Ohms |
| Electronic Shutter | Auto / Manual (1/30 - 1/30,000 sec.) |
| Day / Night | Color (default) / BW / External /Auto |
| Test Monitor Output | CVBS (Yellow BNC / Connector on Board) |
| Communication | UTC (up the coax) |
| Power | 12VDC / 24VAC |
| Power Consumption | 450mA max. (DC), 250mA max. (AC) |
| Operating Temperature | -40° F - 140° F |
| Unit Dimensions | 3.97" (H) x 5.23" (Dia.) |
| Unit Weight | 1.4 lbs (camera), 0.7 lbs (junction box) |
| Privacy Masking | On / Off (16 zone) |
| Certifications | FCC, RoHS |
| Signal Distance | Up to 1600 feet (depending on coax quality) |
Name
Description
Size
Downloads
File
Specification
0.8mb
File
User Manual
0.5mb
