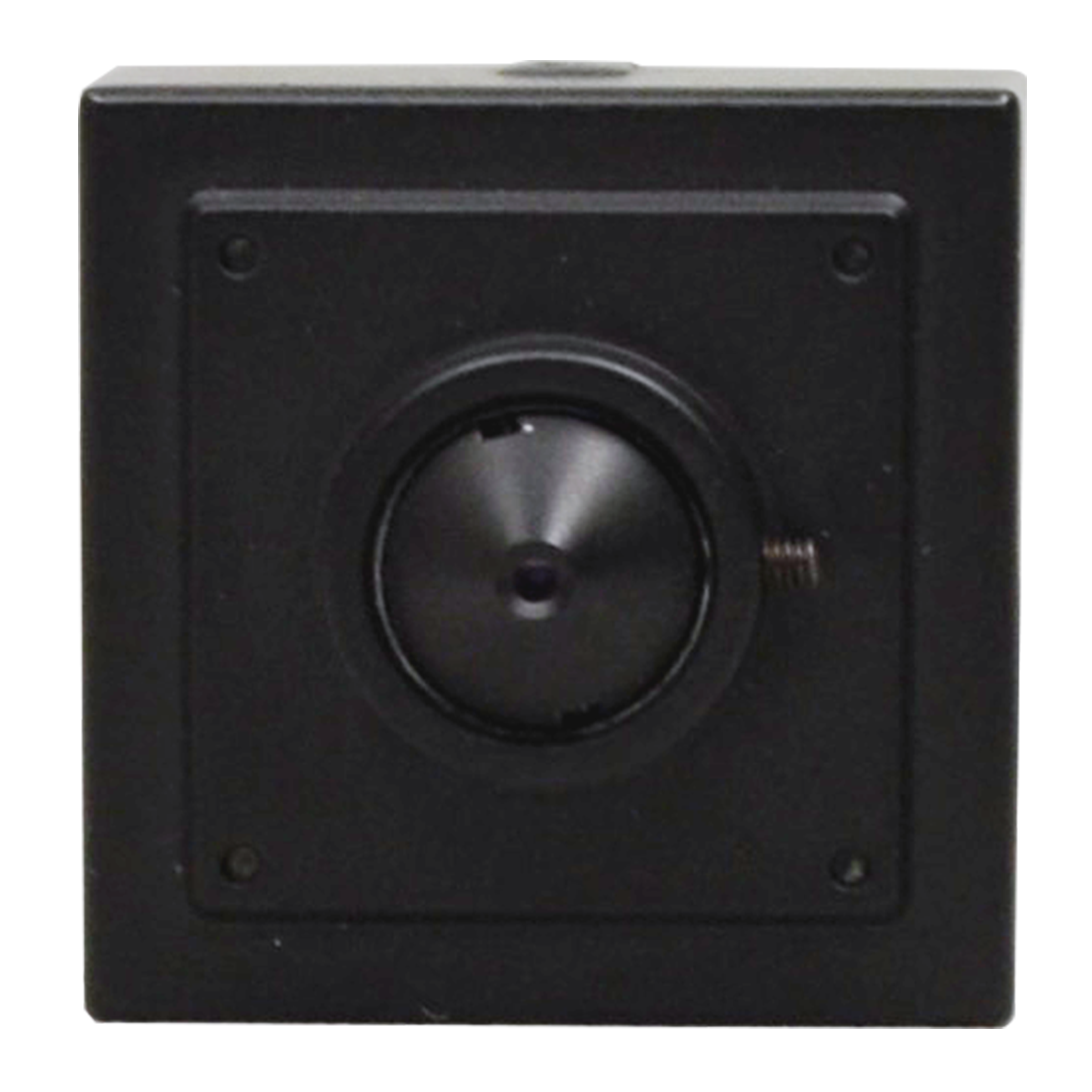

Speco - HT7PHT - 2MP HD-TVI Multi Format Pinhole Color Camera
Part number:
Price:
Product Overview
• Full HD 1080p @ 30FPS • Multi-format HD • Full OSD control via UTC (up the coax) • Perfect for covert applications • 12VDC operation (power supply not included) • 5 year warranty*
Key Configuration
Model: HT7PHT
Installation Notes
1.77" (H) × 1.5" (W) × 0.98" (L)
| Full Specifications | |
| Resolution | Full HD 1080p @ 30FPS |
| Operation | 12VDC (power supply not included) |
| Warranty | 5 years |
| Image Sensor | 1/2.9" 2MP CMOS |
| Minimum Illumination | 0.001 lux |
| Scanning System | Progressive |
| S/N Ratio | More than 52dB |
| Video Output | HD-TVI / HD-AHD / HD-CVI / CVBS |
| Signal System | NTSC / PAL |
| OSD | Available (UTC) |
| 3D/2D | On |
| Sense-up | On |
| Smart IR | On |
| Back Light Compensation | Off |
| White Balance | Auto |
| Type | Color |
| Operating & Unit Specifications | |
| Power Supply | DC12V ± 10% |
| Power Consumption | 95mA max. |
| Dimensions | 1.77" (H) x 1.5" (W) x 0.98" (L) |
| Weight | 2.47oz |
| Storage Temperature | -22° F – 140° F |
| Operating Temperature | -22° F + 113° F |
Name
Description
Size
Downloads
File
User Manual
0.5mb
File
Specification Sheet
0.3mb
