Speco - HTB8TG - 4K HD-TVI Bullet, IR, Included Junction Box
Part number:
Price:
Product Overview

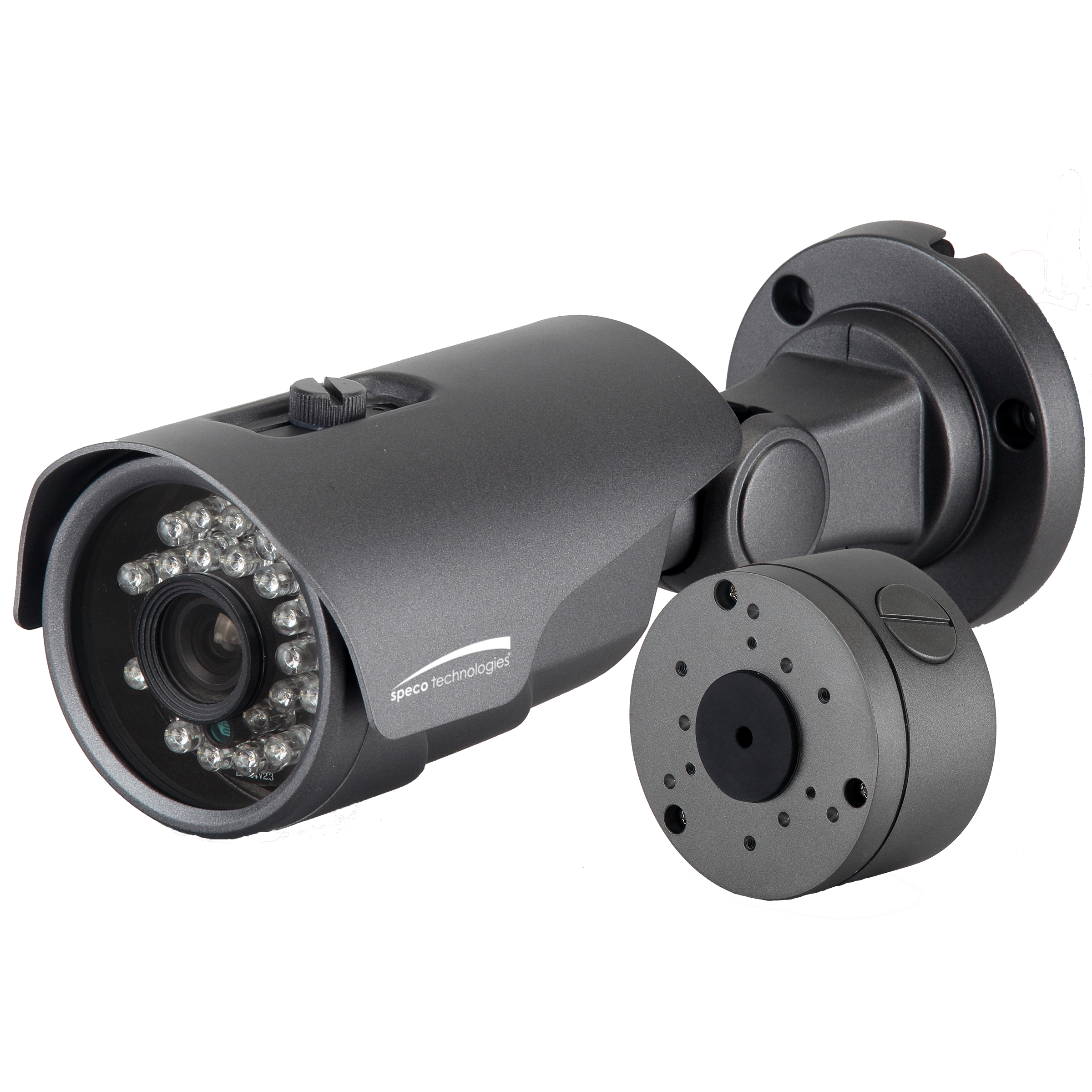

4K HD-TVI Bullet, IR, Included Junction Box
Key Configuration
Model: HTB8TG
Key Features
- • Supports up 8MP @ 15fps.
- • Built-in high powered IR LEDs.
- • Digital WDR (wide dynamic range).
- • IP66 compliant, weather resistant.
- • 12VDC (power supply not included).
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 8MP |
| Camera Specifications | |
| Max Aperature | F=1.6 |
| Focal Control | Manual |
| Image Sensor | Progressive Scan, 1/2.0" CMOS Sensor, 8MP |
| Effective Pixels | 3840(H)x2160(V) |
| Maximum Resolution | 3864x2176 |
| Minimum Illumination | 0.1 lux |
| White Balance | AWB/ATW/AWC |
| WDR | DWDR/OFF/AUTO |
| Day/Night | IR Cut Filter/Auto/Color/B&W/EXT |
| DNR | 2D-DNR/3D-DNR (Low/Middle/High) |
| Output | TVI |
| S/N Ratio | 52dB (AGC OFF) |
| Frame Rate | 8MP @15fps |
| Video Specifications | |
| Main Resolution | 3840x2160 @15fps |
| TV System | NTSC |
| Brightness | 1 ~ 100 |
| Motion | ON/OFF |
| Shutter | AUTO/FLK |
| Mirror/Flip | OFF/MIRROR |
| Color Gain | Blue Gain/Red Gain (1 ~ 10) |
| AGC (Auto Gain Control) | 0 ~ 15 |
| IR Distance | 18pcs LEDs (66ft) |
| Remote Control Interface | UTC |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) |
| Power Consumption | Max. 5W |
| Operating Temperature | 14°F ~ 122°F |
| Unit Weight | 0.7 lbs |
Name
Description
Size
Downloads
File
User Manual
1.4mb
File
Specification Sheet
0.6mb
