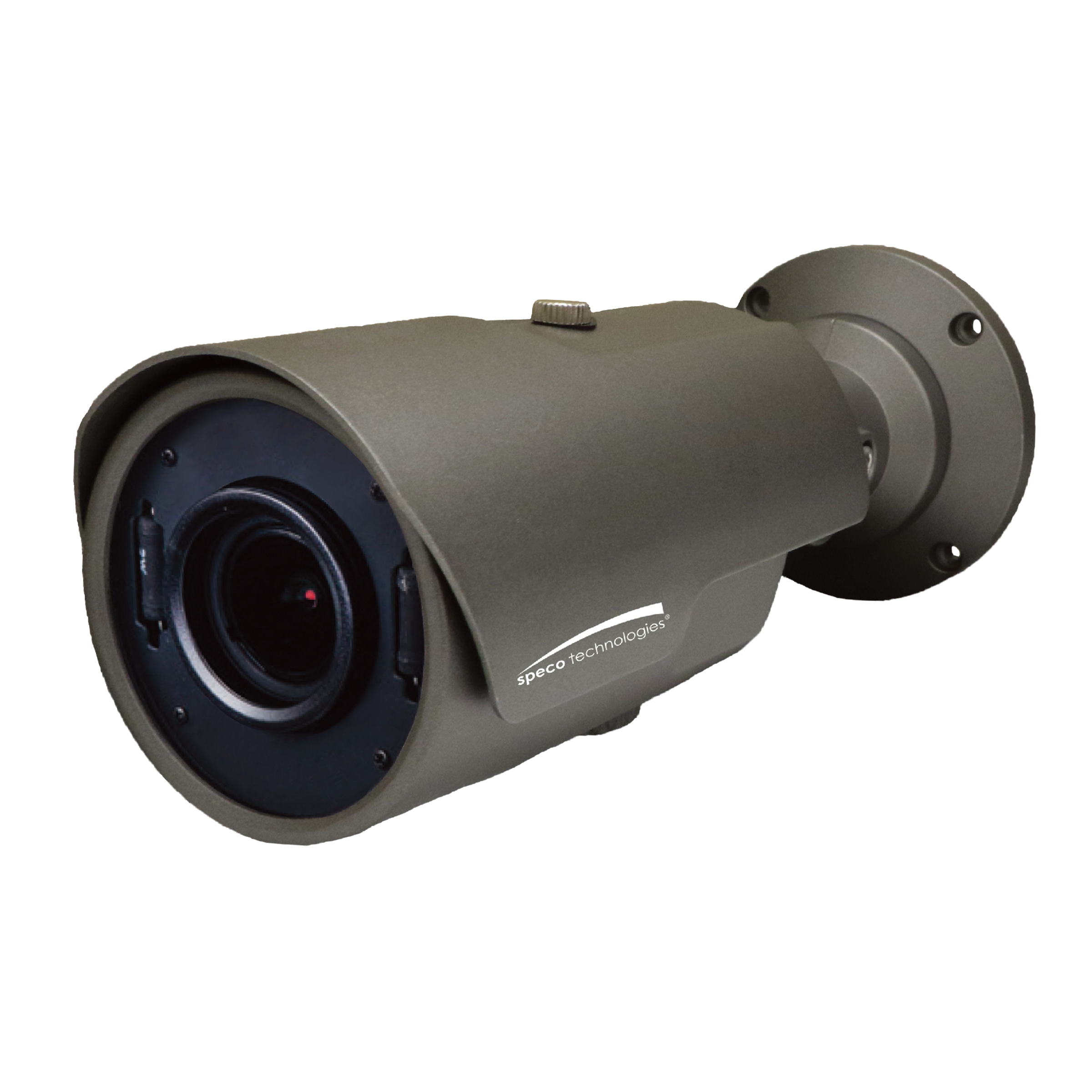

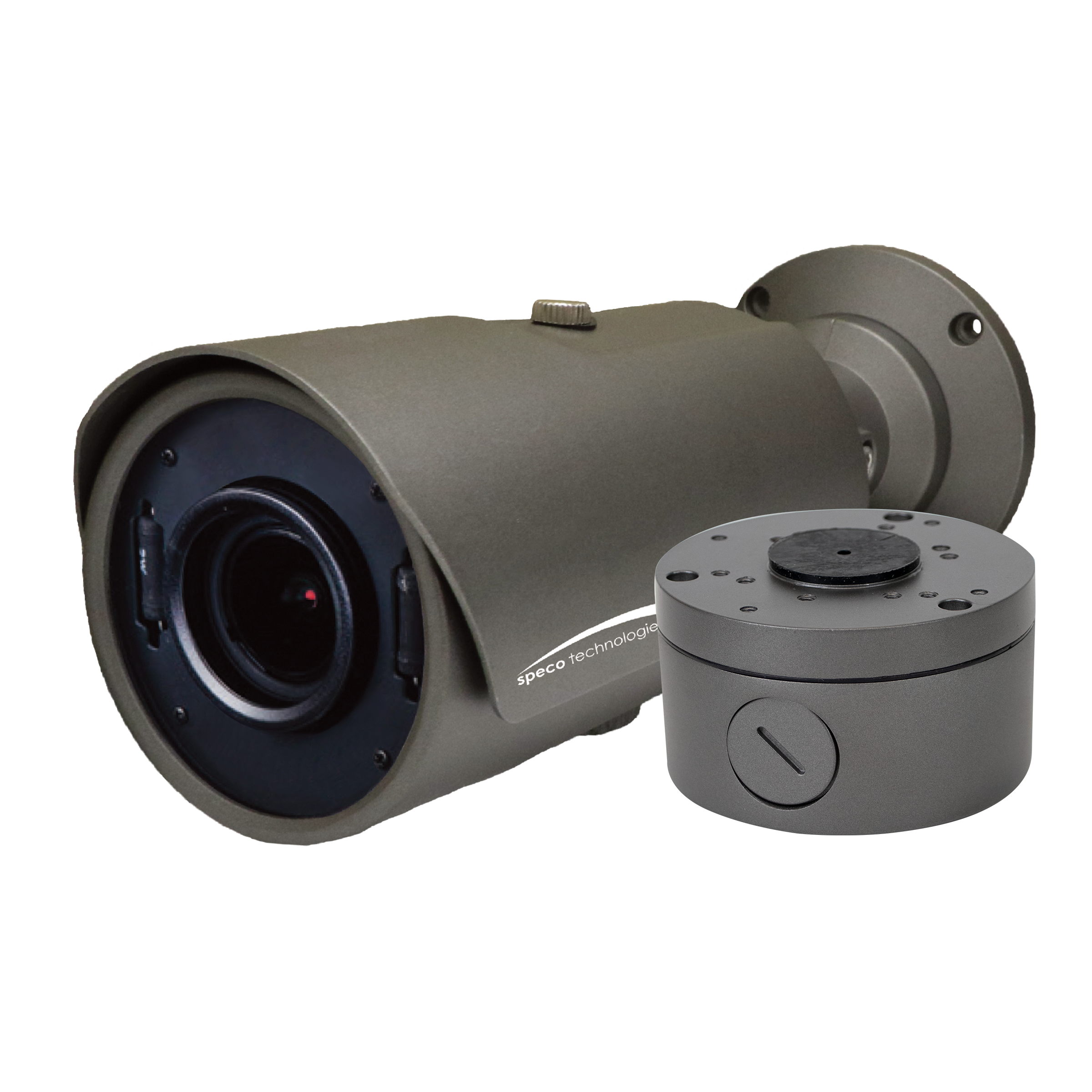

Speco - HTi70TM - HD-TVI 2MP Intensifier® Bullet Camera with Junction Box
Part number:
Price:
Product Overview
HD-TVI 2MP Intensifier® Bullet Camera with Junction Box 2.8-12mm motorized lens, dark gray housing
Key Configuration
Model: HTi70TM
Key Features
- • Full HD resolution over coax (HD-TVI).
- • Supports up to Full HD 1080p @ 30fps.
- • True WDR operation.
- • Superior low-light performance.
- • Amplify existing light with no distance limitation.
Installation Notes
9.64" (L) x 3.72" (Dia.)
| Full Specifications | |
| Megapixel | 2MP |
| Housing Color | Gray |
| Camera Specifications | |
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Minimum Illumination | 0.001 lux (Sens-up X32) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Scanning System | Progressive |
| S/N Ratio | More than 50dB |
| Output Resolution | 1920x1080 @ 30fps |
| Video Output | 1.0Vp-p / 75 Ohms |
| Electronic Shutter | Auto / Manual (1/30 - 1/30,000 sec.) |
| Day / Night | Color (default) / BW / External / Auto |
| Test Monitor Output | CVBS (BNC out in Yellow) |
| Communication | UTC (up the coax) |
| Power | 12VDC / 24VAC |
| Power Consumption | 600mA max. (DC), 450mA max. (AC) |
| Operating Temperature | -40° F - 140° F |
| Unit Dimensions | 9.64" (L) x 3.72" (Dia.) |
| Unit Weight | 2 lbs (camera), 0.9lbs (junction box) |
| Certifications | FCC, RoHS |
| Signal Distance | Up to 1600 feet (depending on coax quality)* |
| Included | Junction Box |
Name
Description
Size
Downloads
File
User Manual
0.5mb
File
Specification Sheet
0.6mb
