Speco - HTINT601TA - 2MP HD-TVI Intensifier® Turret Camera
Part number:
Price:
Product Overview

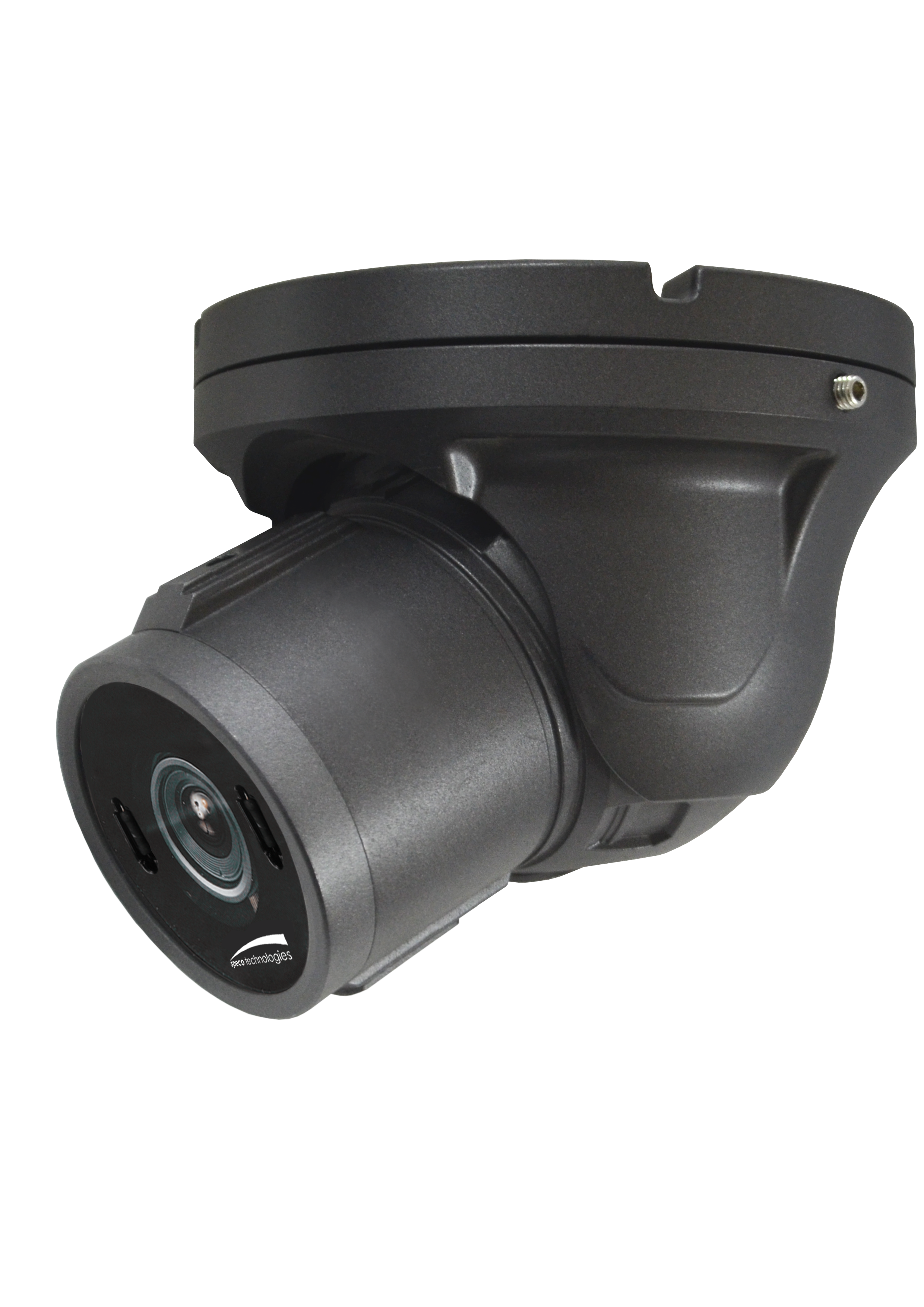

2MP HD-TVI Intensifier® Turret Camera with 3.6mm fixed lens, dark gray housing.
Key Configuration
Model: HTINT601TA
Key Features
- • Full HD resolution over coax (HD-TVI).
- • Supports up to Full HD 1080p @ 30fps.
- • True WDR operation.
- • Superior low-light performance.
- • Amplify existing light with no distance limitation.
Installation Notes
3.82” (H) x 5.47” (Dia)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/3" CMOS, 1.3MP |
| Minimum Illumination | 0.0001 lux (sense-up x32) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Scanning System | Progressive |
| S/N Ratio | More than 50dB |
| Video Output | 1.0Vp-p / 75 Ohms |
| Electronic Shutter | Auto/Manual (1/30 - 1/30,000 sec.) |
| Day/Night | Auto/Color/BW/External |
| White Balance | Auto/AWB/AWC-Set/Manual |
| Brightness | 0 - 20 (adjustable) |
| AGC | 0 -10 (adjustable) |
| Sense-up | 2x - 32x (adjustable) |
| Backlight | BLC/HLC |
| Motion Detection | On/Off (4 zones) |
| Privacy Masking | On/Off (16 zones) |
| Mirror | On/Off |
| Flip | On/Off |
| Sharpness | 0 - 10 (adjustable) |
| DNR | Off/Low/Middle/High |
| Test Monitor Output | CVBS |
| Communication | UTC (up the coax) |
| Operating & Unit Specifications | |
| Power | 12VDC/24VAC dual voltage (power supply not included) |
| Power Consumption 12VDC | 150mA max. |
| Power Consumption 24VAC | 195mA max. |
| Operating Temperature | -4°F - 122°F |
| Unit Dimensions | 3.82" (H) x 5.47" (Dia) |
| Unit Weight | 1.54 lbs. |
| Certifications | FCC, RoHS |
| Signal Distance | Up to 1600 feet (depending on coax quality) |
