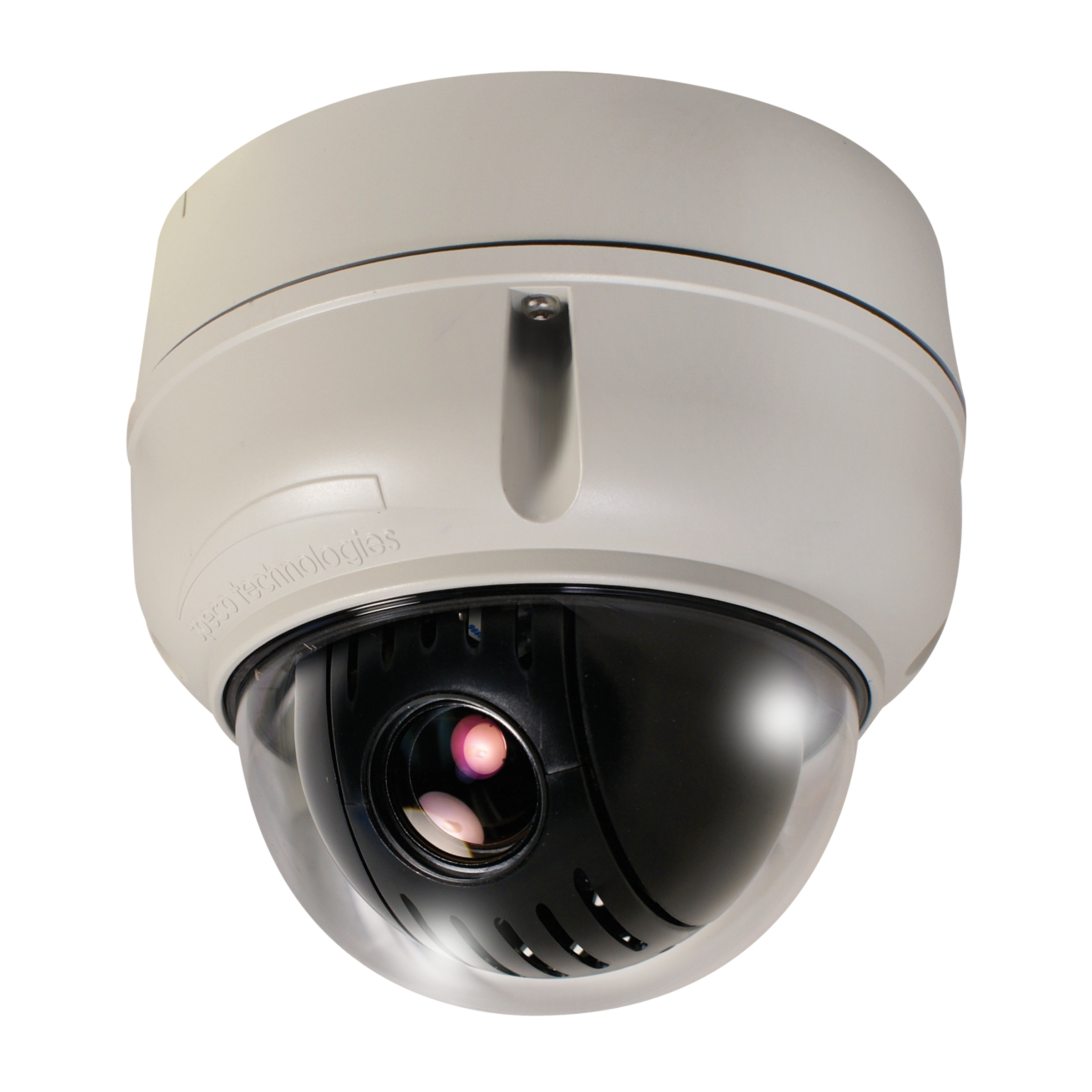

Speco - HTPTZ20T - 2MP HD-TVI Indoor/Outdoor PTZ Speed Dome Camera with 20x Optical Zoom Lens
Part number:
Price:
Product Overview
White Housing
Key Configuration
Model: HTPTZ20T
Key Features
- • 4.7 – 94mm 20x optical zoom lens.
- • Full HD 1080p @ 30fps.
- • True WDR (wide dynamic range) function.
- • True Day/Night function.
- • 240 preset positions.
Installation Notes
5.51" (H) × 6.06" (Dia.)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.9" CMOS (2MP) |
| Video Output | 1.0Vp-p / 75 Ohms |
| PTZ Function | |
| Pan Range | 360° Endless |
| Pan Speed | Max: 380°/sec (preset) |
| Tilt Range | 10° – 190° (digital flip) |
| Tilt Speed | Max: 380°/sec (preset) |
| Preset Positions | 240 |
| Tour | 8 |
| Pattern | 8 |
| Operating & Unit Specifications | |
| Camera Title | On / Off (6 character) |
| Defog | Yes |
| Day/Night | Auto / Color / BW / Global |
| Motion Detection | Yes |
| Wide Dynamic Range | On / Off |
| Backlight Compensation | Yes |
| Digital Image Stabilization | On / Off |
| Privacy Masking | 16 |
| Digital Noise Reduction | 3DNR |
| Digital Slow Shutter | On / Off |
| White Balance | Auto / Fluorescent / Incandescent / Outdoor / Manual |
| Electronic Shutter Speed | Auto / Manual |
| Digital Zoom | 16x |
| AGC | Min. / Low / Middle / High |
| Communication | RS-485, UTC |
| Protocol | Speco-C (TVI), Pelco-D (Analog) |
| Alarm | 4 Inputs, 2 Outputs |
| Operating Temperature / Humidity | 14° F – 122° F / 0% – 90% RH (non-condensing) |
| Input Voltage | 12VDC / 24VAC |
| Power Supply | 12VDC / 24VAC, dual voltage operation (power supply not included) |
| Power Consumption | 1A |
| Dimensions | 5.51" (H) x 6.06" (Dia.) |
| Weight | 3.3 lbs. |
