Speco - IMP100DLWH - 100W Imp Match Volume Control Slider – White
Part number:
Price:
Product Overview

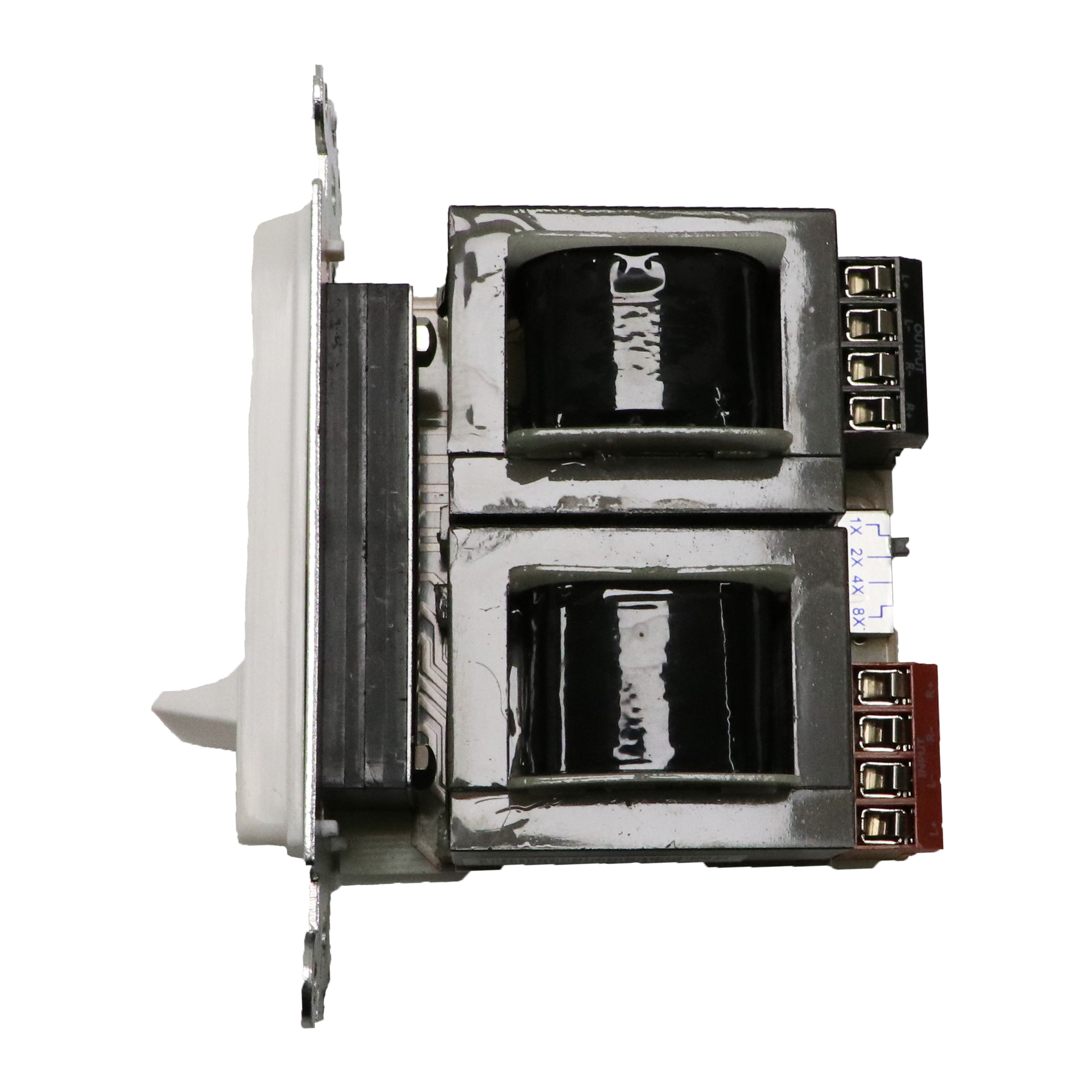

High-quality auto-former design. Supports 1 to 8 speaker pairs. Switchable impedance matching 2x, 4x, or 8x positions, and stereo non-impedance matching 1x position. Soft touch 12-step slide attenuation. Frequency response: 20Hz to 20kHz. Removable terminal blocks accept up to 14-gauge wire. Mounting requirements: fits all single-gang backless P-rings or 19 cubic inch minimum electrical work box. Mounting dimensions: 1.63″ W x 2.74″ H x 2.66″ D. Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: IMP100DLWH
Key Features
- • High-quality auto-former design.
- • Switchable impedance matching 2x, 4x, or 8x positions.
- • Soft touch 12-step slide attenuation.
- • Frequency response: 20Hz to 20kHz.
- • Removable terminal blocks accept up to 14-gauge wire.
Installation Notes
1.63˝ x 2.74˝ x 2.66˝ (42mm x 70mm x 68mm)
| Specifications | |
| Switchable impedance matching | 1x, 2x, 4x, or 8x positions |
| Soft touch 12-step slide attenuation | |
| Frequency Response | 20Hz to 20kHz |
| Power Handling | 100 Watts |
| Removable terminal blocks accept up to | 14-gauge wire |
| Mounting Dimensions (W xHx D) | 1.63˝ x 2.74˝ x 2.66˝ (42mm x 70mm x 68mm) |
Name
Description
Size
Downloads
File
User Manual
1mb
