Speco - IMP80D - 80W Impedance Matching Volume Control w/ 3 color plate & knob
Part number:
Price:
Product Overview
80W Impedance Matching Volume Control w/ 3 color plate & knob
Key Configuration
Model: IMP80D
Key Features

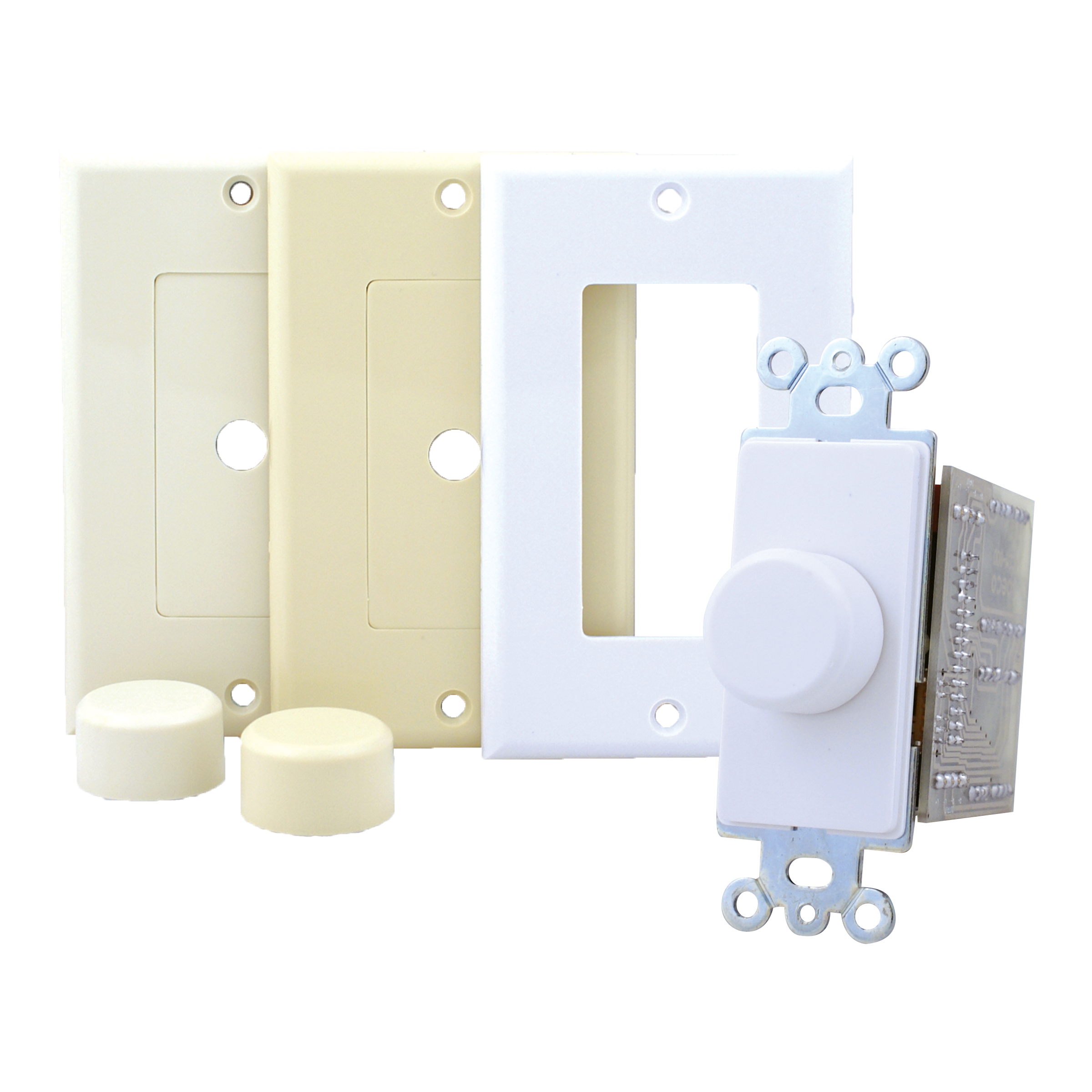

- • Includes three knob/plate color variations: white, ivory and almond.
- • High-quality auto-former design.
- • Supports 2 to 16 speaker pairs.
- • Switchable impedance matching for 2, 4, 8 or 16 pairs of 8 Ohm speakers.
- • Soft touch 12-step rotary attenuation.
Installation Notes
1.63˝ x 2.85˝ x 2.35˝ (42mm x 73mm x 60mm)
| Full Specifications | |
| Power Output | 80W |
| Impedance | Switchable 2, 4, 8 or 16 pairs of 8 Ohm speakers |
| Frequency Response | 20Hz to 20kHz |
| Model | IMP80D |
| Switchable impedance matching | 2x, 4x, 8x or 16x positions |
| Soft touch | 12-step attenuation |
| Power Handling | 80 Watts |
| Removable terminal blocks | accept up to 14-gauge wire |
| Mounting Dimensions (W x H x D) | 1.63˝ x 2.85˝ x 2.35˝ (42mm x 73mm x 60mm) |
