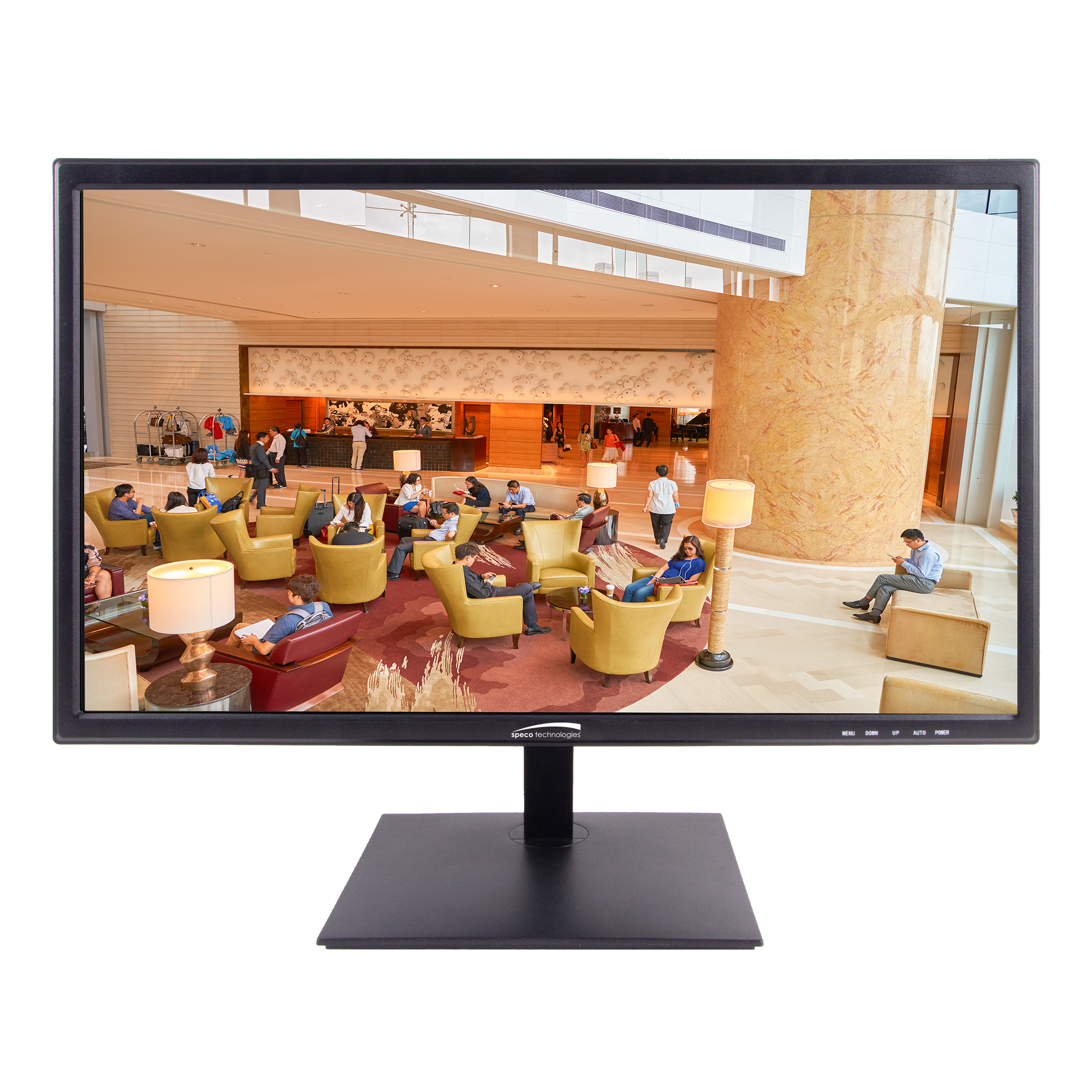

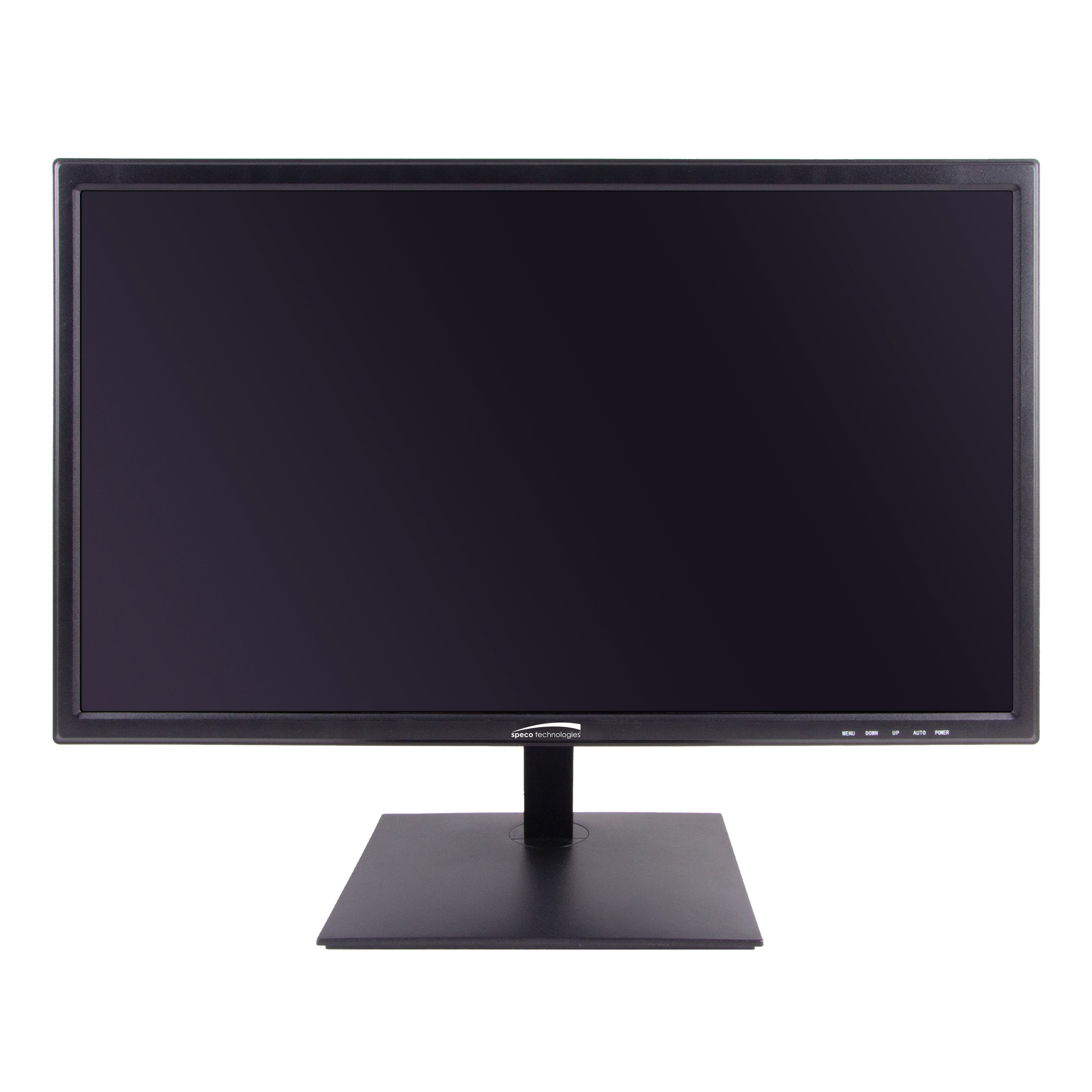

Product Overview
HDMI, VGA, BNC, 16:9 Display Mode 22” screen
Key Configuration
Model: M22BVH
Key Features
- • 1080p resolution.
- • 16:9 ratio display.
- • 1 HDMI video input.
- • 1 VGA input.
- • 2 BNC inputs.
Installation Notes
22"
| Monitor Specifications | |
| Screen Size | 22" |
| Active Display Area (mm) | 476.64mm (W) × 268.11mm (H) |
| Display Mode | 16:9 |
| LED Type | TFT-LED |
| Resolution | 1920 × 1080 |
| Display Color | 16.7M |
| Pixel Pitch (mm) | 0.248mm (H) × 0.248mm(V) |
| Brightness (nits) | 300cd/m2 |
| Contrast Ratio | 10000:1 |
| Viewing Angle | 178(H) / 178(V) |
| Response Time | 5ms |
| Backlight | LED |
| Input & Output | |
| HDMI 2.0 | 1 |
| VGA | 1 |
| BNC Input | 2 |
| BNC Output | 1 |
| Speaker | 2 × 3W (stereo) |
| Video | |
| Color System | PAL/NTSC/SECAM |
| OSD Control | Auto adjust, brightness, contrast, horizontal/vertical position, clock phase, color, language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power & Mount Way | |
| Power | DC12V, 50/60Hz |
| Working Temperature | -22°F to 185°F |
| Power Consumption | ≤25W |
| Menu | English / Chinese (other languages supported) |
| Mounting / Weight | Stand mount, VESA mount / 3.5kg |
| MTBF | 50000 hours |
