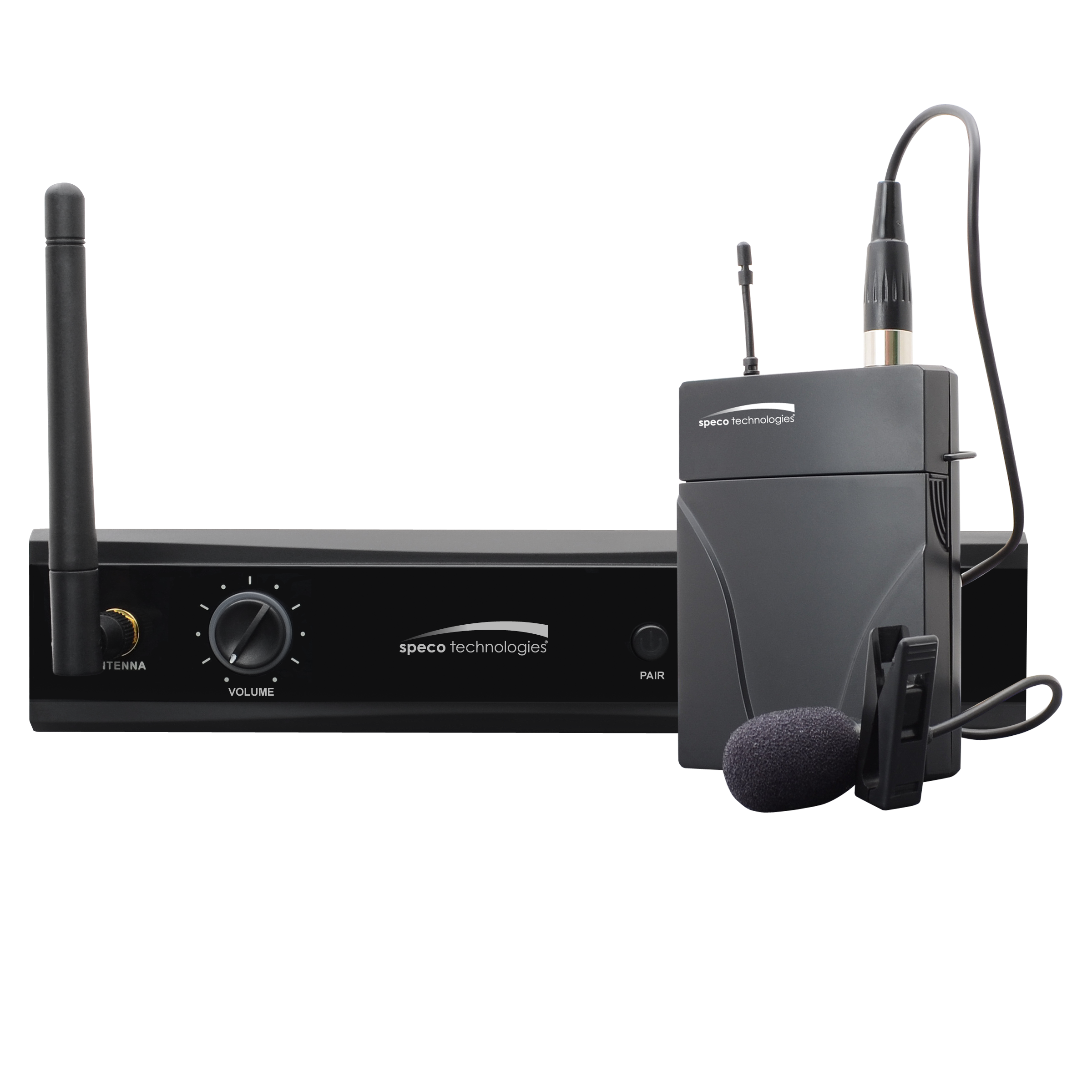

Speco - M24GLK - 2.4GHz Wireless Microphone Kit – Receiver + Bodypack
Part number:
Price:
Product Overview
• Bodypack transmitter comes with a lapel clip microphone • Headset microphone available for bodypack transmitter to allow more active use (order part# M24HS) • Intelligent frequency hopping to help avoid interference • Easy one-button setup • Recommended 50’ transmission range *Also available with handheld transmitter
Key Configuration
Model: M24GLK
| Full Specifications | |
| Model | M24GLK |
| Receiver Specifications | |
| Modulation | GFSK |
| Frequency | 2404 ~ 2476 MHz |
| Distortion THD | <0.05%@1kHz |
| RF Sensitivity | -78dBm |
| S/N | >85dB |
| Audio Output Level | 0dBu (770mV) |
| Power Supply | DC12V, 200mA (included) |
| Channels | 16 |
| Frequency Response | 20Hz ~ 18kHz, +/- 3dB |
| System Latency | 8ms |
| Transmitter Specifications | |
| Transmit Power | 8dBm (typical) |
| Consumption Current | <85mA (at 3V) |
| Usage Time | Approximately 20 hours |
| Bandwidth | 2Mhz |
