Speco - N128NR16TB - 128 Channel 4K H.265 NVR with Analytics with 16TB HDD
Part number:
Price:
Product Overview

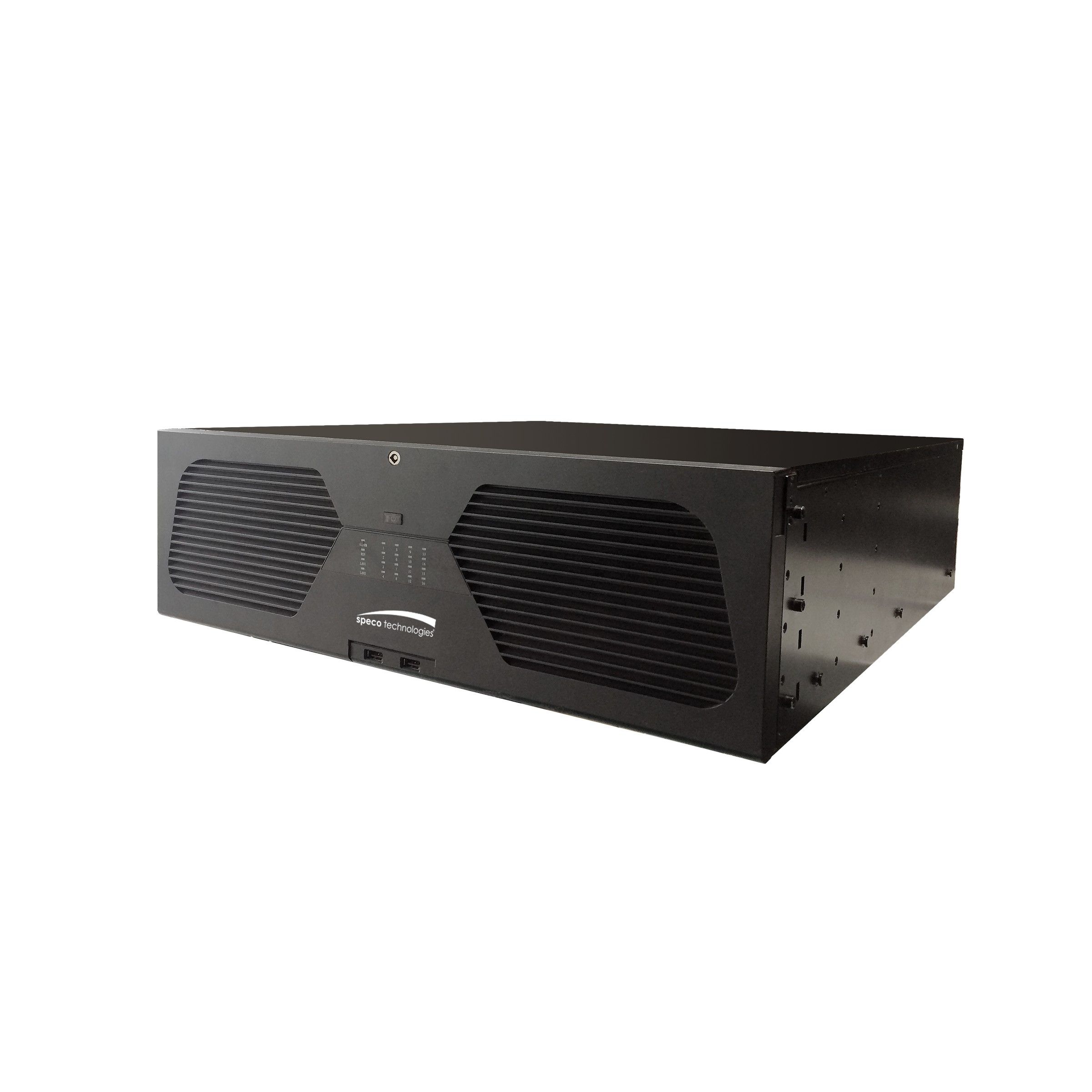

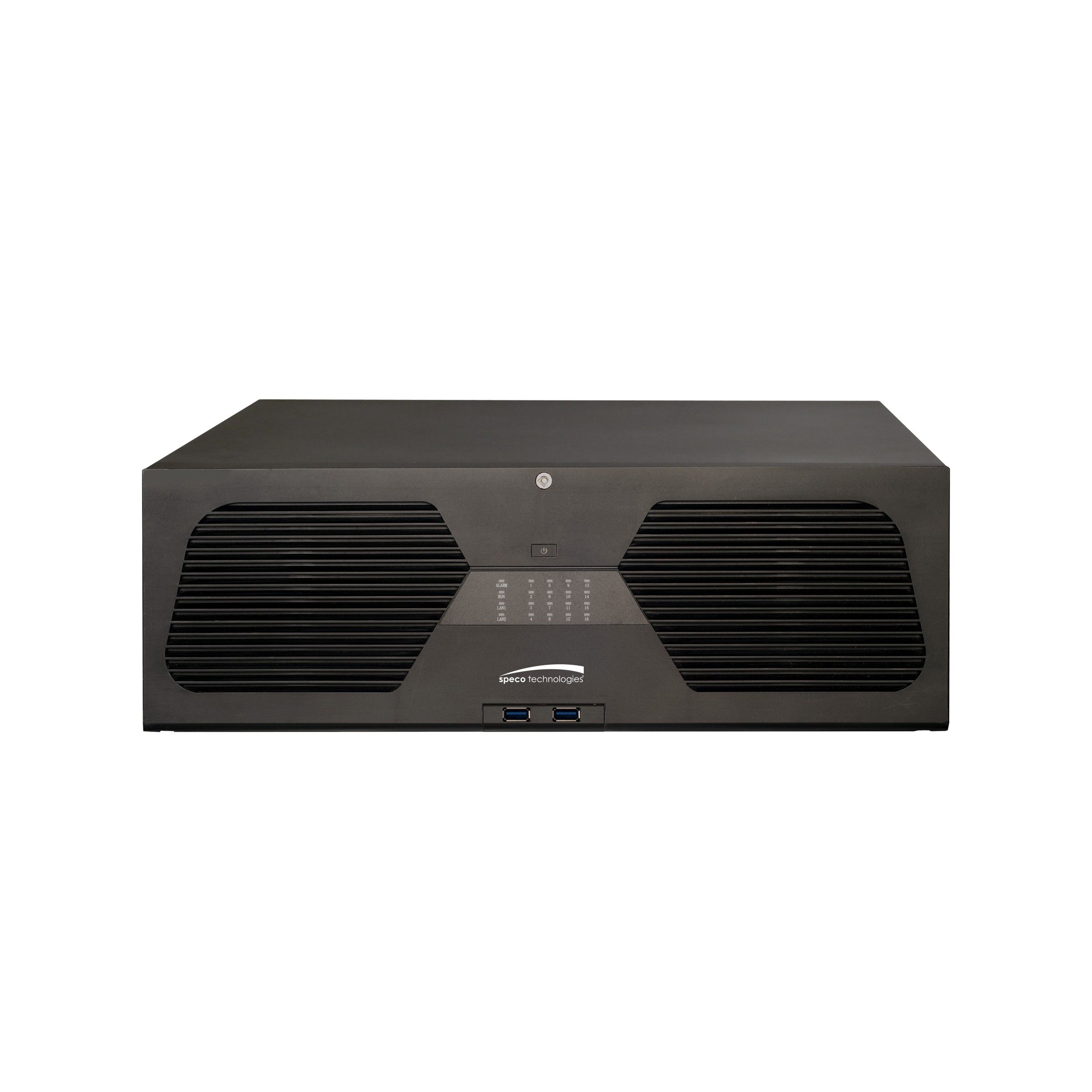

The Speco N128NR16TB is a versatile 128 Channel 4K H.265 NVR equipped with a 16TB HDD, offering exceptional video management capabilities alongside powerful built-in analytics at no additional cost. Speco’s N128NR is built to tackle applications with a high bandwidth in camera quantity and quality, supporting up to 20MP @ 30fps, along with a high storage capacity going up to 320TB.
Key Configuration
Model: N128NR16TB
Key Features
- • Human and Vehicle Detection help to eliminate false motion alarms.
- • License plate detection and recognition.
- • Object left behind and object removed.
- • Scene tampering alerts.
- • Target counting to help enforce population limits.
Installation Notes
437mm x 483mm x 143mm (17.2” x 19” x 5.6”)
| Specifications | |
| IP Channels | 128 Channels |
| Harddrive Size | 16TB |
| Protocols | speco Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Remote I/O Control, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P |
| Compression | H.264, H.265 |
| Bandwidth | 384Mbps |
| Operating temperature | 14°F to 122°F (-10°C to 50°C ) |
| Dimensions | 437mm x 483mm x 143mm (17.2” x 19” x 5.6”) |
| SATA | 16 |
| USB | Front: 1 (USB 2.0), Rear: 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Post-alarm Recording | Max. 10 minutes |
| Pre-alarm Recording | Max. 5 seconds |
| Audio | RCAx1 |
| Frame Rate/Camera | 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Remote I/O Control | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Video Output | 4K HDMI, VGA |
| Real-time Recording | Capture video at up to 8MP resolution (4K) at 30 frames per second for stunning clarity. |
| 16 SATA Ports | Provide the capability to support up to 256TB of storage for long-term video retention. |
| EZ Copy | Easily copy recordings onto a USB flash drive for convenient export. |
| Easy Video Exporting | Quickly export video files using USB drives for sharing and review. |
| Specification Sheet | |
| Video Input Max. IP Channels | 128 |
| Video Input IP Camera | H.264/H.265 Auto Detection (Max 8MP) |
| Video Output Main Monitor | HDMI (Max. 8K) and VGA (Max. Full HD) |
| Video Output Sub Monitor | 3 HDMI |
| Audio Network Input | 128-CH IPC audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | Any Resolution @ 30fps |
| Recording Recording Mode | AI/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max 16-CH |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Search & Playback Playback Functions | Play, Pause, FF, REW, Digital zoom, etc. |
| Backup Media | USB drive, USB Portable HDD, Network |
| Backup Format | JPG, AVI, ZIP (Player+Proprietary Data) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 16 |
| Storage USB Front | 2 (USB 2.0) |
| Storage USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input | 24-CH local |
| Alarm Output | 8-CH local |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 768Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Dual Network Card | Yes |
| Network LAN 1 | Recorder |
| Network LAN 2 | Cameras |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| Network Access Web Viewer | Google Chrome®, Microsoft Edge®, Safari®, FireFox®, Windows® IE |
| Network Access VMS | SecureGuard®, Speco Blue VMS |
| Network Access Max. User Access | Max 128 users online (web client) |
| Smart Analytics People/Vehicle Detection | Line Crossing and Intrusion |
| Smart Analytics Facial Recognition | Face Search up to 128-CH / Face Recognition Trigger Event up to 16-CH |
| Smart Analytics LPR | Yes |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewarping® S.M.A.R.T. (Self-Monitoring, Analysis, & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Power Power Consumption | ≤ 15W (without HDD) |
