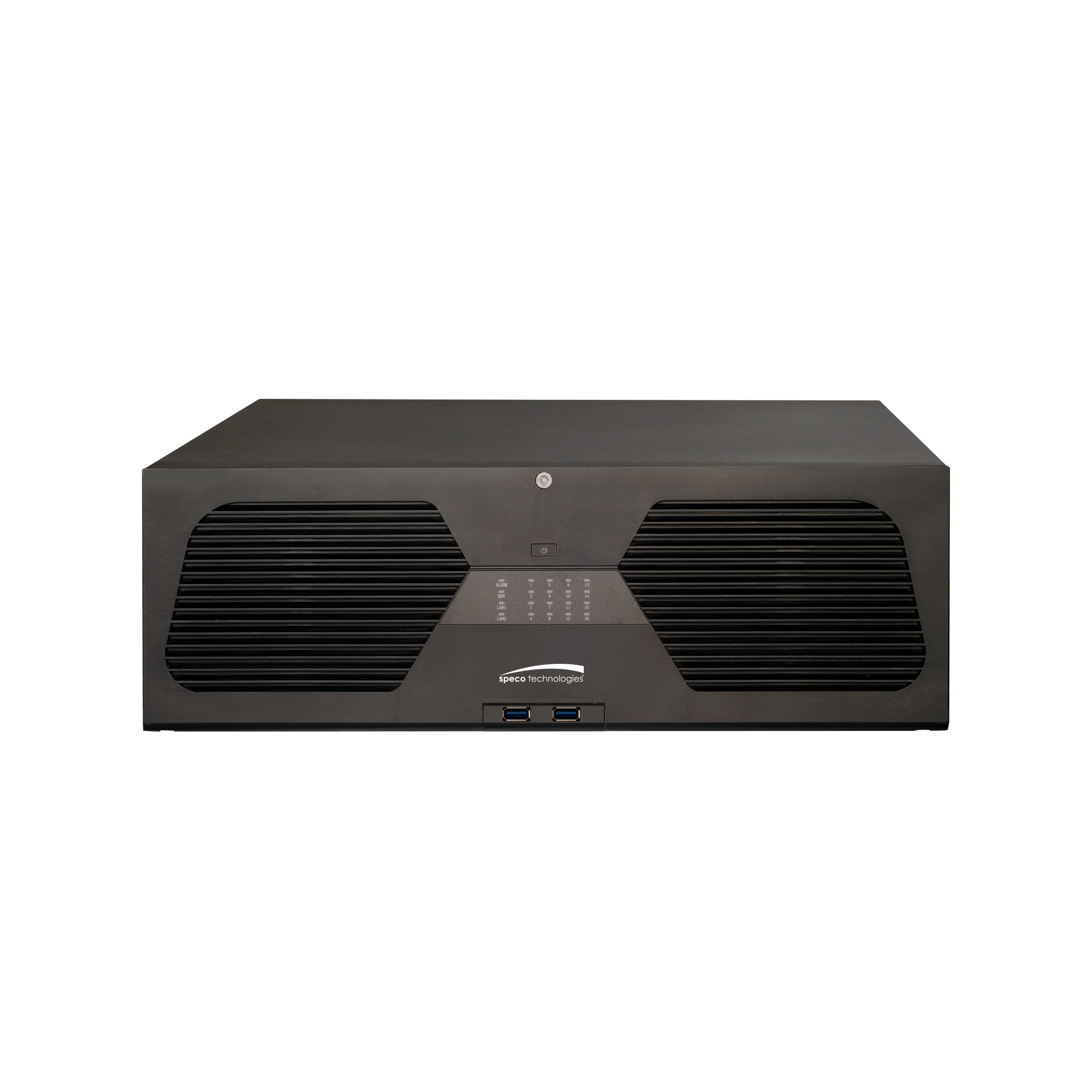

Speco - N128NR192TB - 128 Channel 4K H.265 NVR with Analytics with 192TB HDD
Part number:
Price:
Product Overview
The N128NR recorder in conjunction with specific Speco Technologies analytic cameras, offers a suite of intelligent analytics at NO extra charge and with NO Licensing.
Key Configuration
Model: N128NR192TB
Key Features
- • Human and Vehicle Detection help to eliminate false motion alarms.
- • License plate detection and recognition.
- • Object left behind and object removed.
- • Scene tampering alerts.
- • Target counting to help enforce population limits.
Installation Notes
437mm x 483mm x 143mm (17.2" x 19" x 5.6")
| Full Specifications | |
| Product Name | Speco N128NR192TB |
| Channels | 128 |
| Video Resolution | Up to 8MP (4K) at 30fps |
| Storage Capacity | Up to 256TB using 16 SATA ports |
| Compression Type | H.265 |
| Outputs | 4K HDMI, VGA |
| Remote Access | Web browser, mobile app |
| Analytics Features | Human/Vehicle Detection, License Plate Recognition, Object Detection |

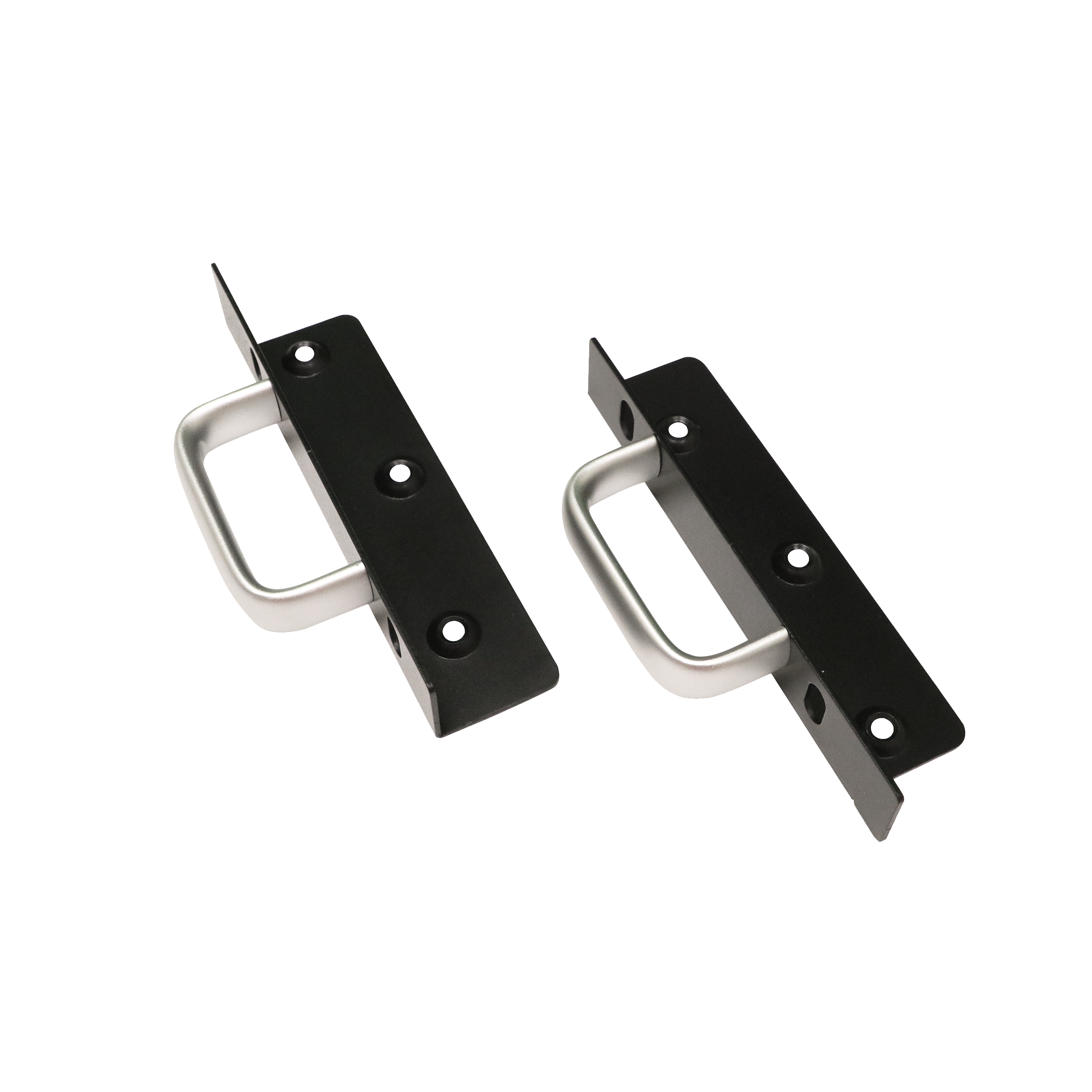

| Included Accessories | Rack ears, remote control |
| Video | |
| Max. IP Channels | 128 |
| IP Camera | H.264/H.265 Auto Detection (Max 8MP) |
| Output | |
| Main Monitor | HDMI (Max. 8K) and VGA (Max. Full HD) |
| Sub Monitor | 3 HDMI |
| Audio | |
| Network Input | 128-CH IPC audio input |
| 2-way Audio | RCAx1 |
| Local Output | RCAx1 |
| Recording | |
| Encoding Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Codec | H.264/H.265 (Auto Detection) |
| Max Frame Rate per Channel | Any Resolution @ 30fps |
| Recording Mode | AI/Continuous/Motion/Sensor/Schedule/Manual |
| Pre-Recording | Max. 5 seconds |
| Post Recording | Max. 10 minutes |
| Search & Playback | |
| Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Simultaneous Playback | Max 16-CH |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Playback Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/DI/CIF |
| Playback Functions | Play, Pause, FF, REW, Digital zoom, etc. |
| Backup | |
| Media | USB drive, USB Portable HDD, Network |
| Format | JPG, AVI, ZIP (Player+Proprietary Data) |
| Storage | |
| HDD Max Capacity of each HDD | 20TB |
| HDD Internal SATA ports | 16 |
| USB Front | 2 (USB 2.0) |
| USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Alarm | |
| Mode | Manual, Sensor, Motion, Exception, AI |
| Input | 24-CH local |
| Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F | |
| Input Method | IR Remote, Mouse |
| Network | |
| Network Bandwidth | 768Mbps |
| P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Dual Network Card | Yes |
| LAN 1 | Recorder |
| LAN 2 | Cameras |
| Network Access | |
| Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| Web Viewer | Google Chrome®, Microsoft Edge®, Safari®, FireFox®, Windows® IE |
| VMS | SecureGuard®, Speco Blue VMS |
| Max. User Access | Max 128 users online (web client) |
| Smart Analytics | |
| People/Vehicle Detection | Line Crossing and Intrusion |
| Facial Recognition | Face Search up to 128-CH / Face Recognition Trigger Event up to 16-CH |
| LPR | Yes |
| Features | |
| Digital Zoom | Live and Playback, Free Size |
| Fisheye Dewarping | Yes |
| S.M.A.R.T | Temperature, Power On Time, Bad Sectors and Health |
| Power | |
| Power Consumption | ≤ 15W (without HDD) |
| Environment | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions | |
| Unit | 437mm x 483mm x 143mm (17.2" x 19" x 5.6") |
