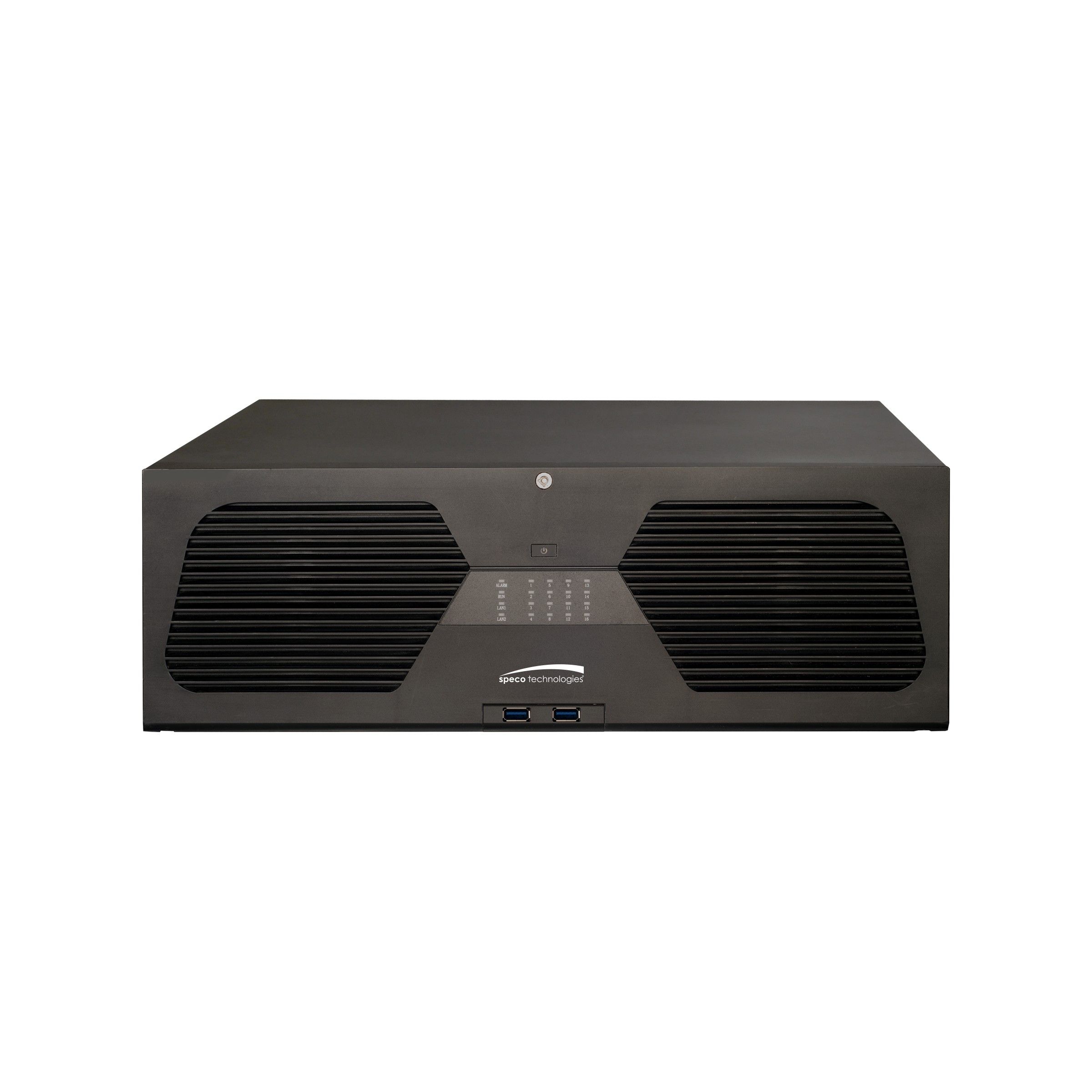

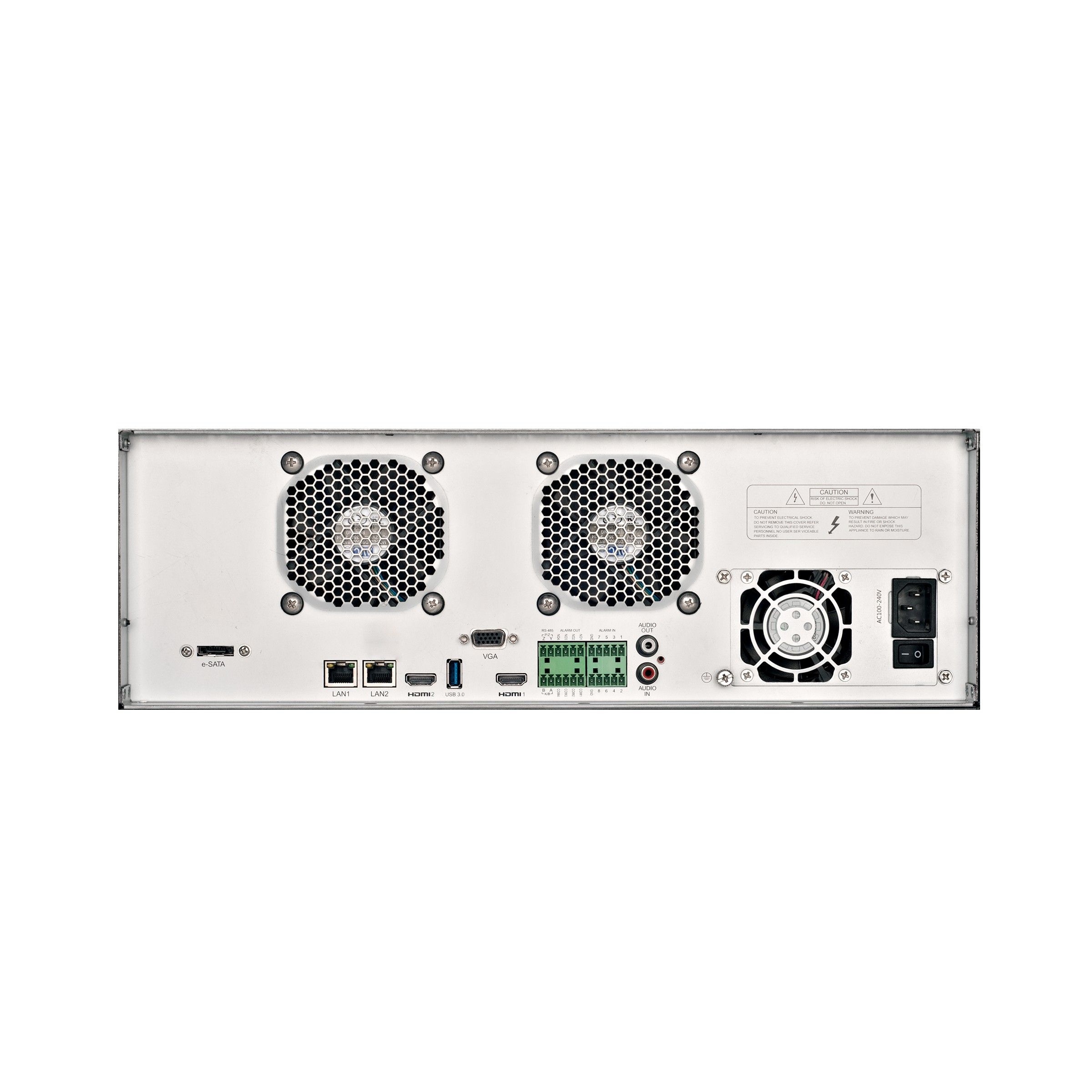

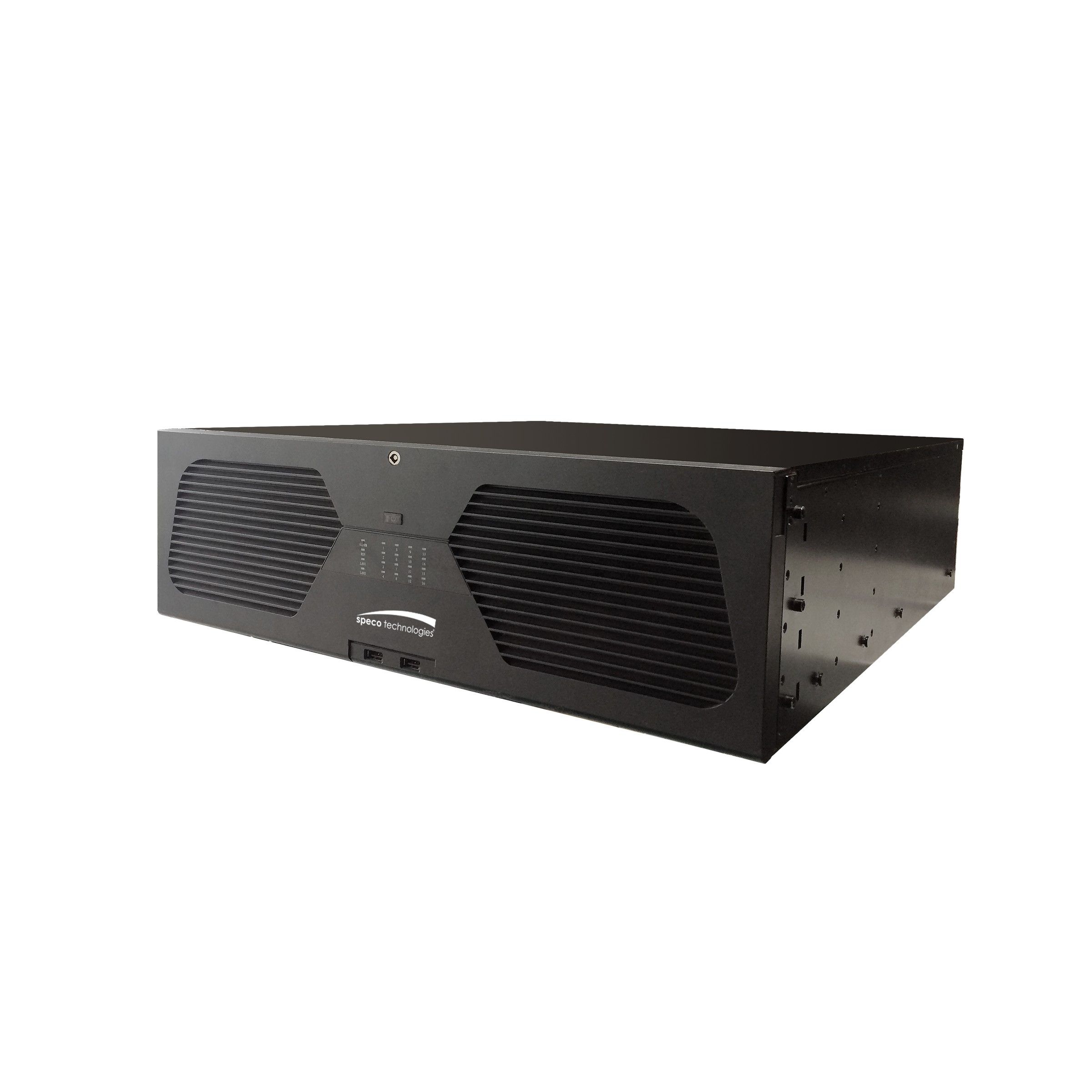

Speco - N128NR20TB - 128 Channel 4K H.265 NVR with Analytics with 20TB HDD
Part number:
Price:
Product Overview
The Speco N128NR20TB is a cutting-edge 128 Channel 4K H.265 NVR designed to seamlessly integrate with Speco Technologies analytic cameras. This advanced recorder not only supports an impressive 20TB HDD storage capacity but also offers powerful analytics features at no extra cost or licensing fees, ensuring maximum efficiency and security for your surveillance needs.
Key Configuration
Model: N128NR20TB
Key Features
- • Human and Vehicle Detection help to eliminate false motion alarms.
- • License plate detection and recognition.
- • Object left behind and object removed.
- • Scene tampering alerts.
- • Target counting to help enforce population limits.
Installation Notes
437mm x 483mm x 143mm (17.2” x 19” x 5.6”)
| Specifications | |
| IP Channels | 128 Channels |
| Harddrive Size | 20TB |
| Protocols | speco Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Remote I/O Control, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P |
| Compression | H.264, H.265 |
| Bandwidth | 384Mbps |
| Operating temperature | 14°F to 122°F (-10°C to 50°C ) |
| Dimensions | 437mm x 483mm x 143mm (17.2” x 19” x 5.6”) |
| SATA | 16 |
| USB | Front: 1 (USB 2.0), Rear: 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Post-alarm Recording | Max. 10 minutes |
| Pre-alarm Recording | Max. 5 seconds |
| Audio | RCAx1 |
| Frame Rate/Camera | 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Remote I/O Control | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Storage Capacity | 20TB HDD |
| Video Resolution | Up to 8MP (4K) |
| Compression Technology | H.265 |
| HDMI Output | 4K HDMI out |
| VGA Output | 1 VGA monitor output |
| SATA Ports | 16 SATA ports (up to 256TB) |
| Power Supply | AC 100-240V, 50/60Hz |
| Real-time 4K Recording | Captures high-resolution video at 30fps, ensuring crystal-clear imaging. |
| Multiple Output Options | Equipped with 4K HDMI output and VGA for diverse display options. |
| Expandable Storage | 16 SATA ports supporting up to 256TB of storage, providing scalability for growing surveillance needs. |
| EZ Record and Copy | Quickly configure recording settings and copy footage onto USB drives with ease. |
| Free DDNS Services | Offers free US-based Dynamic DNS and P2P services for simplified remote access. |
| Specification Sheet | |
| Video Input Max. IP Channels | 128 |
| Video Input IP Camera | H.264/H.265 Auto Detection (Max 8MP) |
| Video Output Main Monitor | HDMI (Max. 8K) and VGA (Max. Full HD) |
| Video Output Sub Monitor | 3 HDMI |
| Audio Network Input | 128-CH IPC audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | Any Resolution @ 30fps |
| Recording Recording Mode | AI/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max 16-CH |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Search & Playback Playback Functions | Play, Pause, FF, REW, Digital zoom, etc. |
| Backup Media | USB drive, USB Portable HDD, Network |
| Backup Format | JPG, AVI, ZIP (Player+Proprietary Data) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 16 |
| Storage USB Front | 2 (USB 2.0) |
| Storage USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input | 24-CH local |
| Alarm Output | 8-CH local |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 768Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Dual Network Card | Yes |
| Network LAN 1 | Recorder |
| Network LAN 2 | Cameras |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| Network Access Web Viewer | Google Chrome®, Microsoft Edge®, Safari®, FireFox®, Windows® IE |
| Network Access VMS | SecureGuard®, Speco Blue VMS |
| Network Access Max. User Access | Max 128 users online (web client) |
| Smart Analytics People/Vehicle Detection | Line Crossing and Intrusion |
| Smart Analytics Facial Recognition | Face Search up to 128-CH / Face Recognition Trigger Event up to 16-CH |
| Smart Analytics LPR | Yes |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewarping® S.M.A.R.T. (Self-Monitoring, Analysis, & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Power Power Consumption | ≤ 15W (without HDD) |
