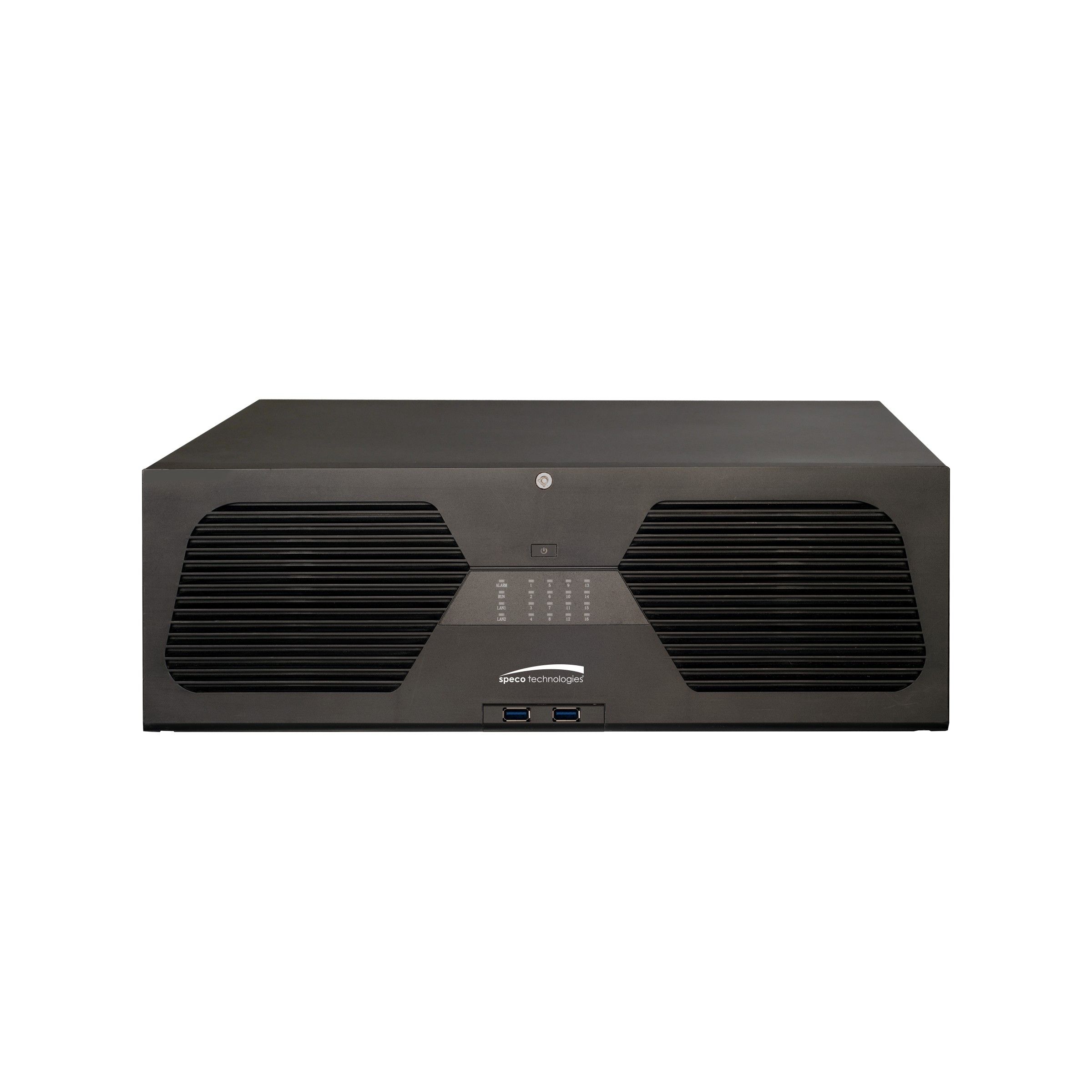

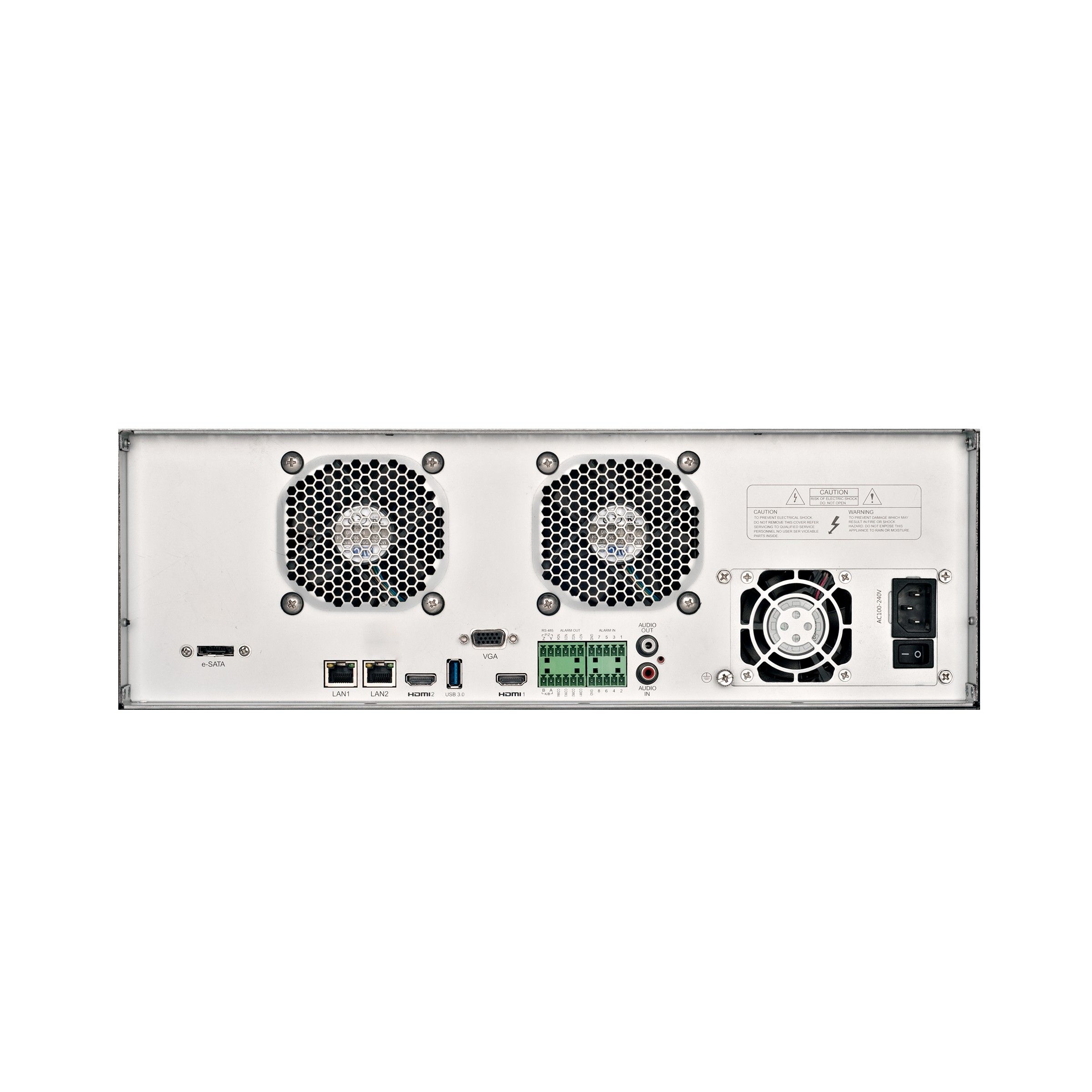

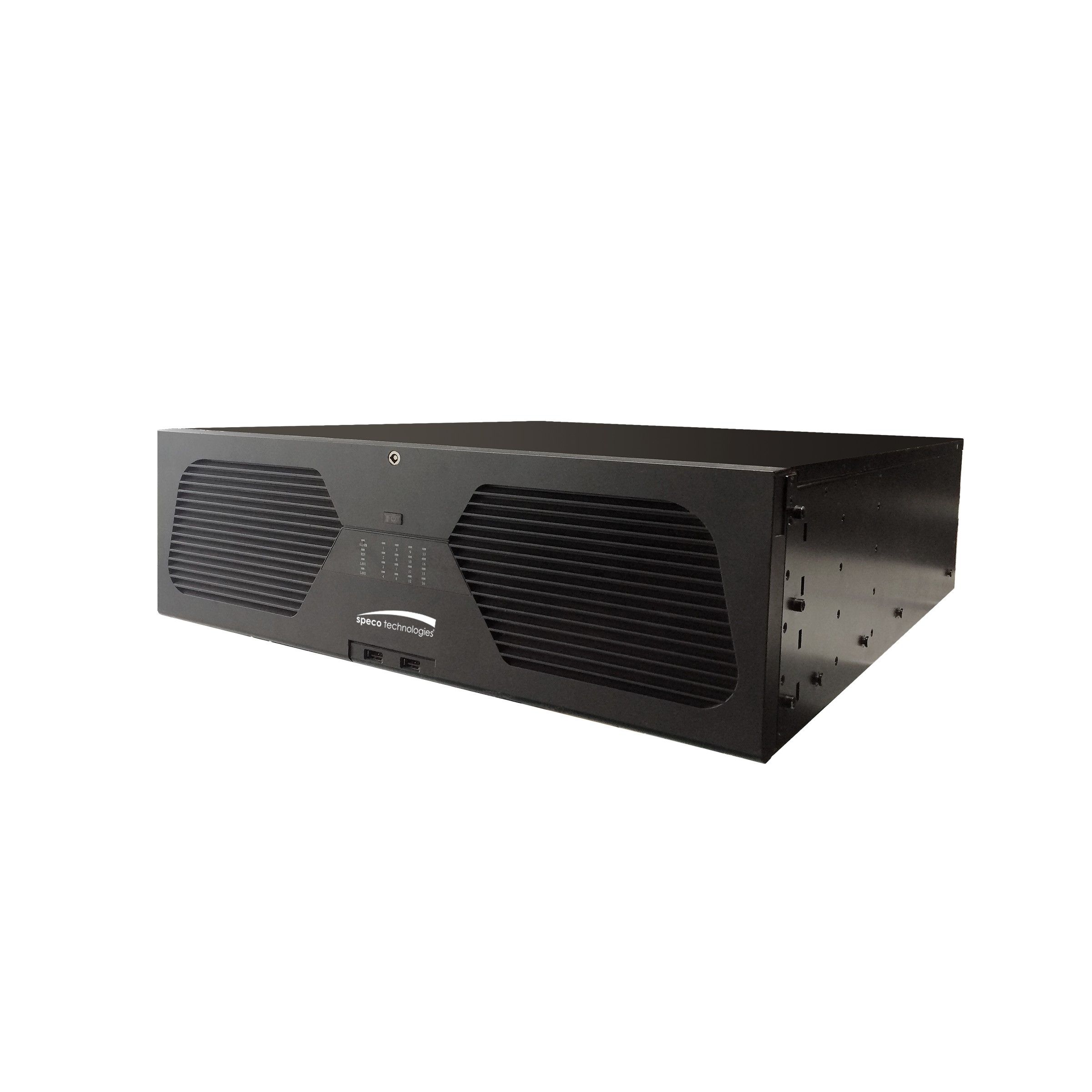

Speco - N128NR256TB - 128 Channel 4K H.265 NVR with Analytics with 256TB HDD
Part number:
Price:
Product Overview
The Speco N128NR256TB 128 Channel 4K H.265 NVR with Analytics seamlessly integrates with Speco Technologies analytic cameras, providing intelligent analytics at no extra charge and without licensing fees. It features advanced capabilities like human and vehicle detection, smart search, and robust storage options for enhanced security monitoring.
Key Configuration
Model: N128NR56TB | 128 Channels | 4K (8MP) Resolution | H.265 Compression | 256TB HDD Included
Key Features
- • Human and Vehicle Detection.
- • License Plate Detection.
- • Object Left Behind/Removed Alerts.
- • Scene Tampering Alerts.
- • Target Counting.
Installation Notes
437mm x 483mm x 143mm (17.2” x 19” x 5.6”)
| Specifications | |
| IP Channels | 128 Channels |
| Harddrive Size | 256TB |
| Protocols | speco Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Remote I/O Control, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P |
| Compression | H.264, H.265 |
| Bandwidth | 384Mbps |
| Operating temperature | 14°F to 122°F (-10°C to 50°C ) |
| Dimensions | 437mm x 483mm x 143mm (17.2” x 19” x 5.6”) |
| SATA | 16 |
| USB | Front: 1 (USB 2.0), Rear: 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Post-alarm Recording | Max. 10 minutes |
| Pre-alarm Recording | Max. 5 seconds |
| Audio | RCAx1 |
| Frame Rate/Camera | 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Remote I/O Control | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Storage | 24TB HDD Included |
| Output | 4K HDMI, VGA |
| SATA Ports | 16 ports, up to 256TB |
| Real-time 4K Recording | Captures high-definition footage at 30 frames per second for clear and detailed video. |
| Multiple Output Options | Features 4K HDMI and VGA outputs for versatile monitoring setups. |
| 16 SATA Ports | Supports up to 256TB of storage for extensive footage retention. |
| EZ Copy | Easily transfers video files to USB flash drives for sharing and archiving. |
| Easy Video Export | Simplifies sharing and exporting videos via USB. |
| Specification Sheet | |
| Model | N128NR |
| Video Input | Max. IP Channels |
| Video Output | Main Monitor HDMI (Max. 8K) and VGA (Max. Full HD) |
| Audio Network Input | 128-CH IPC audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | Any Resolution @ 30fps |
| Recording Recording Mode | AI/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max 16-CH |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Search & Playback Playback Functions | Play, Pause, FF, REW, Digital zoom, etc. |
| Backup Media | USB drive, USB Portable HDD, Network |
| Backup Format | JPG, AVI, ZIP (Player+Proprietary Data) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 16 |
| Storage USB Front | 2 (USB 2.0) |
| Storage USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input | 24-CH local |
| Alarm Output | 8-CH local |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 768Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Dual Network Card | Yes |
| Network LAN 1 | Recorder |
| Network LAN 2 | Cameras |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| Network Access Web Viewer | Google Chrome®, Microsoft Edge®, Safari®, FireFox®, Windows® IE |
| Network Access VMS | SecureGuard®, Speco Blue VMS |
| Network Access Max. User Access | Max 128 users online (web client) |
| Smart Analytics People/Vehicle Detection | Line Crossing and Intrusion |
| Smart Analytics Facial Recognition | Face Search up to 128-CH / Face Recognition Trigger Event up to 16-CH |
| Smart Analytics LPR | Yes |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewarping® S.M.A.R.T. (Self-Monitoring, Analysis, & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Power Power Consumption | ≤ 15W (without HDD) |
