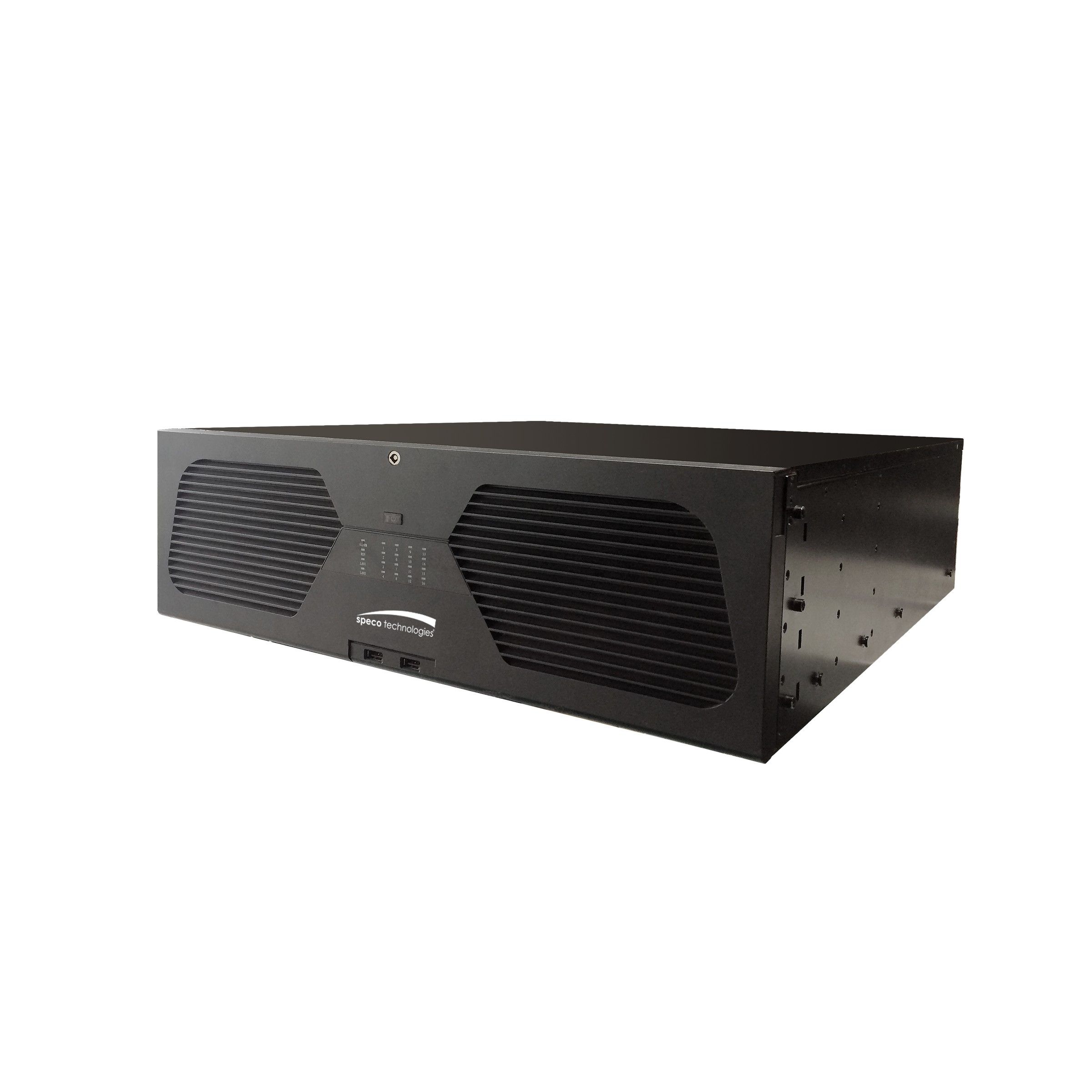

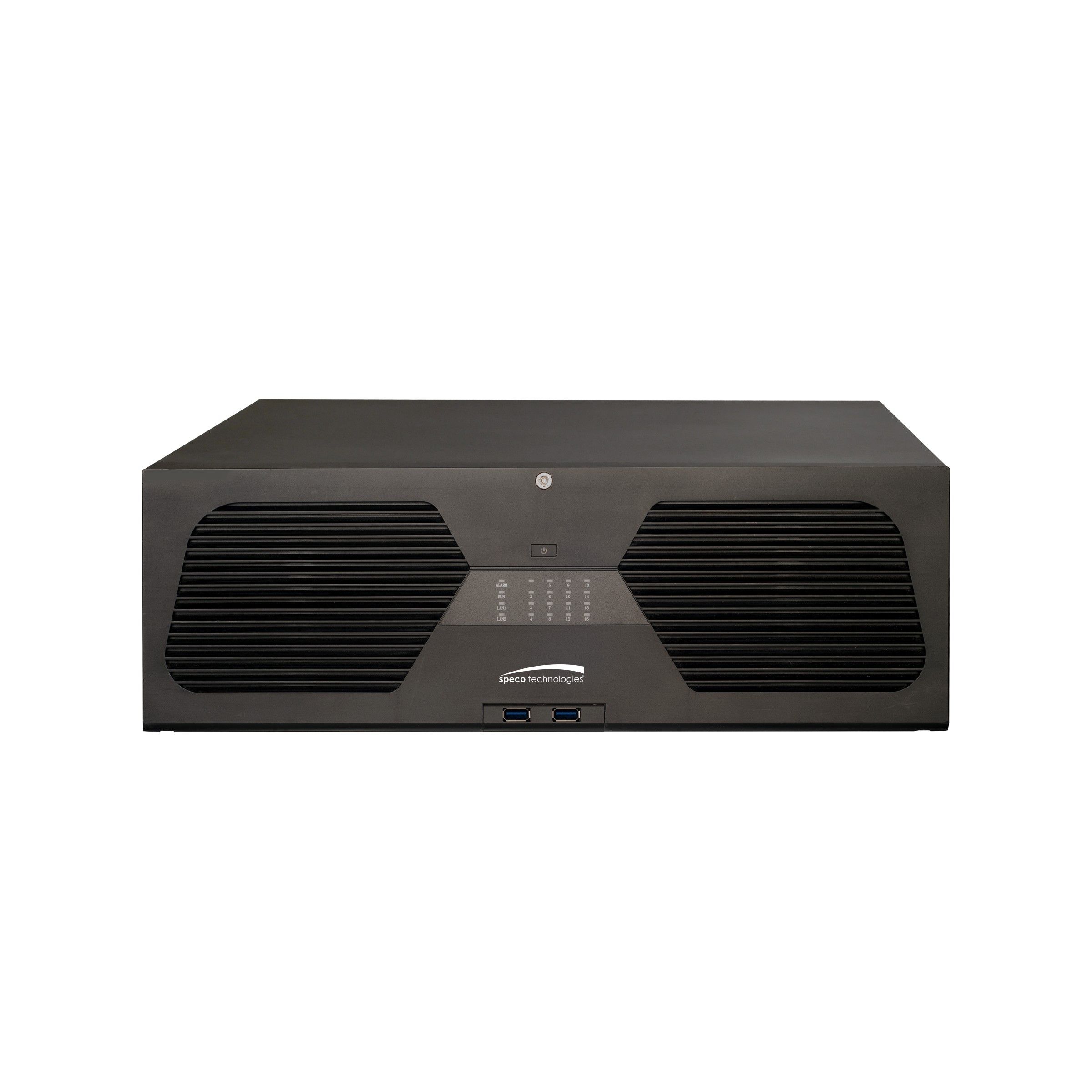

Speco - N128NR30TB - 128 Channel 4K H.265 NVR with Analytics with 30TB HDD
Part number:
Price:
Product Overview
The N128NR recorder from Speco Technologies, equipped with a massive 30TB HDD, delivers unmatched 4K resolution and advanced analytics for smart surveillance. By utilizing intelligent features such as human and vehicle detection, this NVR enhances security while reducing false alarms, all without additional licensing fees.
Key Configuration
Model: N128NR30TB
Key Features
- • Human and Vehicle Detection helps to eliminate false motion alarms.
- • License plate detection and recognition.
- • Object left behind and object removed.
- • Scene tampering alerts.
- • Target counting to help enforce population limits.
Installation Notes
437mm x 483mm x 143mm (17.2” x 19” x 5.6”)
| Specifications | |
| IP Channels | 128 Channels |
| Harddrive Size | 30TB |
| Protocols | speco Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Remote I/O Control, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P |
| Compression | H.264, H.265 |
| Bandwidth | 384Mbps |
| Operating temperature | 14°F to 122°F (-10°C to 50°C ) |
| Dimensions | 437mm x 483mm x 143mm (17.2” x 19” x 5.6”) |
| SATA | 16 |
| USB | Front: 1 (USB 2.0), Rear: 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Post-alarm Recording | Max. 10 minutes |
| Pre-alarm Recording | Max. 5 seconds |
| Audio | RCAx1 |
| Frame Rate/Camera | 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Remote I/O Control | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Storage | 30TB HDD (Expandable to 256TB) |
| Outputs | 4K HDMI, VGA |
| Real-Time Recording | Captures video up to 8MP resolution (4K) at 30fps for superior clarity. |
| Multiple Output Options | Offers 4K HDMI out and one VGA monitor output for versatile display options. |
| Extensive Storage Capability | Features 16 SATA ports for up to 256TB of total storage. |
| EZ Copy | Allows for easy content duplication to USB flash drives. |
| Easy Video Exporting | Facilitates the quick export of video via USB. |
| Specification Sheet | |
| Model | N128NR |
| Video Input | Max. IP Channels |
| Video Output | Main Monitor HDMI (Max. 8K) and VGA (Max. Full HD) |
| Audio Network Input | 128-CH IPC audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | Any Resolution @ 30fps |
| Recording Recording Mode | AI/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max 16-CH |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Search & Playback Playback Functions | Play, Pause, FF, REW, Digital zoom, etc. |
| Backup Media | USB drive, USB Portable HDD, Network |
| Backup Format | JPG, AVI, ZIP (Player+Proprietary Data) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 16 |
| Storage USB Front | 2 (USB 2.0) |
| Storage USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input | 24-CH local |
| Alarm Output | 8-CH local |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 768Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Dual Network Card | Yes |
| Network LAN 1 | Recorder |
| Network LAN 2 | Cameras |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| Network Access Web Viewer | Google Chrome®, Microsoft Edge®, Safari®, FireFox®, Windows® IE |
| Network Access VMS | SecureGuard®, Speco Blue VMS |
| Network Access Max. User Access | Max 128 users online (web client) |
| Smart Analytics People/Vehicle Detection | Line Crossing and Intrusion |
| Smart Analytics Facial Recognition | Face Search up to 128-CH / Face Recognition Trigger Event up to 16-CH |
| Smart Analytics LPR | Yes |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewarping® S.M.A.R.T. (Self-Monitoring, Analysis, & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Power Power Consumption | ≤ 15W (without HDD) |
Name
Description
Size
Downloads
File
Specification Sheet
1.2mb
File
Quick Start Guide
1.3mb
File
User Manual
4.6mb
